- NINJA® ZX™-6R
Chassis Electrical Equipment

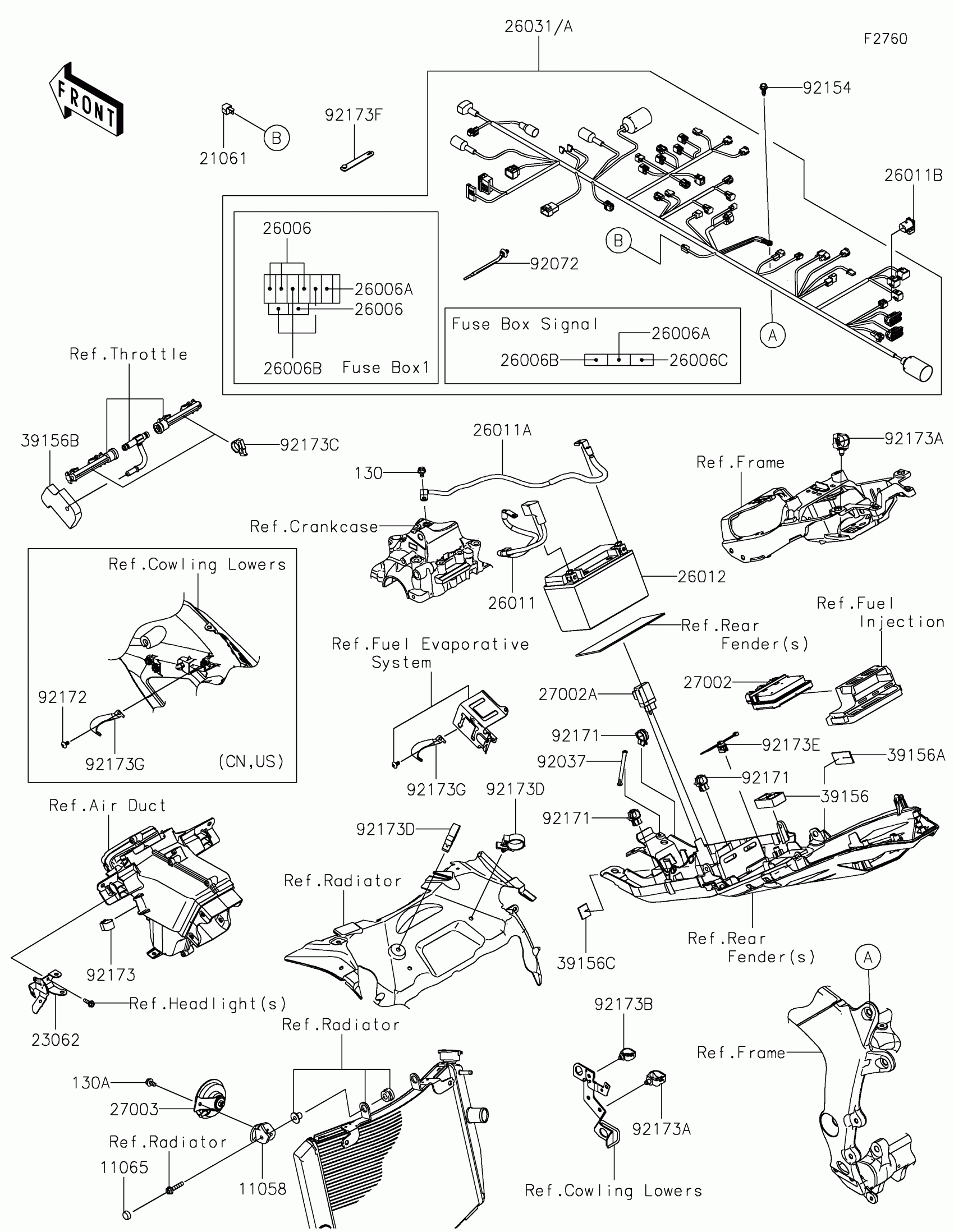

Kawasaki NINJA® ZX™-6R Chassis Electrical Equipment Diagram
#
11058
BRACKET,HORN
11058-0458
$19.85
11065
CAP,BOLT
11065-0752
$2.30
21061
RECTIFIER
21061-1003
$29.60
23062
BRACKET-COMP
23062-1420
$13.50
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,2A,GRAY
26006-0052
$6.57
26006B
FUSE,MINI BLADE,7.5A,BROWN
26006-0055
$6.57
26006C
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,BATTERY(+)
26011-1857
$56.12
26011A
WIRE-LEAD,BATTERY(-)
26011-1859
$29.34
26011B
WIRE-LEAD,DIAG CONNECTOR
26011-1901
$37.01
26012
BATTERY,YTX9-BS,12V 8AH
26012-1524
$142.54
26031
HARNESS,MAIN
26031-3982
$1,184.49
26031A
HARNESS,MAIN
26031-3983
$1,184.49
27002
RELAY-ASSY
27002-0061
$167.87
27002A
RELAY-ASSY,SIGNAL LAMP
27002-0068
$83.36
27003
HORN
27003-0167
$70.00
39156
PAD,32X52X15
39156-2146
$13.10
39156A
PAD,50X22X2
39156-2838
$6.46
39156B
PAD,T15
39156-2867
$15.38
39156C
PAD,22X20X2
39156-2868
$1.59
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92072
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92154
BOLT,FLANGED,6X16
92154-0551
$1.63
92171
CLAMP,EDGE CLIP
92171-1722
$8.05
92172
SCREW,TAPPING,5X10
92172-0262
$1.34
92173
CLAMP,CLIP
92173-0127
$15.62
92173A
CLAMP
92173-0861
$3.02
92173B
CLAMP,HOLDER CLIP
92173-0868
$3.02
92173C
CLAMP,SNAPPER
92173-0970
$4.72
92173D
CLAMP,CABLE,28MM
92173-1062
$3.72
92173E
CLAMP,EDGE CLIP CABLE,L=200
92173-1896
$6.90
92173F
CLAMP
92173-2194
$1.83
92173G
CLAMP
92173-2643
$6.61
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X10
130CA0610
$1.69
