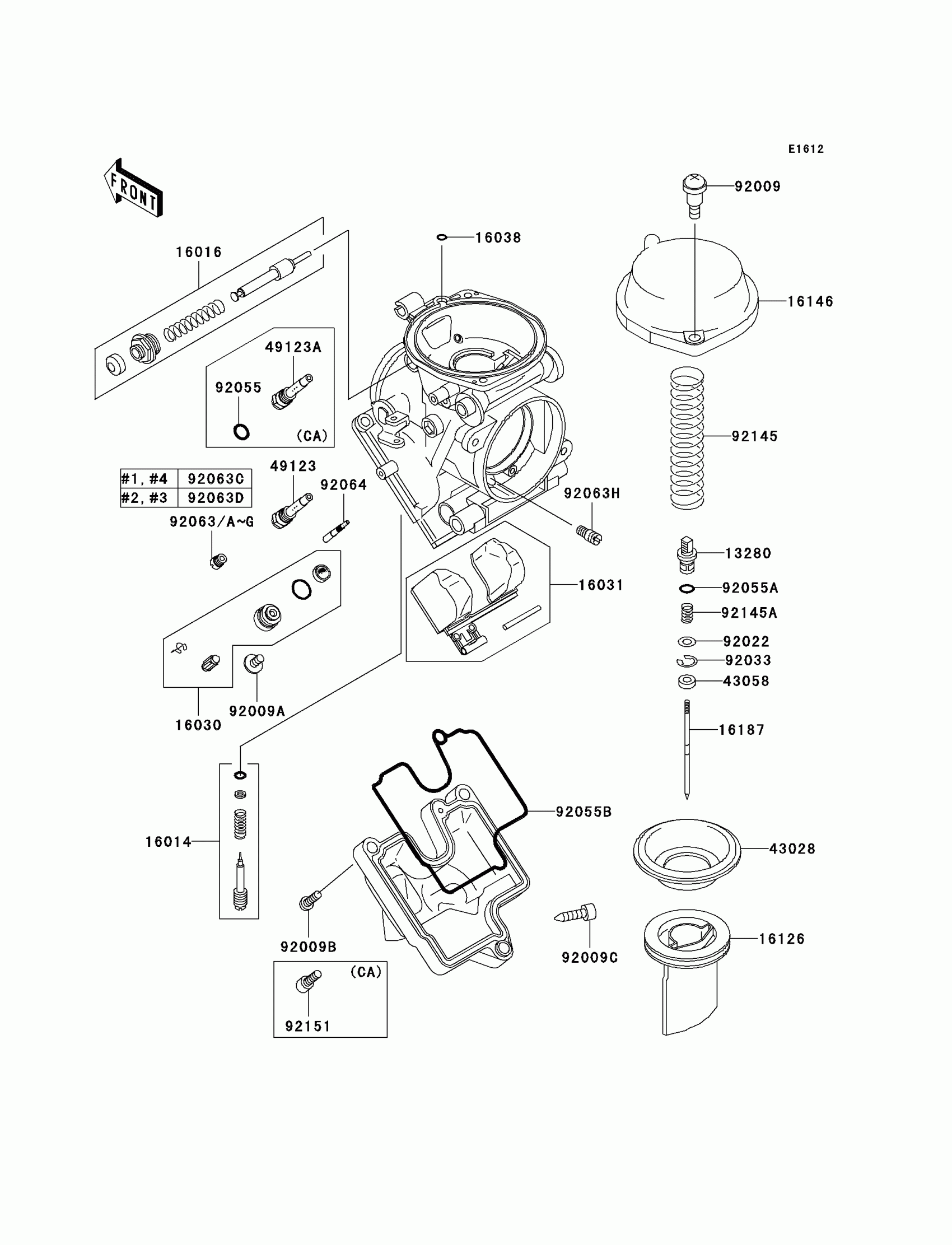

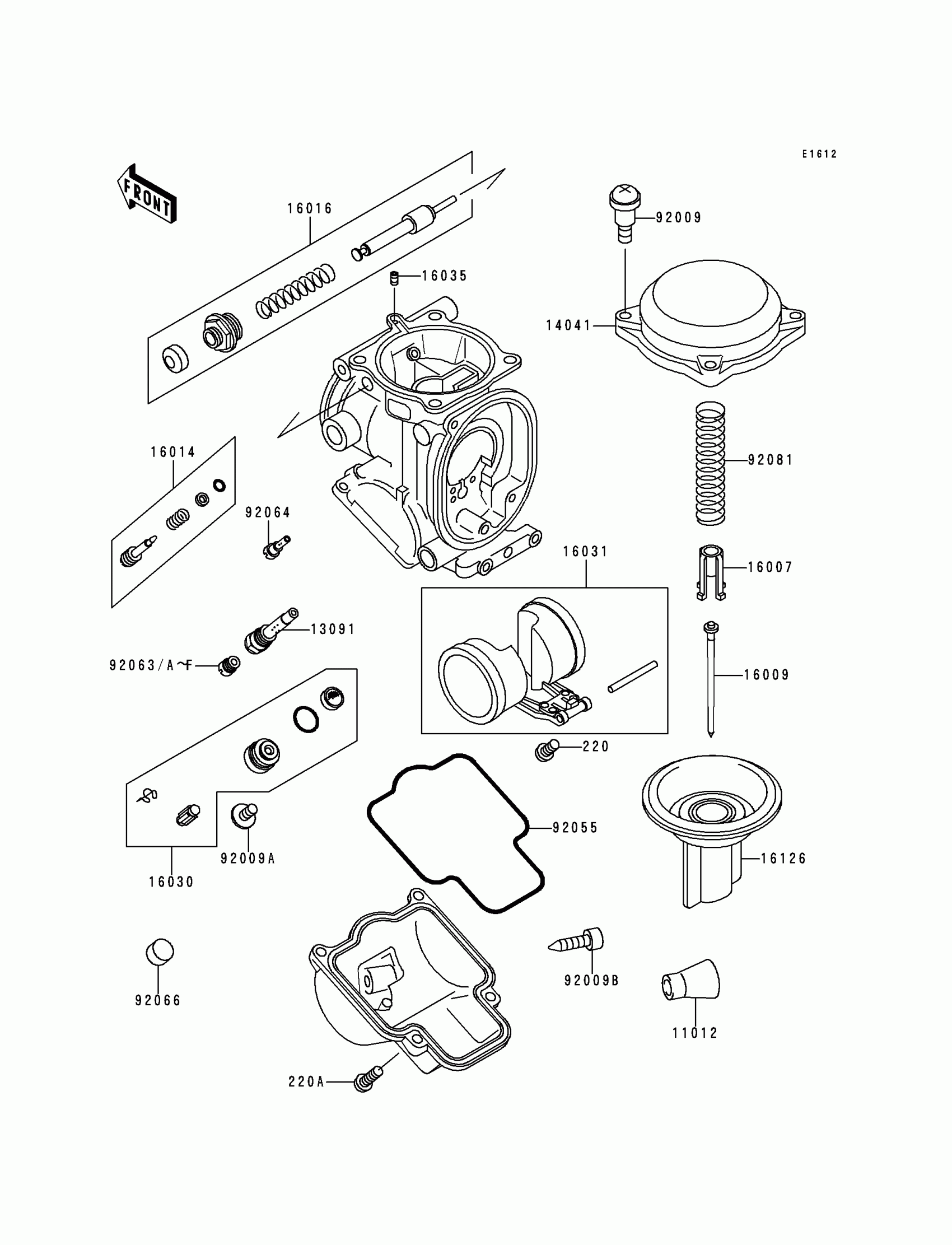

Kawasaki Ninja® ZX™-6R Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220D0408

$0.63

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51

11012

CAP,DRAIN SCREW

11012-1675

$8.93

13091

HOLDER,NEEDLE JET

13091-1924

Unavailable

14041

CAP-CHAMBER,MIXING

14041-1091

$60.62

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009

NEEDLE-JET,N1VV

16009-1863

Unavailable

16014

SCREW-PILOT AIR

16014-1091

$14.90

16016

PLUNGER,STARTER

16016-1090

$69.58

16030

VALVE-FLOAT

16030-1083

$65.95

16031

FLOAT

16031-1080

$60.55

16035

JET-AIR,LEAK

16035-1055

$11.94

16126

VALVE,VACUUM

16126-1253

$215.60

92009

SCREW,4X4.4

92009-1549

$3.98

92009A

SCREW,4X8

92009-1550

$3.92

92009B

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92055

RING-O,FLOAT CHAMBER

92055-1426

$16.99

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#142

92063-1016

$13.39

92063B

JET-MAIN,#145

92063-1017

$10.71

92063C

JET-MAIN,#148

92063-1324

$13.39

92063D

JET-MAIN,#150

92063-1330

$13.39

92063E

JET-MAIN,#152

92063-1331

$14.02

92063F

JET-MAIN,#155

92063-1332

$11.23

92064

JET-PILOT,#35

92064-1101

$12.84

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,VACUUM VALVE

92081-1874

Unavailable
