2023 Kawasaki Ninja ZX-6R (CA) Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

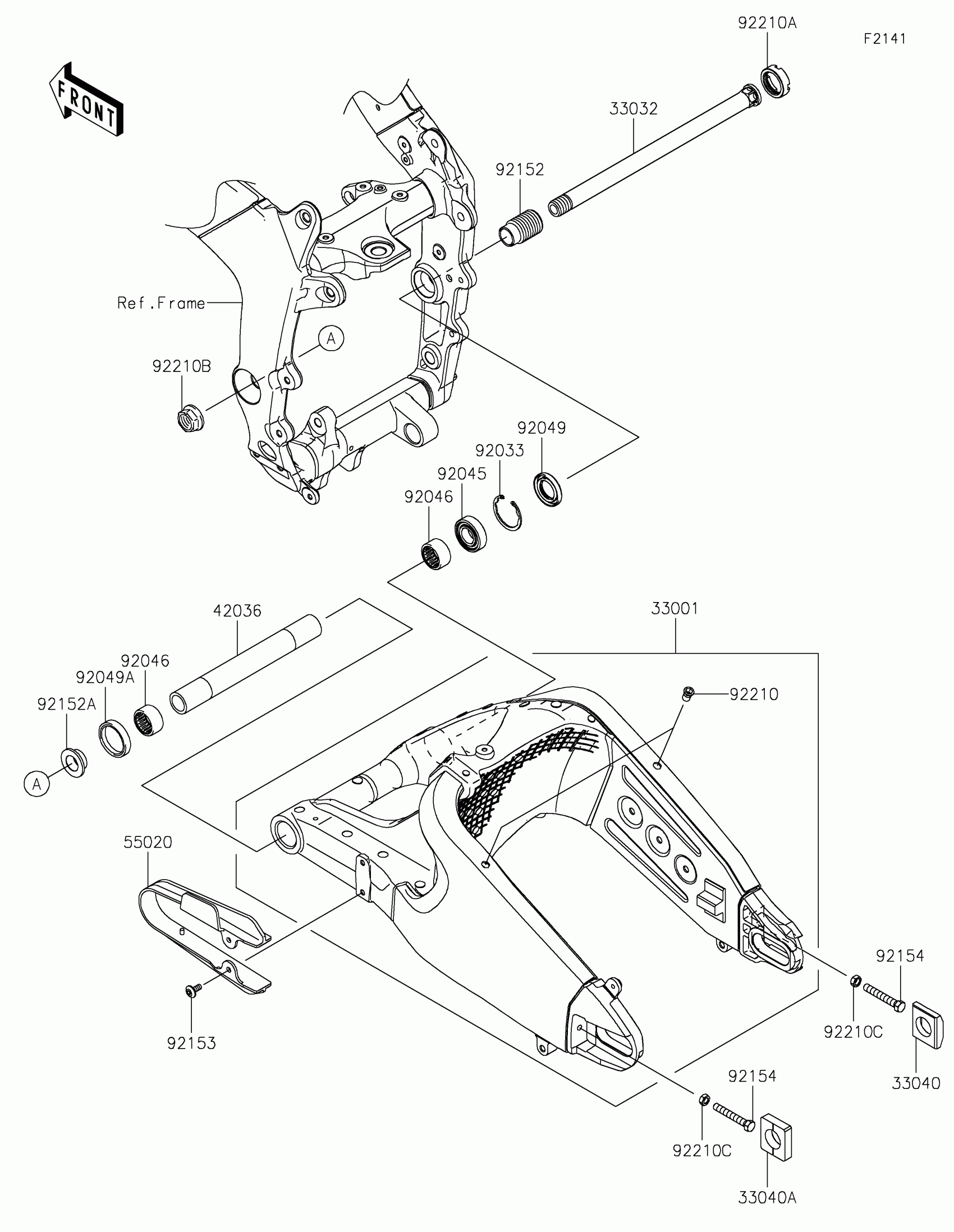

2023 Kawasaki Ninja ZX-6R (CA) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-0584

1
Out of stock

33032

SHAFT-SWING ARM

33032-0044

1
Out of stock

33040

ADJUSTER-CHAIN,RH

33040-0027

1
Out of stock

33040A

ADJUSTER-CHAIN,RH

33040-1114

1
Out of stock

42036

SLEEVE,20.1X28X226

42036-0069

1
Out of stock

55020

GUARD,CHAIN

55020-0384

1

$27.74

In stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92045

BEARING-BALL,6004UL11

92045-0017

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

1
Out of stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92152

COLLAR,SWING ARM,L=47

92152-0154

1
Out of stock

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

1
Out of stock

92153

BOLT,SOCKET,6X14

92153-0422

1
Out of stock

92154

BOLT-SMALL,8X55

92154-1962

1
Out of stock

92210

NUT,6MM

92210-0099

1
Out of stock

92210A

NUT,30MM

92210-0134

1
Out of stock

92210B

NUT,FLANGED,20MM

92210-0320

1
Out of stock

92210C

NUT-HEX-SMALL,8MM

92210-1459

1
Out of stock
