2023 Kawasaki Ninja ZX-6R (CA) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

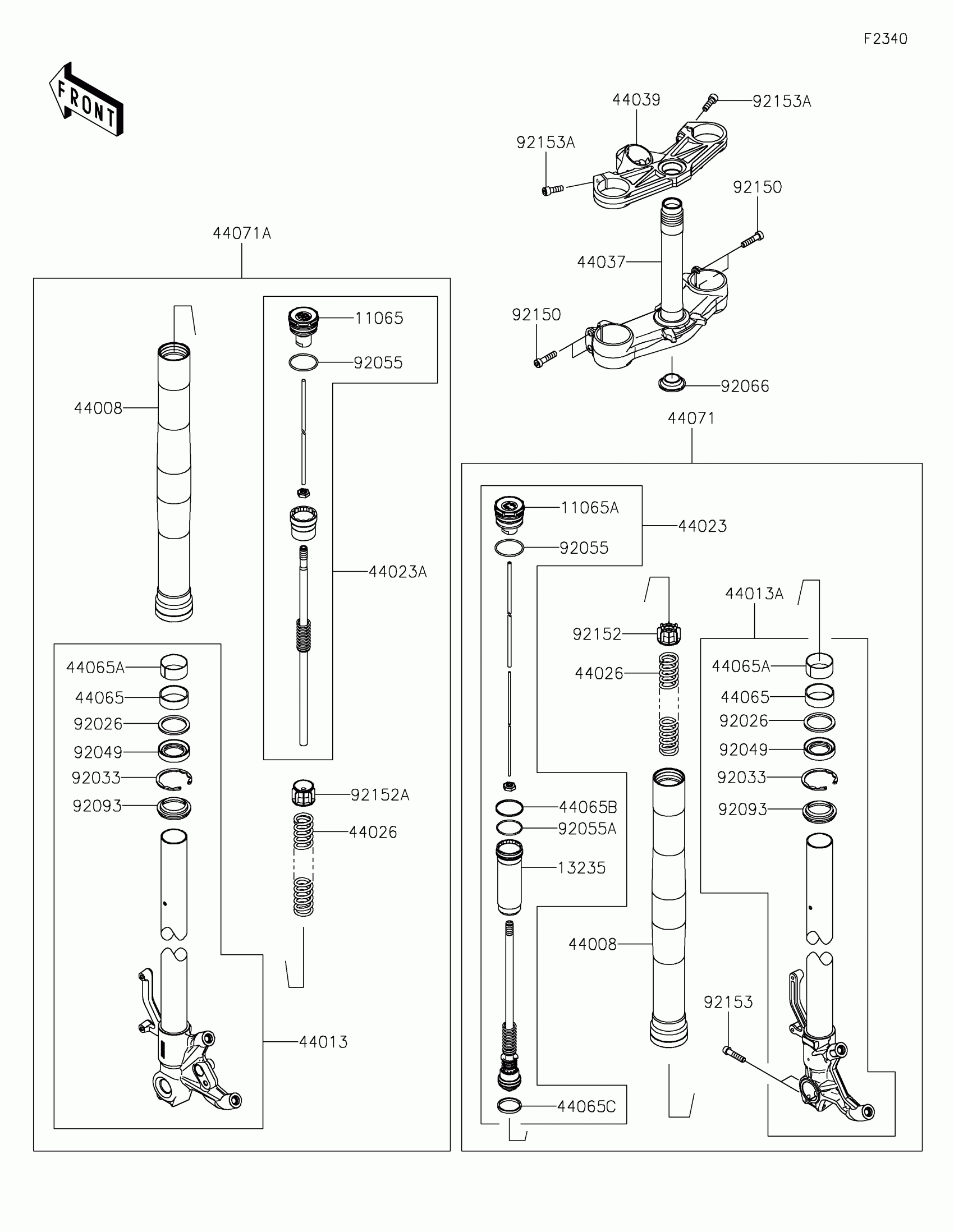

2023 Kawasaki Ninja ZX-6R (CA) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,LH,GRAY

11065-0793-11G

1
Out of stock

11065A

CAP,RH,GRAY

11065-0794-11G

1
Out of stock

13235

GUIDE-COMP,ROD

13235-0008

1
Out of stock

44008

PIPE-FORK OUTER,A.BLACK

44008-0063-499

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-0206

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-0207

1
Out of stock

44023

CYLINDER-SET-FORK,RH,GRAY

44023-0150-11G

1
Out of stock

44023A

CYLINDER-SET-FORK,LH,GRAY

44023-0151-11G

1
Out of stock

44026

SPRING-FRONT FORK

44026-0232

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0136

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0181

1
Out of stock

44065

BUSHING-FRONT FORK,GUIDE

44065-0030

1
Out of stock

44065A

BUSHING-FRONT FORK,SLIDE

44065-0031

1
Out of stock

44065B

BUSHING-FRONT FORK

44065-0033

1
Out of stock

44065C

BUSHING-FRONT FORK

44065-0045

1
Out of stock

44071

DAMPER-ASSY,RH,BLACK

44071-1343-48M

1
Out of stock

44071A

DAMPER-ASSY,LH,BLACK

44071-1344-48M

1
Out of stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-0729

1
Out of stock

92049

SEAL-OIL

92049-0125

1
Out of stock

92055

RING-O

92055-0142

1
Out of stock

92055A

RING-O

92055-0174

1
Out of stock

92066

PLUG

92066-0032

1
Out of stock

92093

SEAL,DUST

92093-0035

1
Out of stock

92150

BOLT,SOCKET

92150-1511

1
Out of stock

92152

COLLAR

92152-0757

1
Out of stock

92152A

COLLAR

92152-1888

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92153A

BOLT,SOCKET,8X25

92153-1625

1
Out of stock
