2023 Kawasaki Ninja ZX-6R (CA) Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

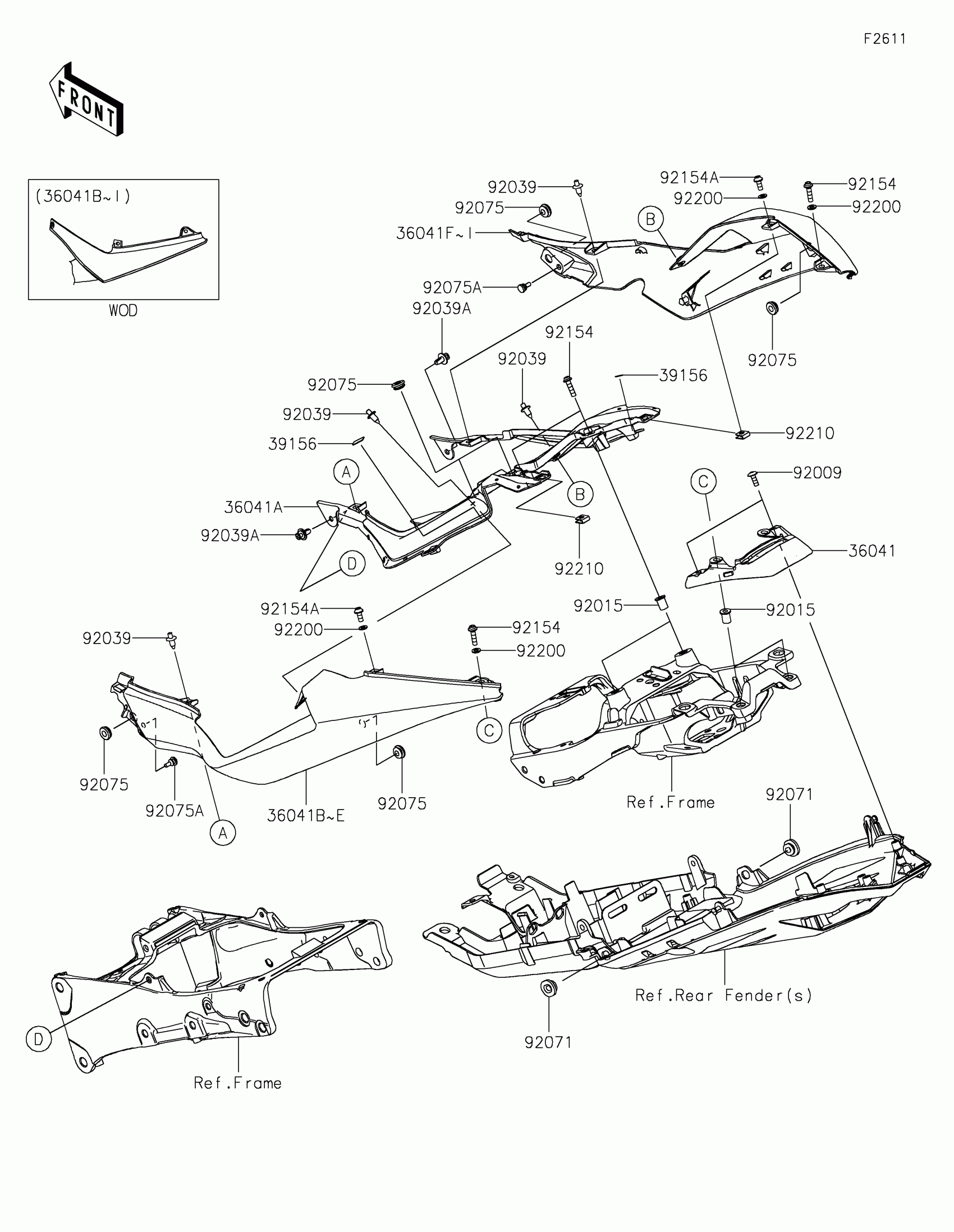

2023 Kawasaki Ninja ZX-6R (CA) Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36041

COVER-TAIL,RR

36041-0045

1

$21.42

In stock

36041A

COVER-TAIL,FR

36041-0050

1

$77.43

In stock

36041B

COVER-TAIL,LH,M.M.T.BLUE

36041-0051-68M

1

$222.29

In stock

36041F

COVER-TAIL,RH,M.M.T.BLUE

36041-0052-68M

1

$212.67

In stock

39156

PAD

39156-0632

1

$3.78

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0068

1

$2.42

In stock

92039A

RIVET

92039-1227

1

$1.54

In stock

92071

GROMMET,20X24X7.5

92071-0766

1

$1.27

In stock

92075

DAMPER,6X16X7

92075-1011

1

$5.84

In stock

92075A

DAMPER,6X10X15

92075-1808

1

$1.24

In stock

92154

BOLT,SOCKET,5X20

92154-0210

1

$1.78

In stock

92154A

BOLT,SOCKET,5X12

92154-1421

1

$0.93

In stock

92200

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

92210

NUT

92210-0571

1
Out of stock
