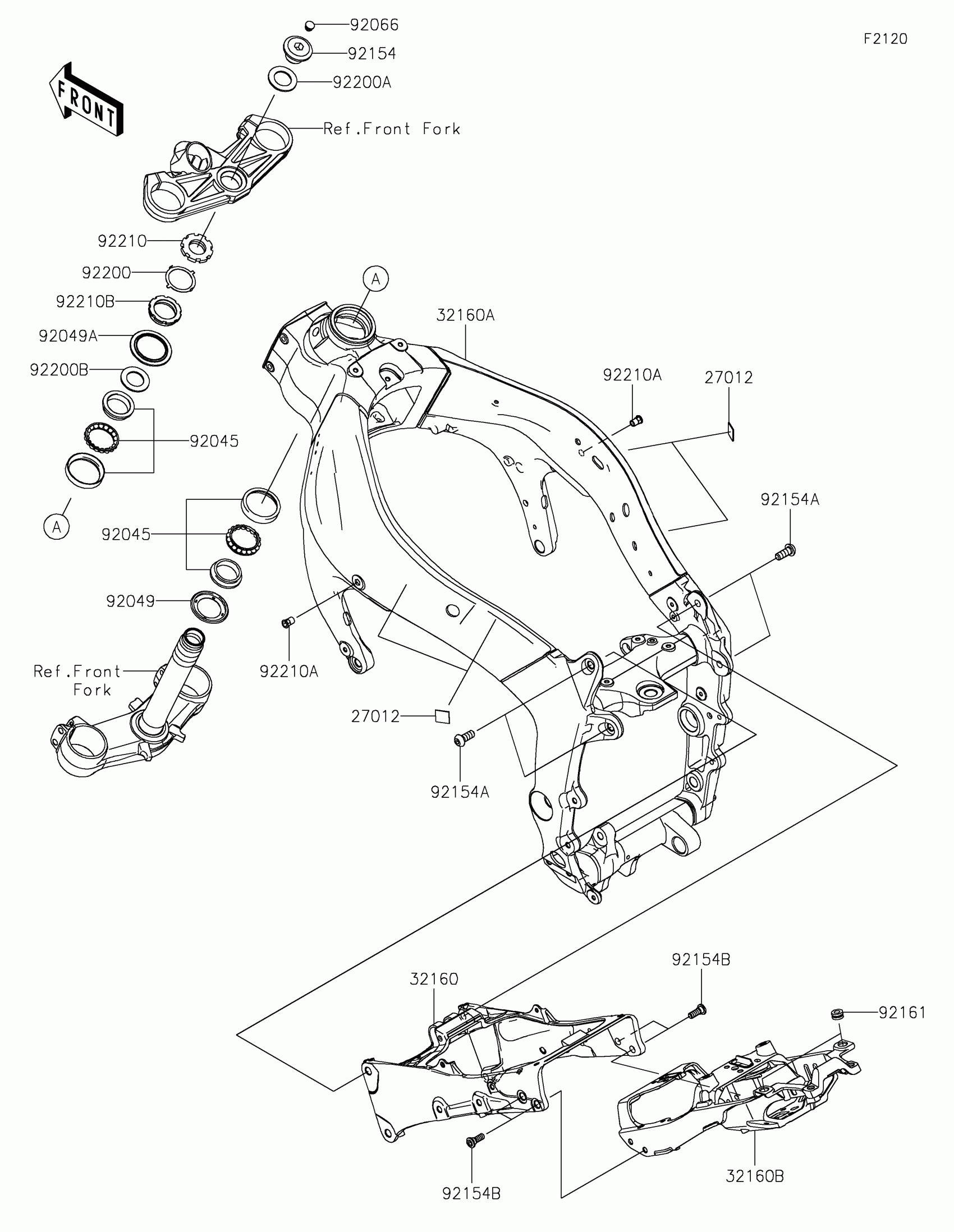

Kawasaki Ninja ZX-6R (CA) Frame Diagram

Description

Price

27012

HOOK,30X30X3.2

27012-0741

$7.71

32160

FRAME-COMP,RR,FR

32160-0399

$233.01

32160A

FRAME-COMP,MAIN

32160-0982

$1,831.33

32160B

FRAME-COMP,RR,RR

32160-0984

$226.59

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,DS35X55X4

92049-0022

$13.12

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

$16.78

92066

PLUG

92066-0071

$2.31

92154

BOLT,26X18

92154-1167

$25.68

92154A

BOLT,SOCKET,10X25

92154-1900

$3.78

92154B

BOLT,SOCKET,8X23

92154-1901

$2.75

92161

DAMPER

92161-0056

$2.38

92200

WASHER

92200-0036

$3.81

92200A

WASHER,27X42X2.3

92200-0081

$2.84

92200B

WASHER,36X47X0.6

92200-0862

$3.27

92210

NUT,35MM

92210-0095

$13.77

92210A

NUT,6MM

92210-0099

$4.23

92210B

NUT,35MM

92210-0823

$22.83
