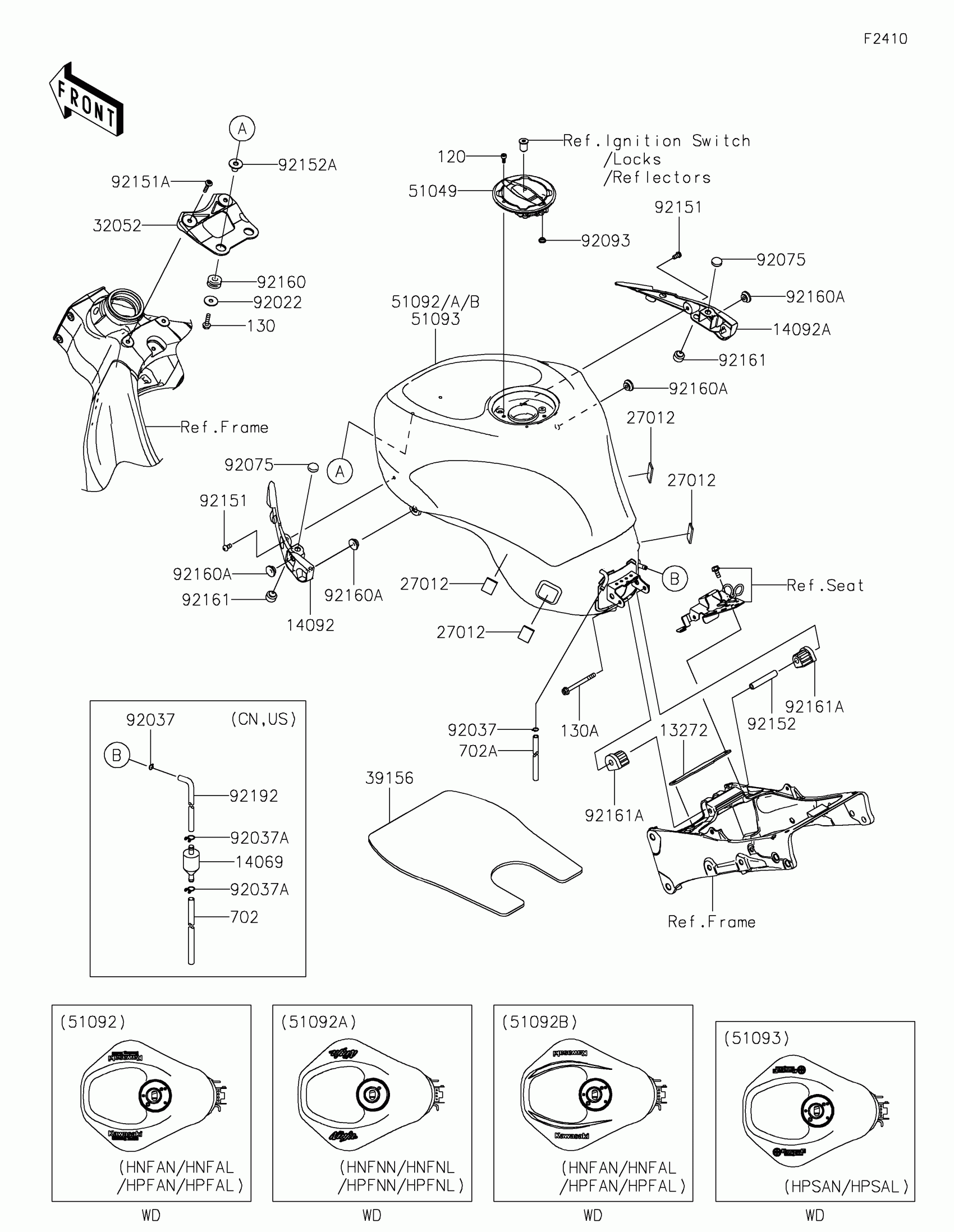

Kawasaki Ninja ZX-6R (CA) Fuel Tank Diagram

Description

Price

13272

PLATE,FUEL TANK,RR

13272-0505

$7.60

14092

COVER,TANK,LH

14092-1087

$11.83

14092A

COVER,TANK,RH

14092-1088

$11.83

27012

HOOK

27012-0115

$5.65

32052

BRACKET-TANK

32052-0727

$49.58

39156

PAD,FUEL TANK

39156-0469

$15.62

51049

CAP-TANK

51049-0735

$136.31

51092A

TANK-COMP-FUEL,M.D.BLACK

51092-5218-17K

$1,015.91

92022

WASHER,7X24X1.6

92022-228

$3.92

92075

DAMPER

92075-1983

$4.18

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X12

92151-1219

$6.07

92151A

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR,6.8X10X60

92152-1182

$4.83

92152A

COLLAR

92152-2197

$5.23

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0738

$5.54

92161A

DAMPER,FUEL TANK,RR

92161-1330

$6.18

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X70

130BC0670

$2.17

702A

TUBE-RUBBER,6X850

702A06850

$18.20
