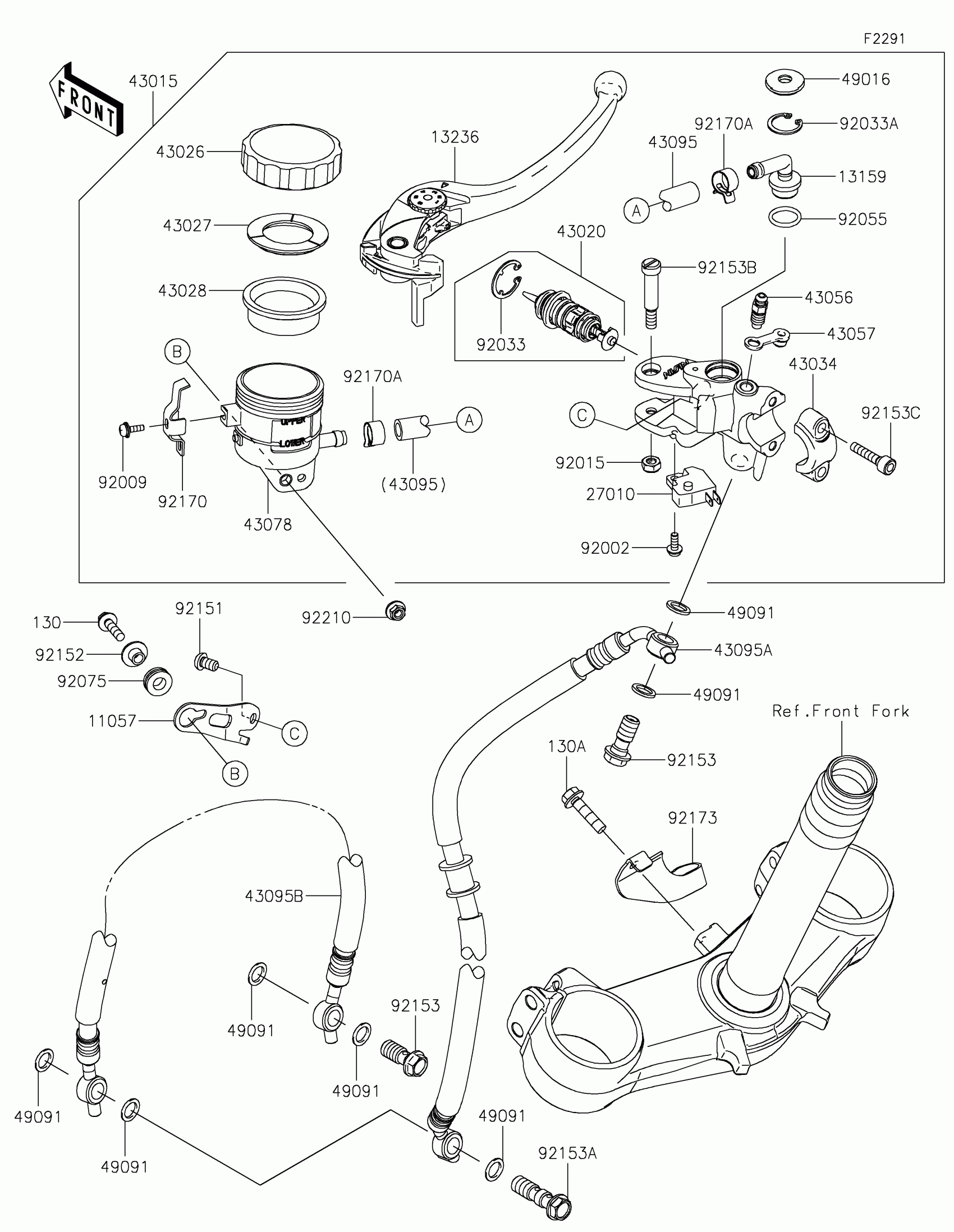

Kawasaki Ninja ZX-6R (CA) Front Master Cylinder Diagram

#

Description
Price

11057

BRACKET,FR MASTER CYLINDER

11057-3730

$7.24

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP

13236-0729

$72.94

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0702

$410.93

43020

PISTON-COMP-BRAKE

43020-0010

$65.94

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$23.08

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-1099

$32.29

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

$13.04

43095A

HOSE-BRAKE,FR,693MM

43095-0778

$85.57

43095B

HOSE-BRAKE,FR,640MM

43095-0779

$74.44

49016

COVER-SEAL

49016-1147

$6.29

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92075

DAMPER

92075-161

$4.69

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92152

COLLAR

92152-0017

$2.80

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,OIL,L=37

92153-0628

$11.83

92153B

BOLT,LEVER

92153-0868

$7.83

92153C

BOLT,SOCKET,6X22

92153-1518

$3.90

92170

CLAMP

92170-1090

$14.43

92170A

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP

92173-1081

$9.14

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,5X20

130BB0520

$2.02

130A

BOLT-FLANGED,6X25

130BB0625

$2.80
