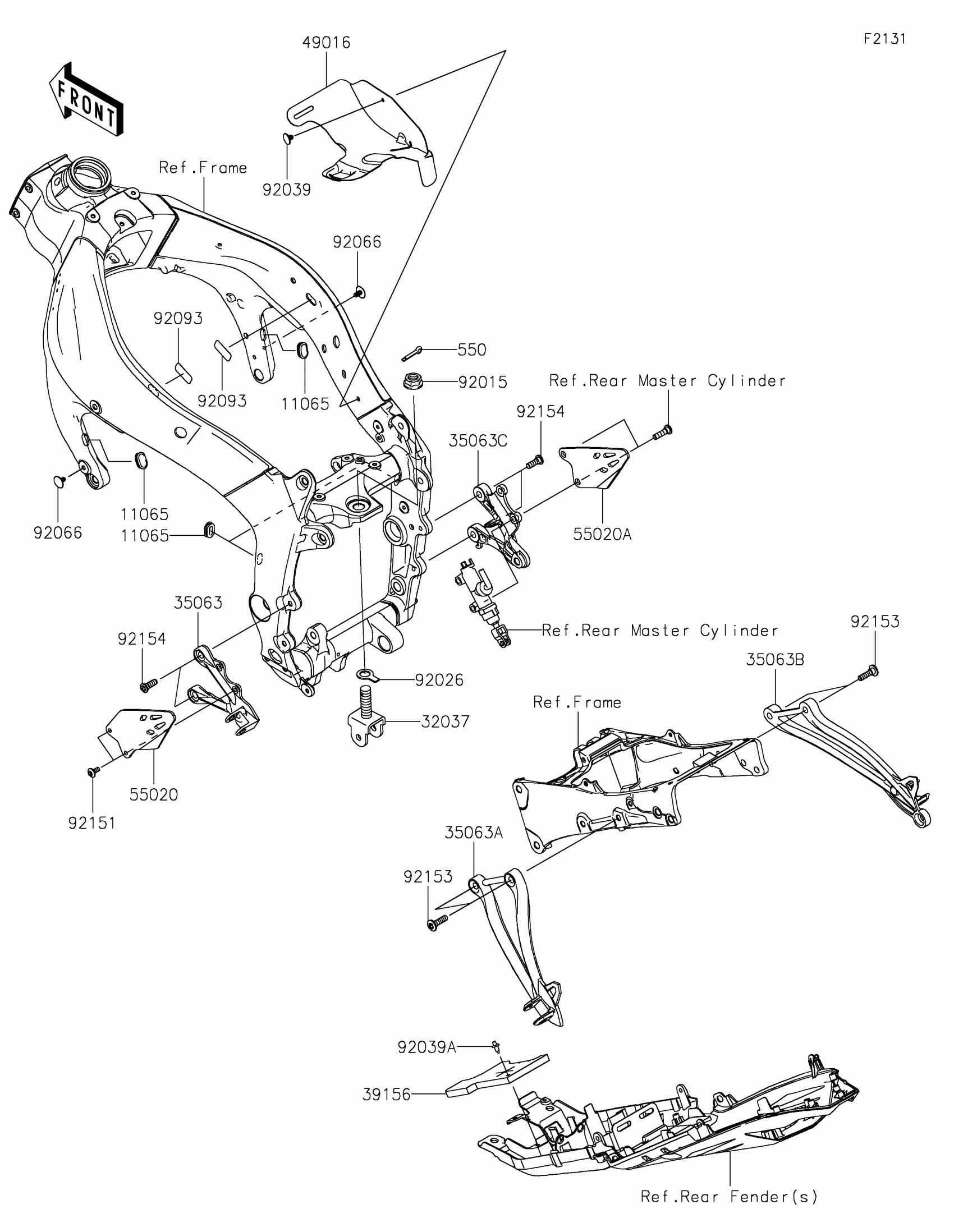

Kawasaki Ninja ZX-6R (CA) Frame Fittings Diagram

Description

Price

11065

CAP

11065-0095

$3.87

32037

BRACKET-SHOCKABSORBER

32037-0412

$43.49

35063

STAY,FR,LH,F.S.BLACK

35063-0160-18R

$128.54

35063A

STAY,RR,LH,F.S.BLACK

35063-0444-18R

$148.68

35063B

STAY,RR,RH,F.S.BLACK

35063-0445-18R

$148.68

35063C

STAY,FR,RH,F.S.BLACK

35063-0590-18R

$124.32

39156

PAD

39156-1000

$11.88

49016

COVER-SEAL

49016-0666

$12.56

55020

GUARD,HEEL,LH

55020-2226

$57.14

55020A

GUARD,HEEL,RH

55020-2227

$57.14

92015

NUT,FLANGED,16MM

92015-1881

$23.10

92026

SPACER,16.5X26X2

92026-0747

$5.65

92039

RIVET

92039-0065

$3.90

92039A

RIVET

92039-0068

$2.97

92066

PLUG,6X17

92066-0751

$1.96

92093

SEAL

92093-0154

$3.67

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,SOCKET,8X30

92153-1630

$2.61

92154

BOLT,SOCKET,8X25

92154-1149

$4.41

550

PIN-COTTER,3X25

550S3025

$2.58
