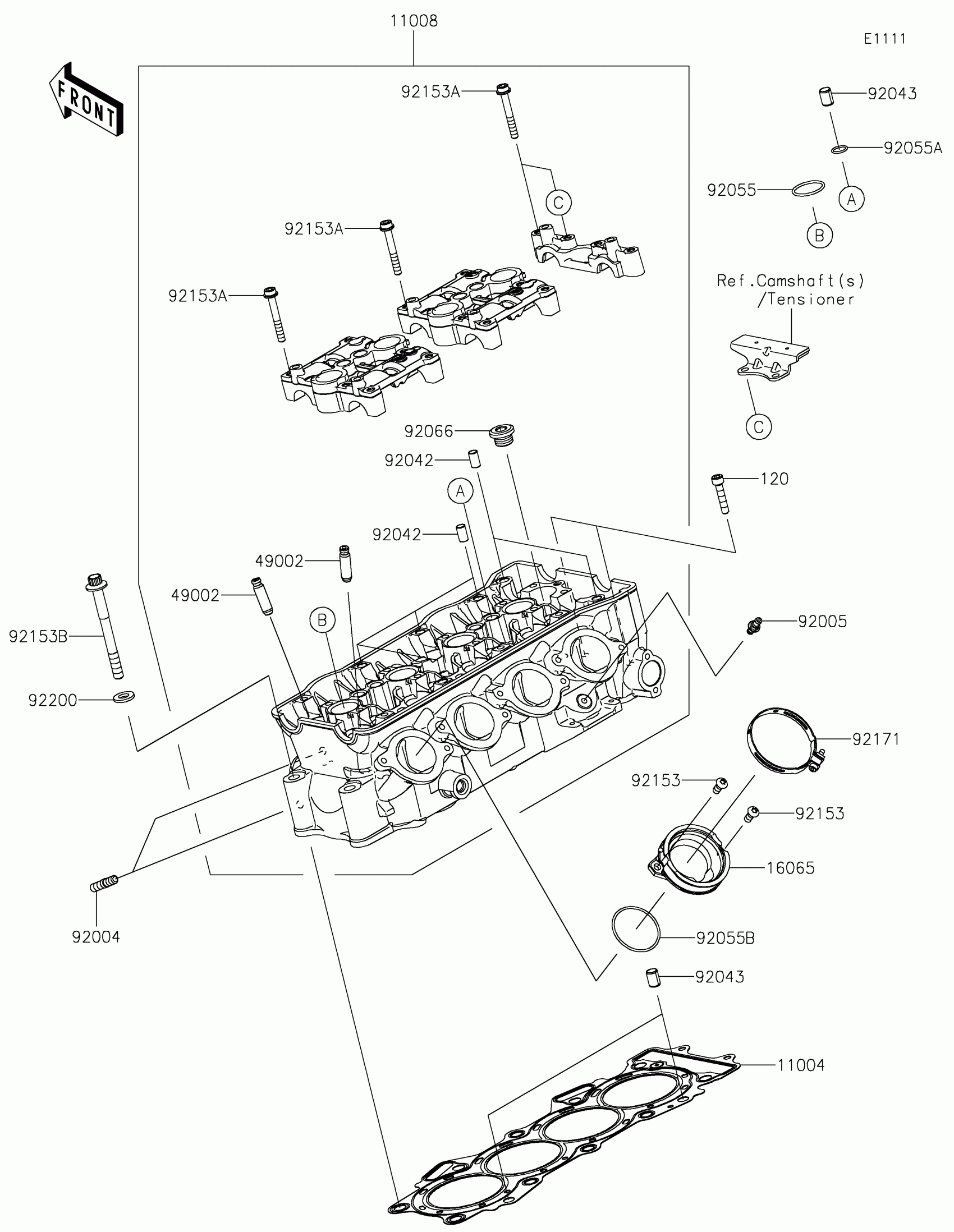

Kawasaki Ninja ZX-6R (CA) Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0736

$95.16

11008

HEAD-COMP-CYLINDER

11008-0762

$2,217.79

16065

HOLDER-CARBURETOR

16065-0067

$40.38

49002

GUIDE-VALVE

49002-1152

$35.60

92004

STUD

92004-0050

$3.62

92005

FITTING

92005-1273

$23.17

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,25.5X2

92055-0074

$3.90

92055A

RING-O,11.5X1.5

92055-0133

$3.90

92055B

RING-O,42X1.9

92055-1536

$2.78

92066

PLUG,16X10

92066-0129

$13.68

92153

BOLT,TORX,6X14

92153-0406

$2.80

92153A

BOLT,SOCKET,6X45

92153-0656

$2.55

92153B

BOLT,FLANGED,9X90

92153-1610

$14.27

92171

CLAMP,60MM

92171-0729

$18.57

92200

WASHER,9.2X19X2.3

92200-0193

$2.97

120

BOLT-SOCKET,6X30

120CD0630

$4.76
