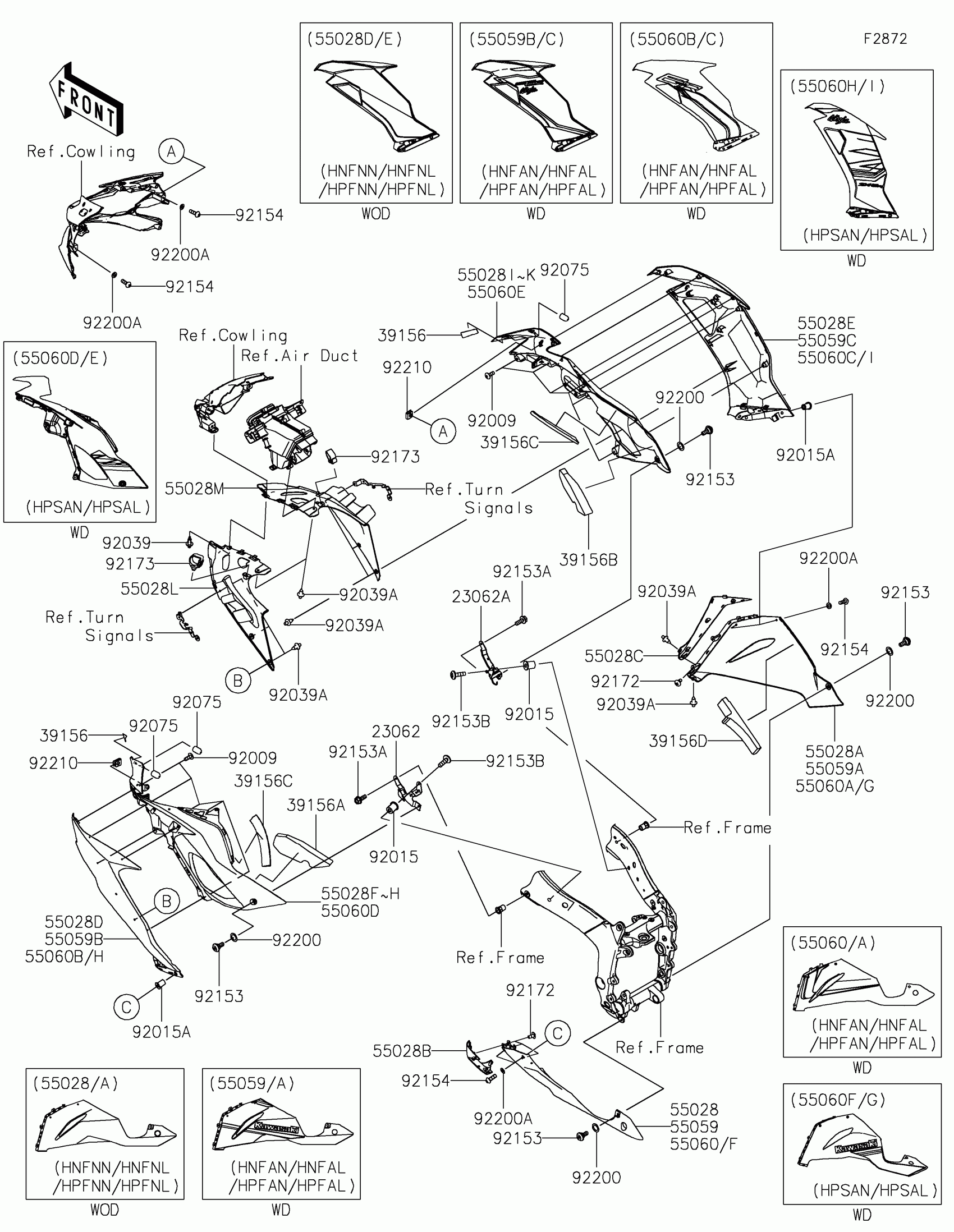

Kawasaki Ninja ZX-6R (CA) Cowling Lowers Diagram

#

Description
Price

23062

BRACKET-COMP,SIDE COWLING,LH

23062-1159

$19.60

23062A

BRACKET-COMP,SIDE COWLING,RH

23062-1160

$30.85

39156

PAD,10X30X0.2

39156-0980

$1.18

39156A

PAD,SIDE COWLING,RR,LH

39156-2412

$11.14

39156B

PAD,SIDE COWLING,RR,RH

39156-2413

$11.14

39156C

PAD,220X30X10

39156-2414

$2.92

39156D

PAD,LWR COWLING,RH

39156-2425

$29.01

55028

COWLING,LWR,LH,M.M.T.BLUE

55028-0450-68M

$225.05

55028A

COWLING,LWR,RH,M.M.T.BLUE

55028-0451-68M

$225.05

55028B

COWLING,LWR,FR,LH

55028-0452

$19.60

55028C

COWLING,LWR,FR,RH

55028-0453

$19.60

55028D

COWLING,SIDE,LH,FR,M.M.T.BLUE

55028-0669-68M

$297.40

55028E

COWLING,SIDE,RH,FR,M.M.T.BLUE

55028-0670-68M

$298.83

55028F

COWLING,SIDE,LH,RR,M.D.BLACK

55028-0671-17K

$281.45

55028I

COWLING,SIDE,RH,RR,M.D.BLACK

55028-0672-17K

$290.61

55028L

COWLING,FR,LH

55028-0677

$66.69

55028M

COWLING,FR,RH

55028-0678

$66.69

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0051

$4.65

92039A

RIVET

92039-0068

$2.97

92075

DAMPER

92075-1964

$5.00

92153

BOLT,SOCKET,6MM

92153-0489

$3.73

92153A

BOLT,FLANGED,6X16

92153-0713

$2.12

92153B

BOLT,SOCKET,6X22

92153-1356

$2.15

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92200

WASHER,10.4X15.9X0.5

92200-0157

$2.15

92200A

WASHER,5.2X10X1.0

92200-1820

$0.63

92210

NUT

92210-0571

$3.52
