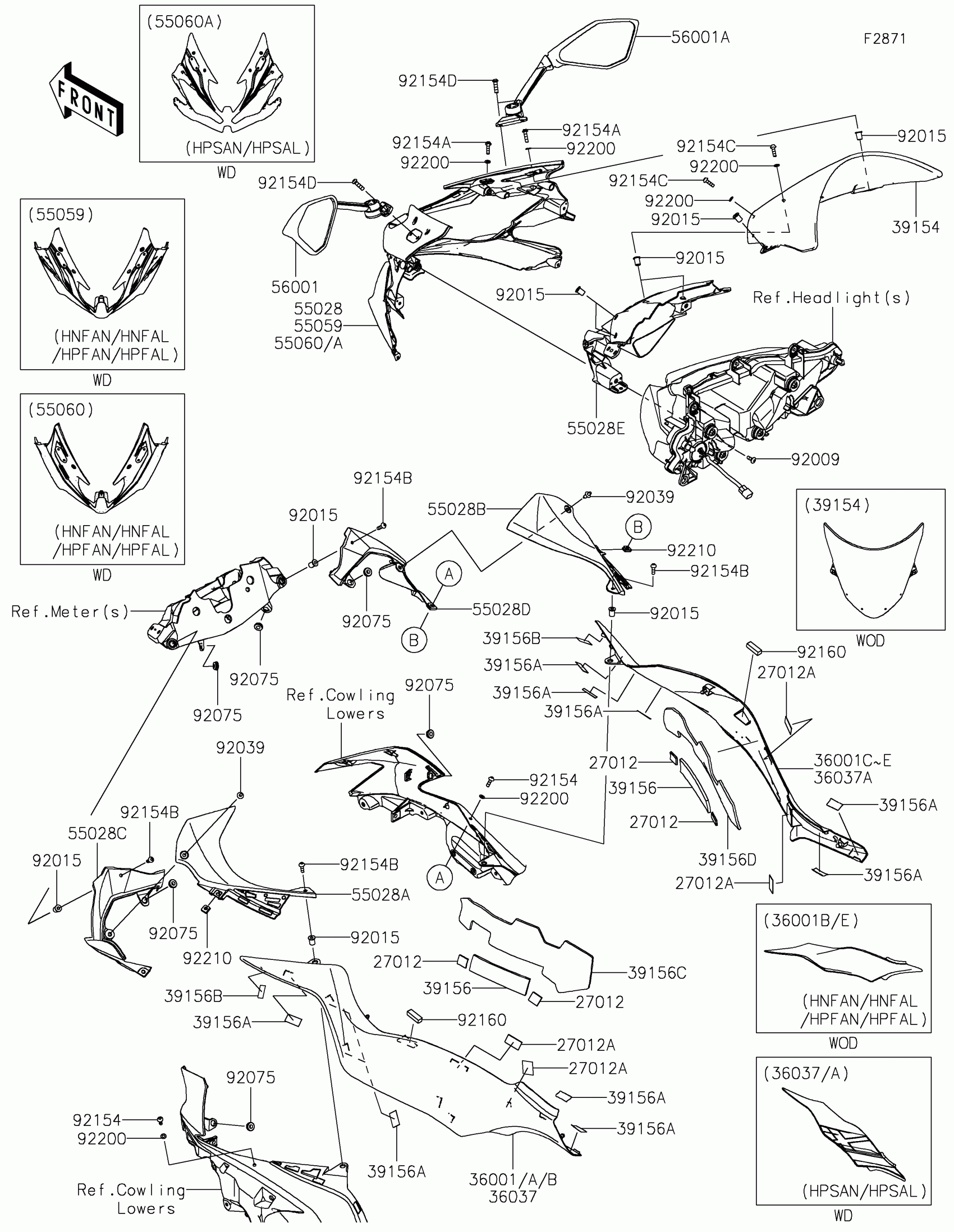

Kawasaki Ninja ZX-6R (CA) Cowling Diagram

#

Description
Price

27012

HOOK,20X20X3.0

27012-0742

$4.41

27012A

HOOK

27012-0751

$5.98

36001A

COVER-SIDE,LH,M.F.S.BLACK

36001-0594-739

$122.20

36001D

COVER-SIDE,RH,M.F.S.BLACK

36001-0595-739

$122.20

39154

WINDSHIELD

39154-0384

$231.60

39156

PAD

39156-0536

$2.76

39156A

PAD,15X30X0.2

39156-0979

$1.62

39156B

PAD,10X30X0.2

39156-0980

$1.18

39156C

PAD,COVER FRAME,LH

39156-2410

$10.30

39156D

PAD,COVER FRAME,RH

39156-2411

$10.30

55028

COWLING,UPP,M.M.T.BLUE

55028-0667-68M

$294.48

55028A

COWLING,INNER,RR,LH

55028-0675

$25.16

55028B

COWLING,INNER,RR,RH

55028-0676

$25.16

55028C

COWLING,INNER,FR,LH

55028-0697

$19.53

55028D

COWLING,INNER,FR,RH

55028-0698

$19.53

55028E

COWLING,UPP,CNT

55028-0699

$78.15

56001

MIRROR-ASSY,LH

56001-0393

$89.23

56001A

MIRROR-ASSY,RH

56001-0394

$89.23

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92075

DAMPER,6X16X7

92075-1011

$7.33

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X20

92154-0210

$2.12

92154B

BOLT,SOCKET,5X16

92154-1701

$1.19

92154C

BOLT,SOCKET,5X18

92154-2107

$2.12

92154D

BOLT,SOCKET,6X22

92154-3777

$1.69

92160

DAMPER

92160-1183

$3.57

92200

WASHER,5.2X10X1.0

92200-1820

$0.63

92210

NUT

92210-0571

$3.52
