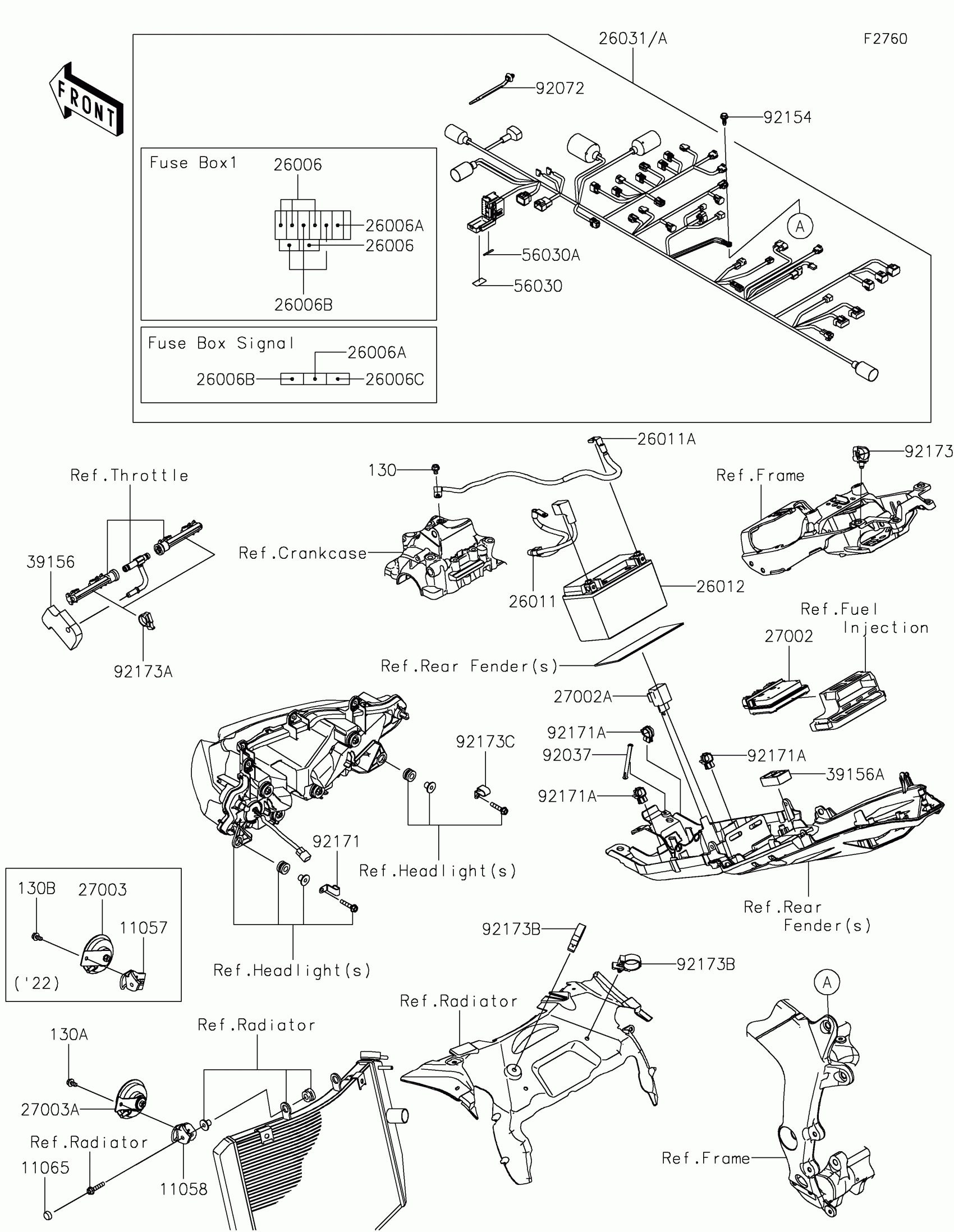

Kawasaki Ninja ZX-6R (CA) Chassis Electrical Equipment Diagram

Description

Price

11058

BRACKET,HORN

11058-0458

$19.85

11065

CAP,BOLT

11065-0752

$2.30

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-1857

$56.12

26011A

WIRE-LEAD,BATTERY(-)

26011-1859

$29.34

26012

BATTERY,YTX9-BS,12V 8AH

26012-0838

Unavailable

27002

RELAY-ASSY

27002-0050

$143.14

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003A

HORN

27003-0167

$70.00

39156

PAD,T15

39156-0962

$7.90

39156A

PAD,32X52X15

39156-2146

$13.10

56030

LABEL,FUSE BOX1

56030-1417

$3.23

56030A

LABEL,FUSE BOX SIGNAL

56030-1418

$3.23

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92171

CLAMP

92171-0926

$8.68

92171A

CLAMP,EDGE CLIP

92171-1722

$8.05

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,SNAPPER

92173-0970

$4.72

92173B

CLAMP,CABLE,28MM

92173-1062

$3.72

92173C

CLAMP

92173-1891

$15.65

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X10

130CA0610

$1.69
