- Partiron
- OEM Parts
- Kawasaki
- motorcycle
- 2012
- NINJA® ZX™-6R
Air Cleaner

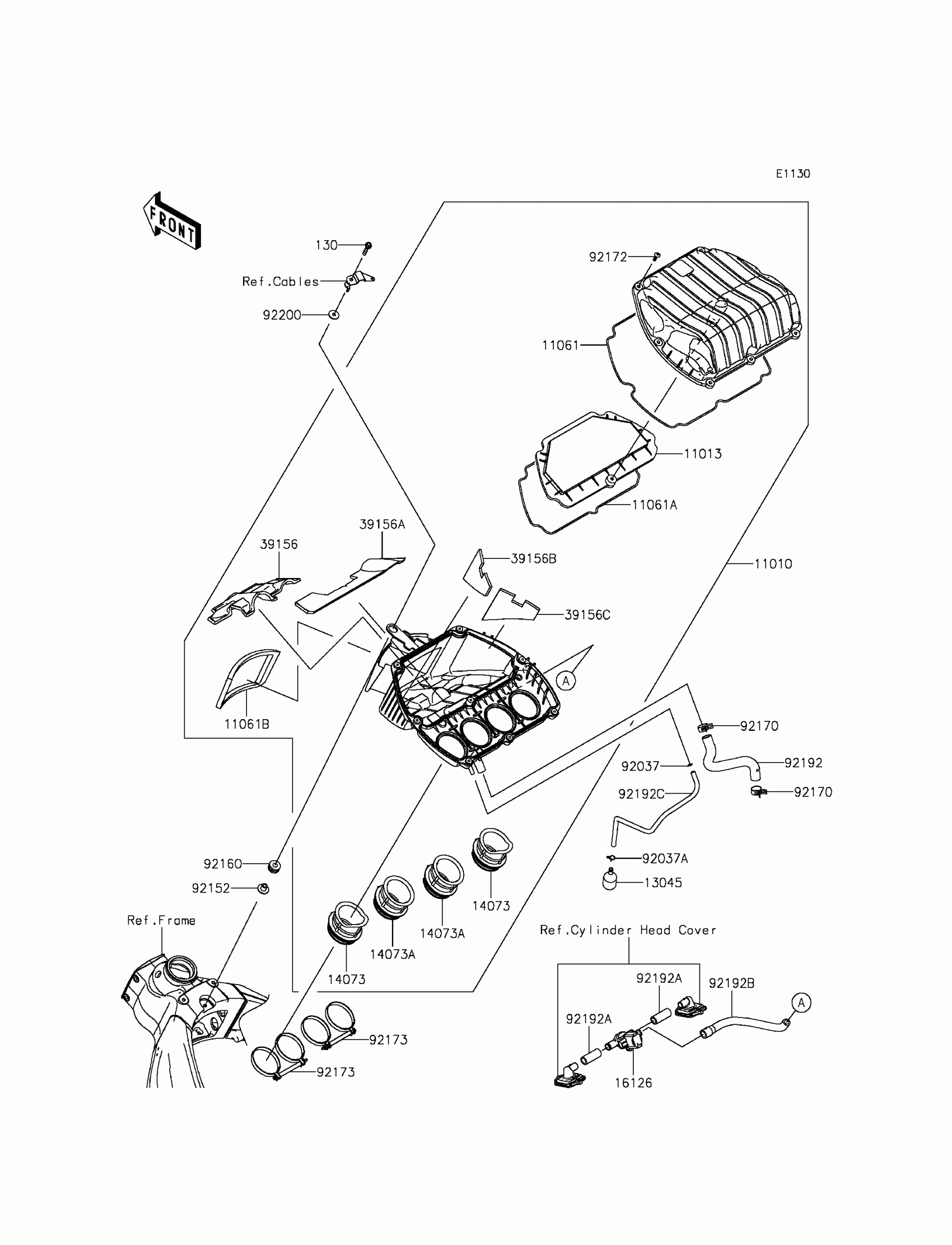

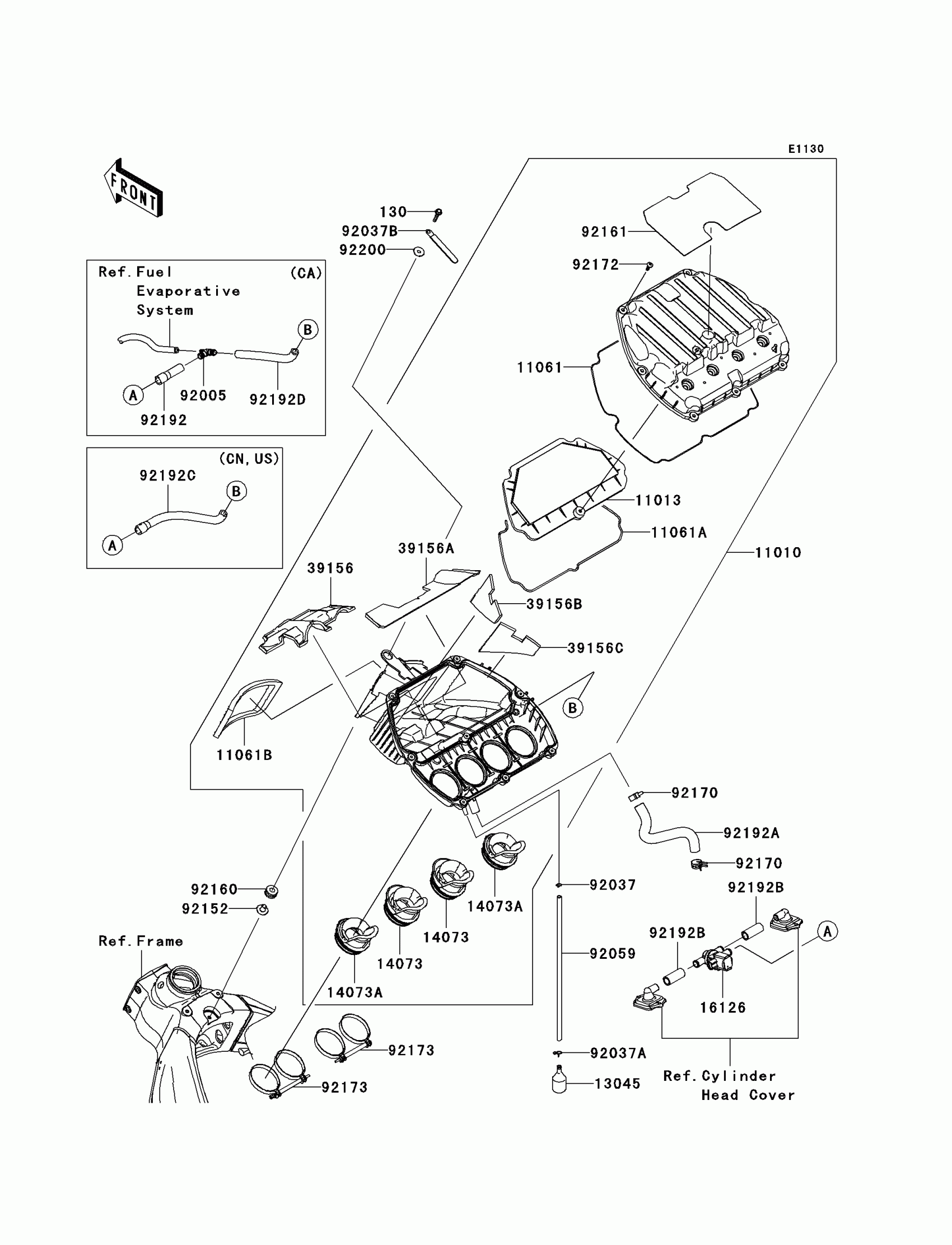

Kawasaki NINJA® ZX™-6R Air Cleaner Diagram
#
Description
Price
130
BOLT-FLANGED,6X30
130BB0630
$4.43
11010
FILTER-ASSY-AIR
11010-0198
$378.22
11013
ELEMENT-AIR FILTER
11013-0036
$58.00
11061
GASKET,UPP CASE
11061-0379
$10.28
11061A
GASKET,LWR CASE
11061-0380
$13.68
11061B
GASKET,FRAME-A/C
11061-0381
$7.75
13045
RECEIVER-OIL
13045-1057
$9.82
14073
DUCT,#2,#3
14073-0262
$22.09
14073A
DUCT,#1,#4
14073-0263
$22.09
16126
VALVE,AIR SWITCHING
16126-0038
$189.89
39156
PAD,FR
39156-0513
$45.06
39156A
PAD,RR
39156-0514
$45.06
39156B
PAD,LH
39156-0515
$24.55
39156C
PAD,RH
39156-0516
$24.55
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP
92037-1712
$5.00
92037B
CLAMP
92037-1993
$5.52
92059
TUBE,6X9X360
92059-103
$18.63
92152
COLLAR,6.5X10.5X13.1
92152-0547
$5.65
92160
DAMPER
92160-1162
$5.00
92161
DAMPER
92161-0696
$45.48
92170
CLAMP
92170-1060
$8.10
92172
SCREW
92172-1072
$2.41
92173
CLAMP
92173-0115
$22.59
92192A
TUBE,BLOWBY
92192-0429
$17.12
92192B
TUBE,12X17.6X44
92192-0851
$29.88
92200
WASHER,6.5X22X1.6
92200-1087
$3.94
92005
FITTING
92005-1402
$7.58
92192
TUBE,ASV-FITTING
92192-0367
$5.70
92192C
TUBE,ASV-A/C
92192-0879
$15.77
92192D
TUBE,A/C-FITTING
92192-0880
$9.70
