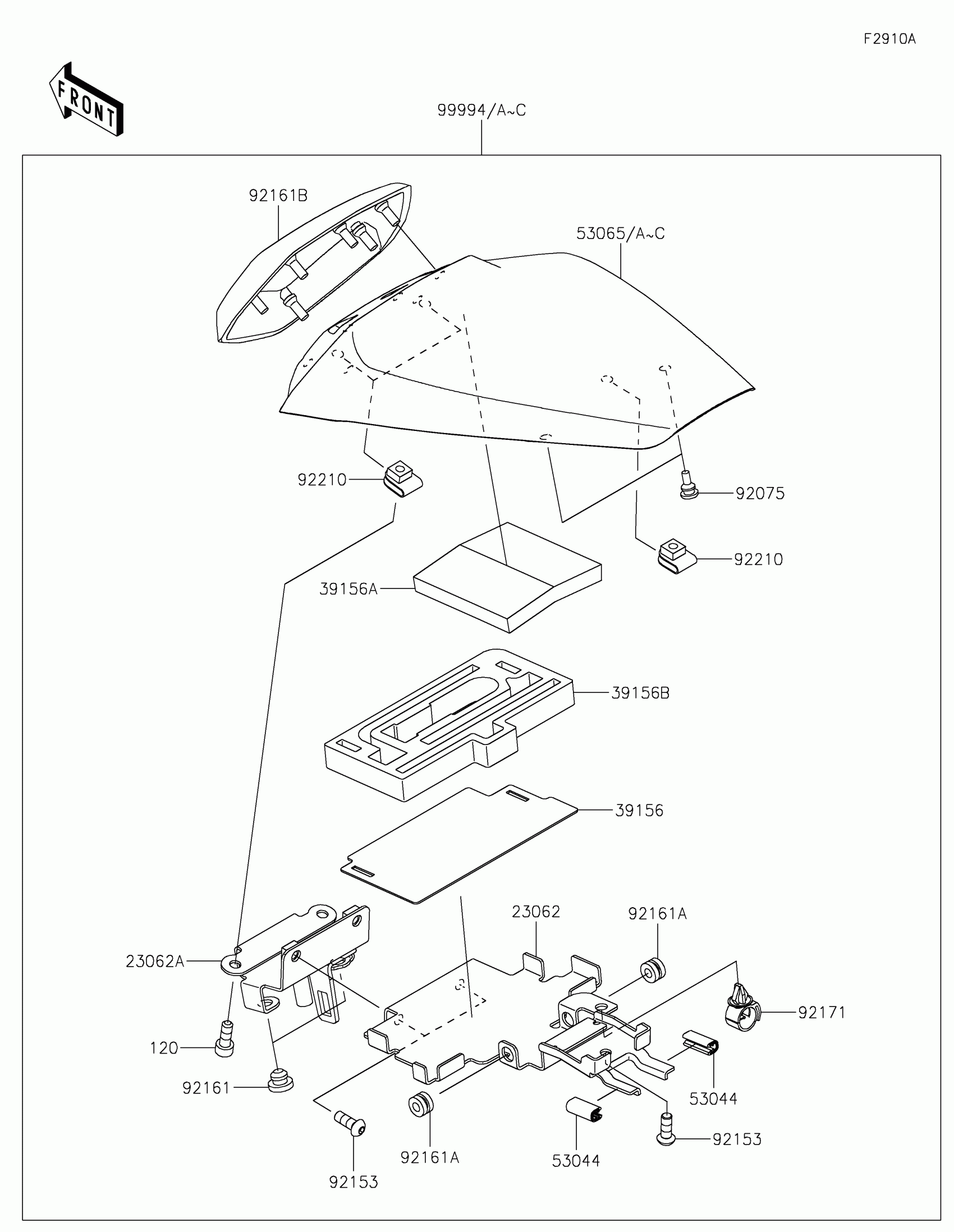

Kawasaki NINJA® ZX™-6R Accessory(Pillion Seat Cover) Diagram

Description

Price

23062

BRACKET-COMP

23062-1162

$40.92

23062A

BRACKET-COMP

23062-1184

$195.65

39156

PAD

39156-2365

$5.27

39156A

PAD

39156-2366

$3.21

39156B

PAD

39156-2367

$13.39

53044

TRIM,L=20

53044-0021

$3.39

53065

COVER SEAT,P.R.WHITE

53065-0038-68N

$213.72

53065A

COVER SEAT,M.M.D.GRAY

53065-0038-69P

$209.30

53065B

COVER SEAT,L.GREEN

53065-0038-777

$219.89

92075

DAMPER,6X10X15

92075-1808

$1.39

92153

BOLT,SOCKET,6X16

92153-1785

$2.61

92161

DAMPER

92161-1084

$2.67

92161A

DAMPER

92161-1350

$6.34

92161B

DAMPER,SEAT PAD

92161-1812

$65.78

92171

CLAMP,13MM DIA.

92171-1415

$2.03

92210

NUT,6MM

92210-0277

$4.92

99994

PILLION SEAT COVER,P.R.WHITE

99994-1116-68N

$181.79

99994A

PILLION SEAT COVER,M.M.D.GRAY

99994-1116-69P

$181.49

99994B

PILLION SEAT COVER,L.GREEN

99994-1116-777

$181.79

120

BOLT-SOCKET,6X16

120CA0616

$2.49
