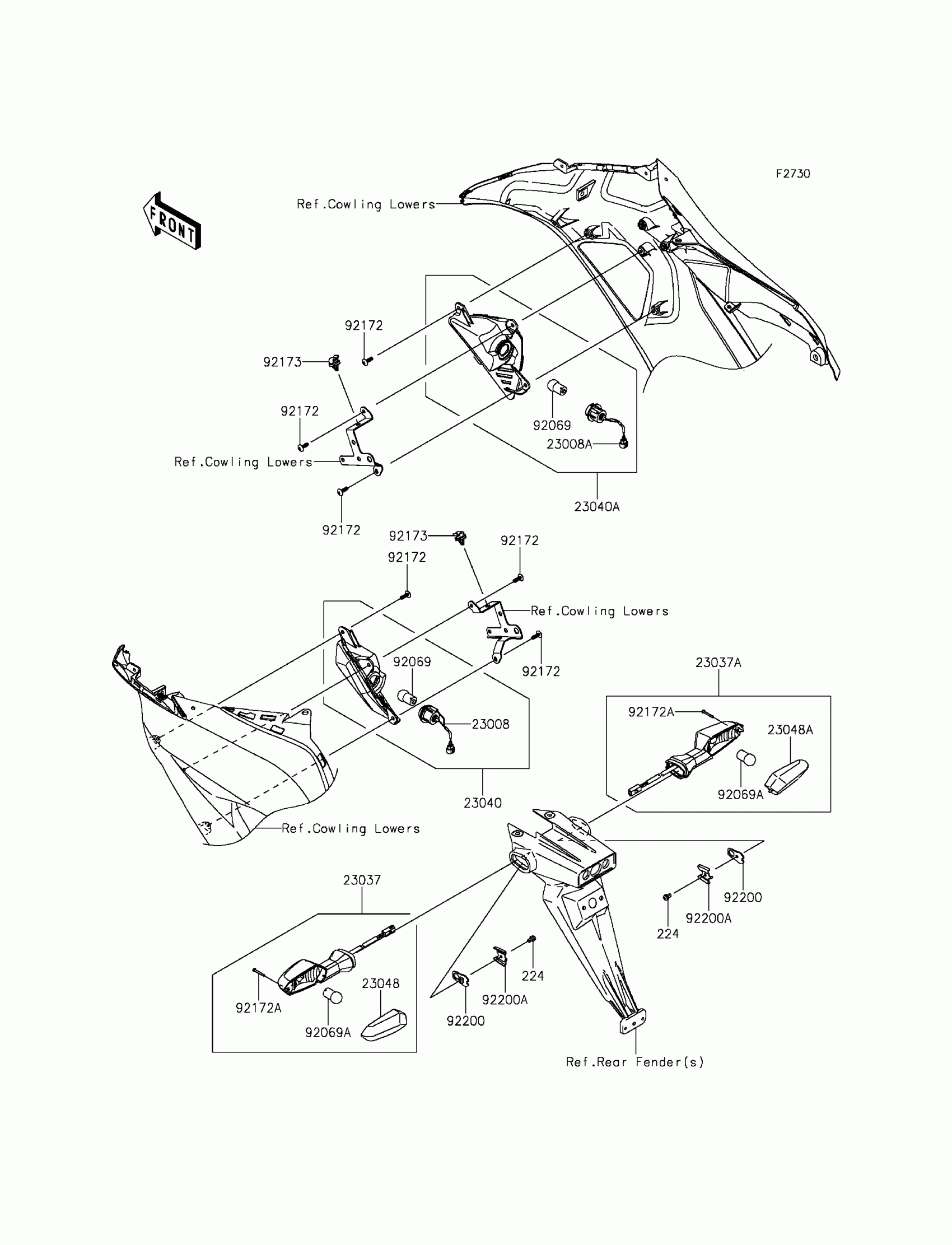

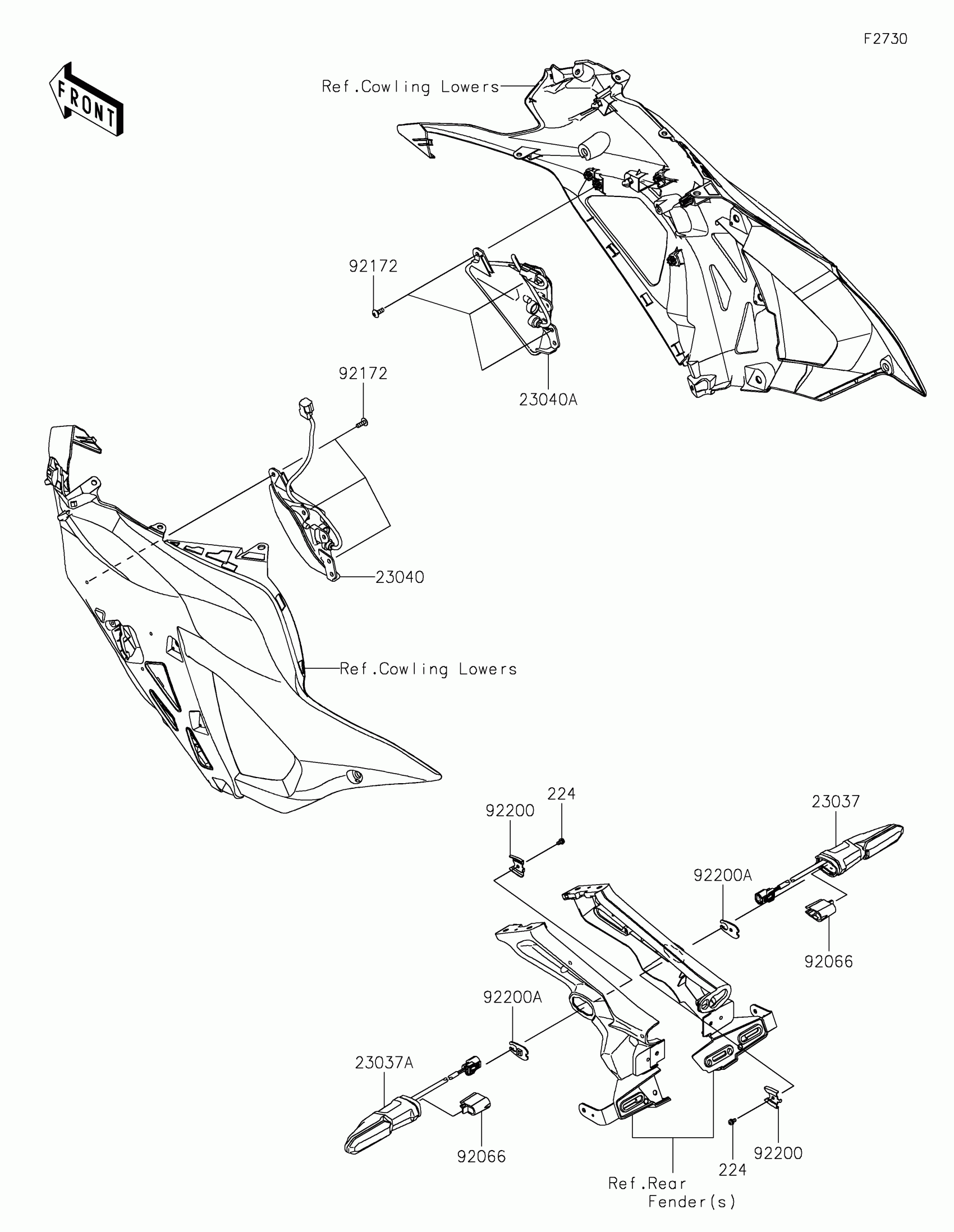

Kawasaki Ninja® ZX™-6R ABS Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

23008

SOCKET-ASSY,FR LH

23008-0150

$22.17

23008A

SOCKET-ASSY,FR RH

23008-0151

$22.17

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0276

Unavailable

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0277

Unavailable

23040

LAMP-SIGNAL,FR,LH

23040-0117

Unavailable

23040A

LAMP-SIGNAL,FR,RH

23040-0118

Unavailable

23048

LENS-SIGNAL LAMP,RR,LH

23048-0023

$12.53

23048A

LENS-SIGNAL LAMP,RR,RH

23048-0024

$12.53

92069

BULB,12V 10W

92069-0058

$7.73

92069A

BULB,12V 10W

92069-0076

$4.15

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92172A

SCREW,2.9X22

92172-0395

$3.71

92173

CLAMP,CABLE CLIP

92173-1022

$1.63

92200

WASHER,NUT 4MM

92200-0854

$3.35

92200A

WASHER

92200-0855

$1.97
