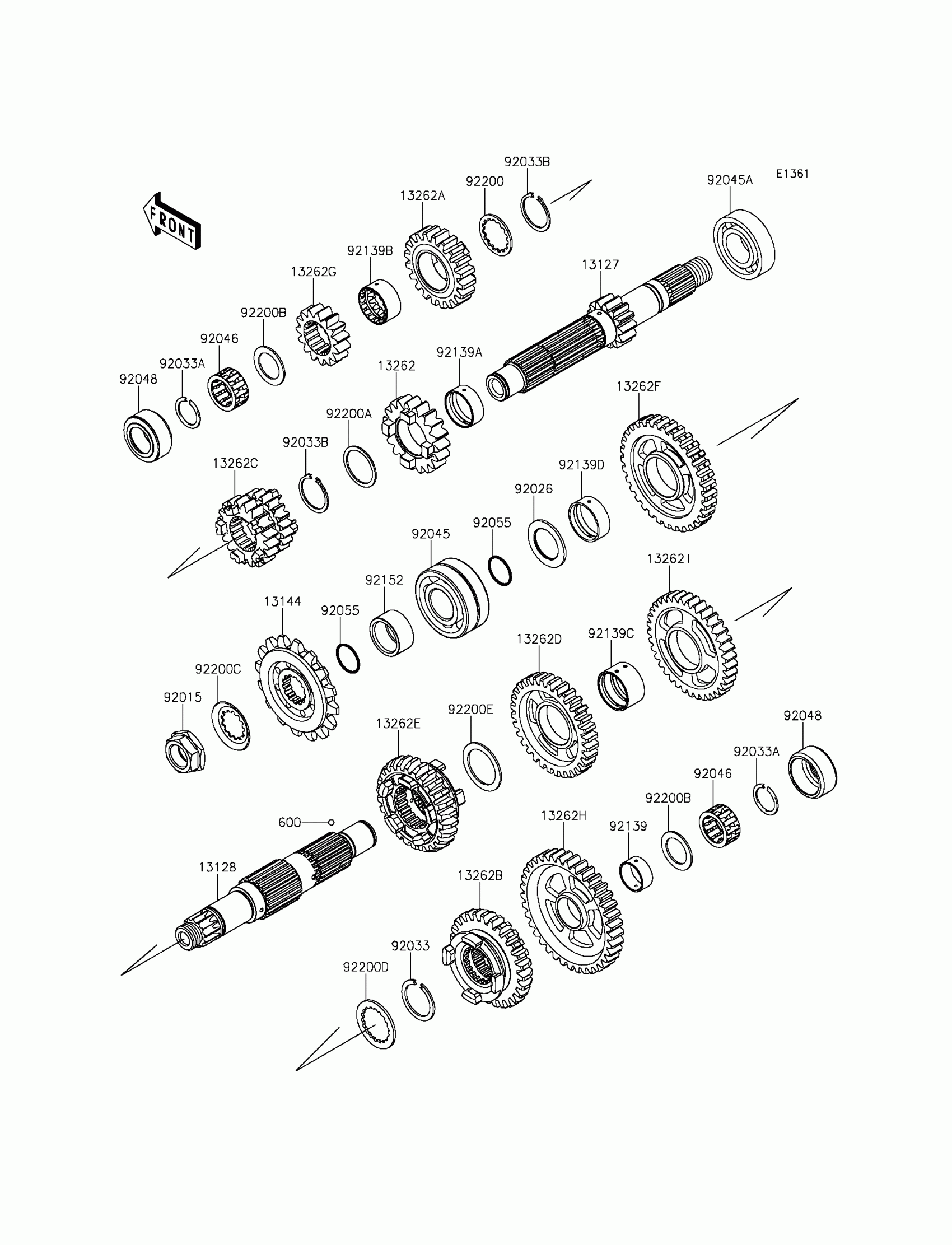

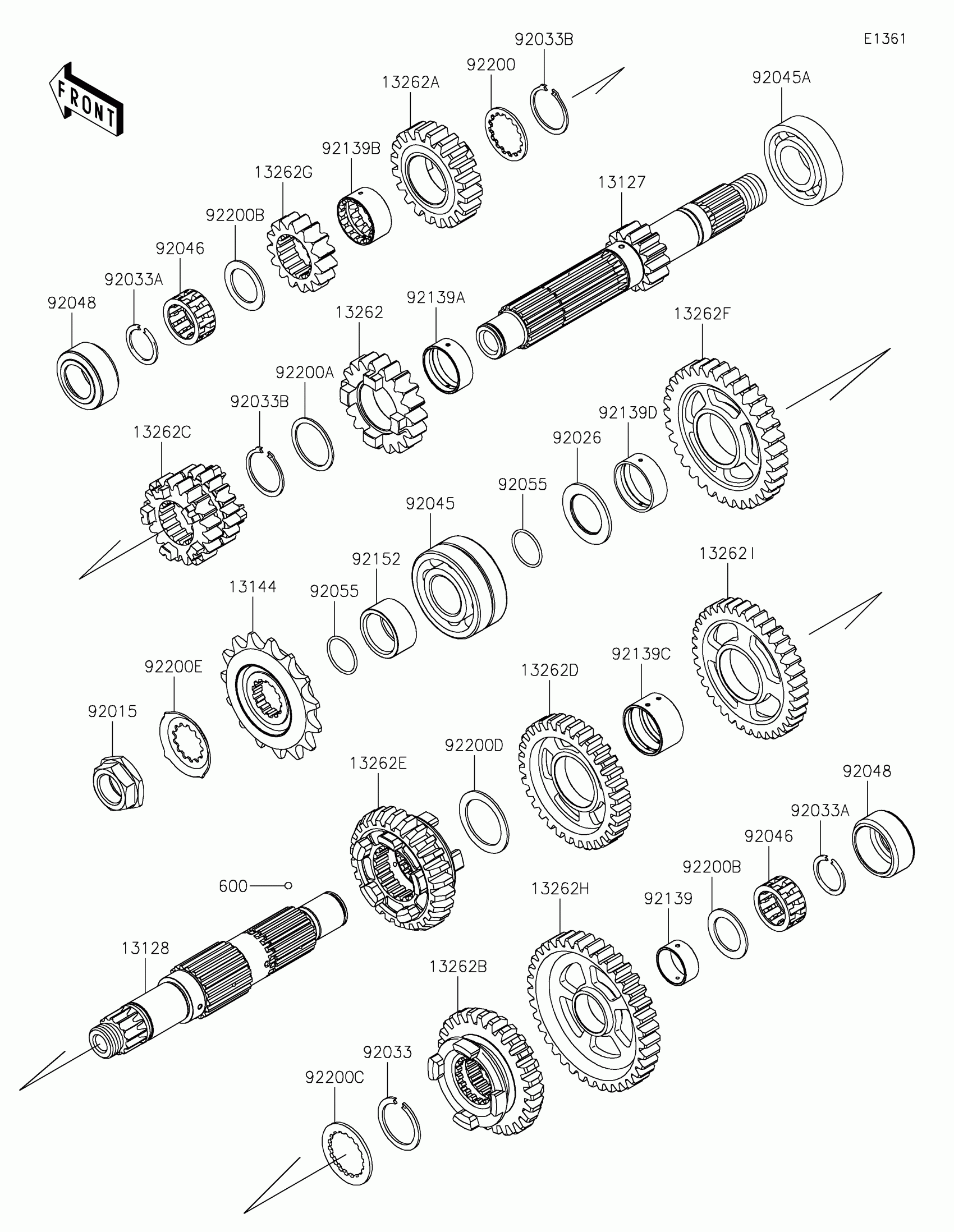

Kawasaki Ninja® ZX™-6R ABS Transmission Diagram

#

Description
Price

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,13T

13127-0647

$239.48

13128

SHAFT-TRANSMISSION OUTPUT

13128-0031

$237.38

13144

SPROCKET-OUTPUT,16T,#520

13144-0038

$49.28

13262

GEAR,INPUT 5TH,19T

13262-0374

$128.14

13262A

GEAR,INPUT 6TH,20T

13262-0375

$147.40

13262B

GEAR,OUTPUT 5TH,27T

13262-0380

$147.40

13262C

GEAR,INPUT 3RD&4TH,20T&20T

13262-0506

$190.65

13262D

GEAR,OUTPUT 4TH,32T

13262-0510

$168.80

13262E

GEAR,OUTPUT 6TH,26T

13262-0582

$147.40

13262F

GEAR,OUTPUT 2ND,33T

13262-0743

$168.80

13262G

GEAR,INPUT 2ND,15T

13262-0950

$128.52

13262H

GEAR,OUTPUT LOW,37T

13262-0951

$169.05

13262I

GEAR,OUTPUT 3RD,37T

13262-0963

$169.05

92015

NUT,20MM

92015-1963

$14.90

92026

SPACER,25.3X39X2.0

92026-1529

$10.90

92033

RING-SNAP,26.9X34X1.5

92033-0047

$6.02

92033A

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033B

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$105.03

92045A

BEARING-BALL,25X52X15

92045-0058

$28.34

92046

BEARING-NEEDLE

92046-1291

$19.95

92048

RACE,30X38X17.3

92048-0007

$26.03

92055

RING-O,21.5X1.5

92055-1293

$5.00

92139

BUSHING,GEAR,LOW OUT

92139-0038

$13.24

92139A

BUSHING,GEAR,5TH IN

92139-0161

$14.42

92139B

BUSHING,GEAR,6TH IN

92139-0162

$20.51

92139C

BUSHING,GEAR,3RD/4TH OUT

92139-0163

$20.51

92139D

BUSHING,GEAR,2ND OUT

92139-0164

$14.42

92152

COLLAR,25X32X15.7

92152-0444

$16.25

92200

WASHER,28.3X34.0X1.6

92200-0050

$4.15

92200A

WASHER,28.1X34.0X1.2

92200-0051

$4.15

92200B

WASHER,22.1X32.0X1.4

92200-0138

$3.73

92200C

WASHER

92200-0863

$3.72

92200D

WASHER,TOOTHED,28X40X2

92200-1277

$11.99

92200E

WASHER,29.9X40X1.5

92200-1278

$11.99
