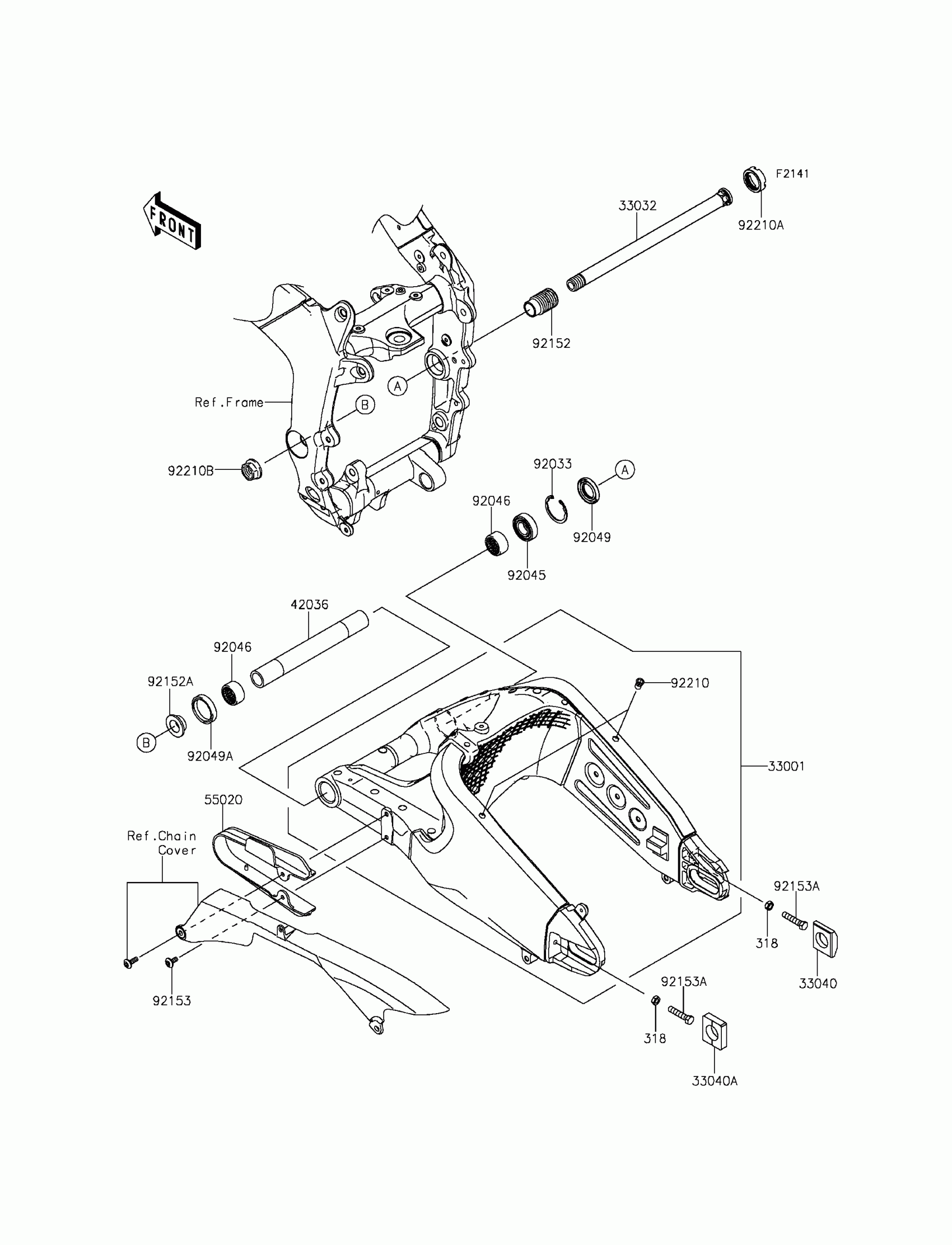

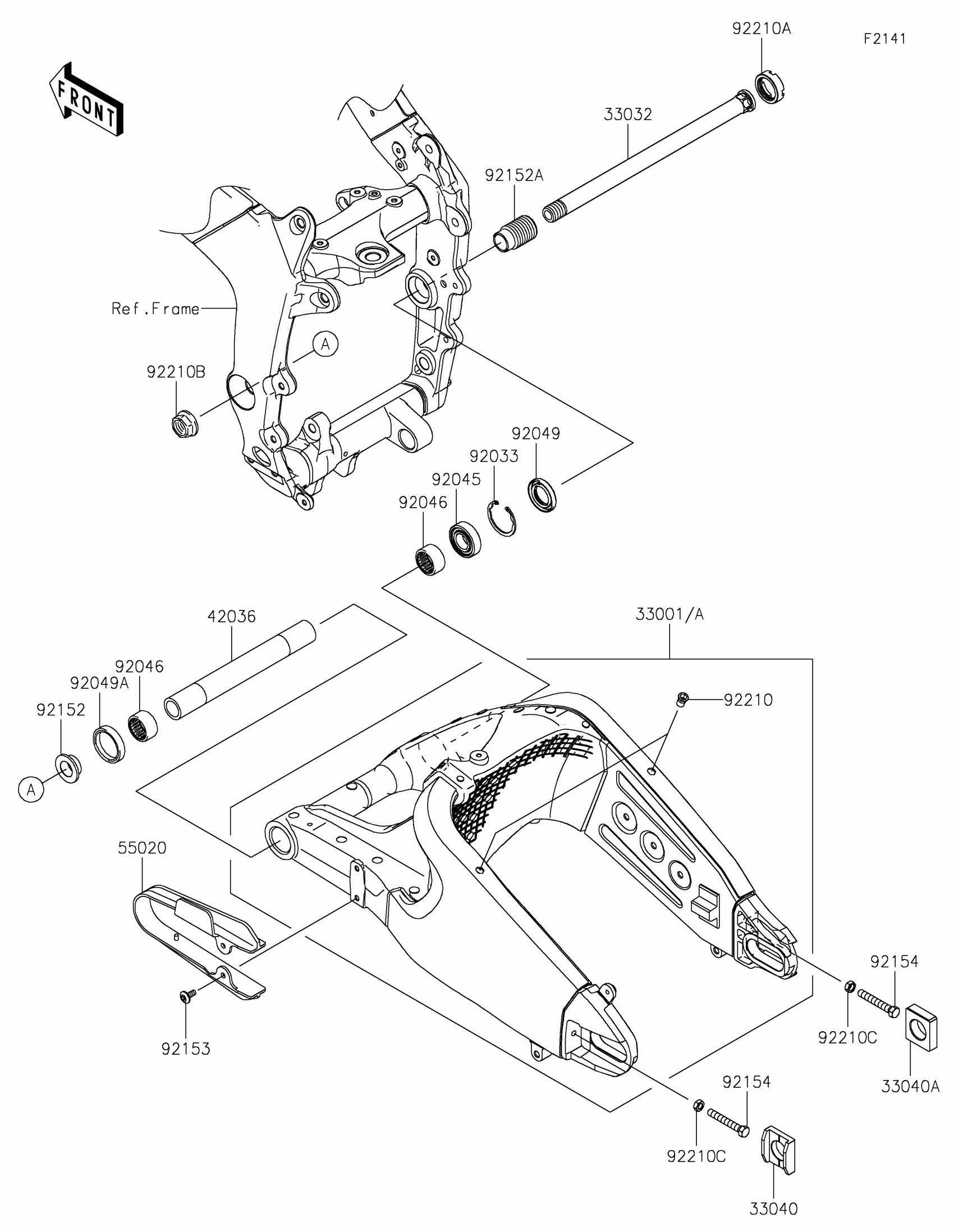

Kawasaki Ninja® ZX™-6R ABS Swingarm Diagram

Description

Price

318

NUT-HEX-SMALL

318BB0800

$3.94

33001

ARM-COMP-SWING

33001-0584

Unavailable

33032

SHAFT-SWING ARM

33032-0013

Unavailable

33040

ADJUSTER-CHAIN,RH

33040-0027

$38.65

33040A

ADJUSTER-CHAIN,RH

33040-1114

$19.28

42036

SLEEVE,SWING ARM PIVOT,L=226

42036-1341

$68.84

55020

GUARD,CHAIN

55020-0384

$29.88

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$9.28

92152

COLLAR,SWING ARM,L=47

92152-0154

$37.14

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

$8.97

92153

BOLT,SOCKET,6X14

92153-0422

$2.41

92153A

BOLT,8X40

92153-0736

$4.15

92210

NUT,6MM

92210-0099

$5.57

92210A

NUT,30MM

92210-0134

$28.51

92210B

NUT,FLANGED,20MM

92210-0320

$11.93
