Description

Price

120

BOLT-SOCKET,5X10

120CB0510

$1.64

180

BOLT-UPSET-WS,5X10

180BA0510

$1.34

461

WASHER-SPRING,5MM

461DB0500

$1.50

555

PIN-SPRING,3X16

555A0316

$1.14

11054

BRACKET

11054-1175

$151.01

13107

SHAFT,ONEWAY CLUTCH SIDE

13107-0168

$63.70

13107A

SHAFT,STARTER SIDE

13107-0174

$13.60

13183

PLATE

13183-1460

$12.92

13194

CLUTCH-ONEWAY

13194-3705

$111.48

14092

COVER

14092-0109

$9.50

16085

GEAR,29T

16085-0101

$116.63

21163

STARTER-ELECTRIC

21163-0734

$610.49

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD

26011-0783

$38.30

27010

SWITCH

27010-0730

$146.40

32099

CASE,STARTER CLUTCH

32099-0026

$105.43

59051

GEAR-SPUR,STARTER SIDE

59051-0094

$77.04

59051A

GEAR-SPUR,ONEWAY CLUTCH SIDE

59051-0728

$109.77

92033

RING-SNAP

92033-3731

$6.16

92046

BEARING-NEEDLE,RS263020

92046-0004

$24.31

92055

RING-O,STARTER

92055-0013

$11.59

92055A

RING-O

92055-0126

$5.65

92055B

RING-O

92055-1455

$9.86

92144

SPRING,BRUSH

92144-1423

$4.14

92151

BOLT,6X35

92151-1874

$2.80

92153

BOLT

92153-0405

$21.69

92153A

BOLT,TORX,10X38

92153-1521

$8.68

92200

WASHER,10.5X37X1.6

92200-0238

$3.90

92200A

WASHER

92200-1019

$7.33

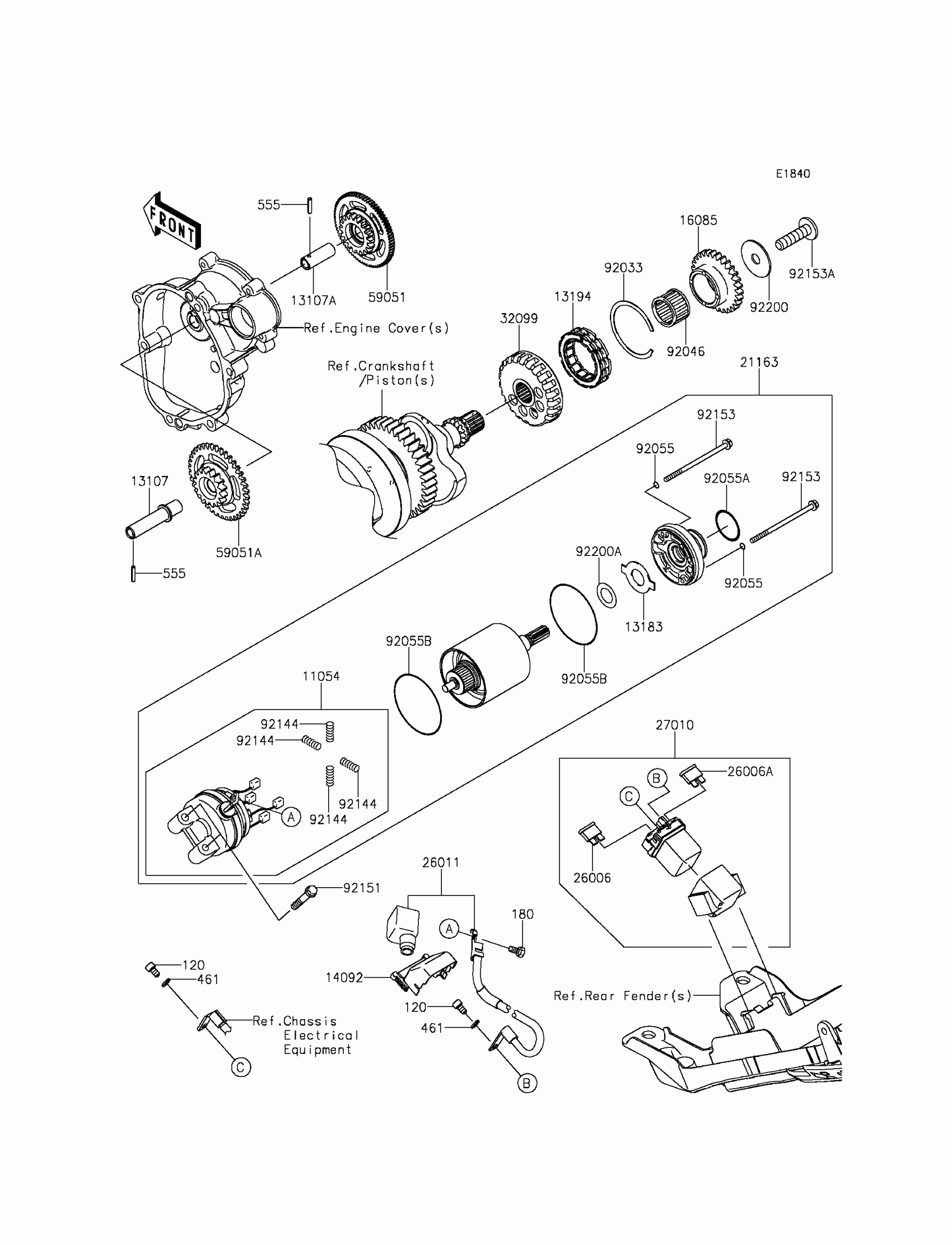

Kawasaki Ninja® ZX™-6R ABS Starter Motor Diagram

BOLT-SOCKET,5X10

BOLT-UPSET-WS,5X10

WASHER-SPRING,5MM

PIN-SPRING,3X16

BRACKET

SHAFT,ONEWAY CLUTCH SIDE

SHAFT,STARTER SIDE

PLATE

CLUTCH-ONEWAY

COVER

GEAR,29T

STARTER-ELECTRIC

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,30A,GREEN

WIRE-LEAD

SWITCH

CASE,STARTER CLUTCH

GEAR-SPUR,STARTER SIDE

GEAR-SPUR,ONEWAY CLUTCH SIDE

RING-SNAP

BEARING-NEEDLE,RS263020

RING-O,STARTER

RING-O

RING-O

SPRING,BRUSH

BOLT,6X35

BOLT

BOLT,TORX,10X38

WASHER,10.5X37X1.6

WASHER
