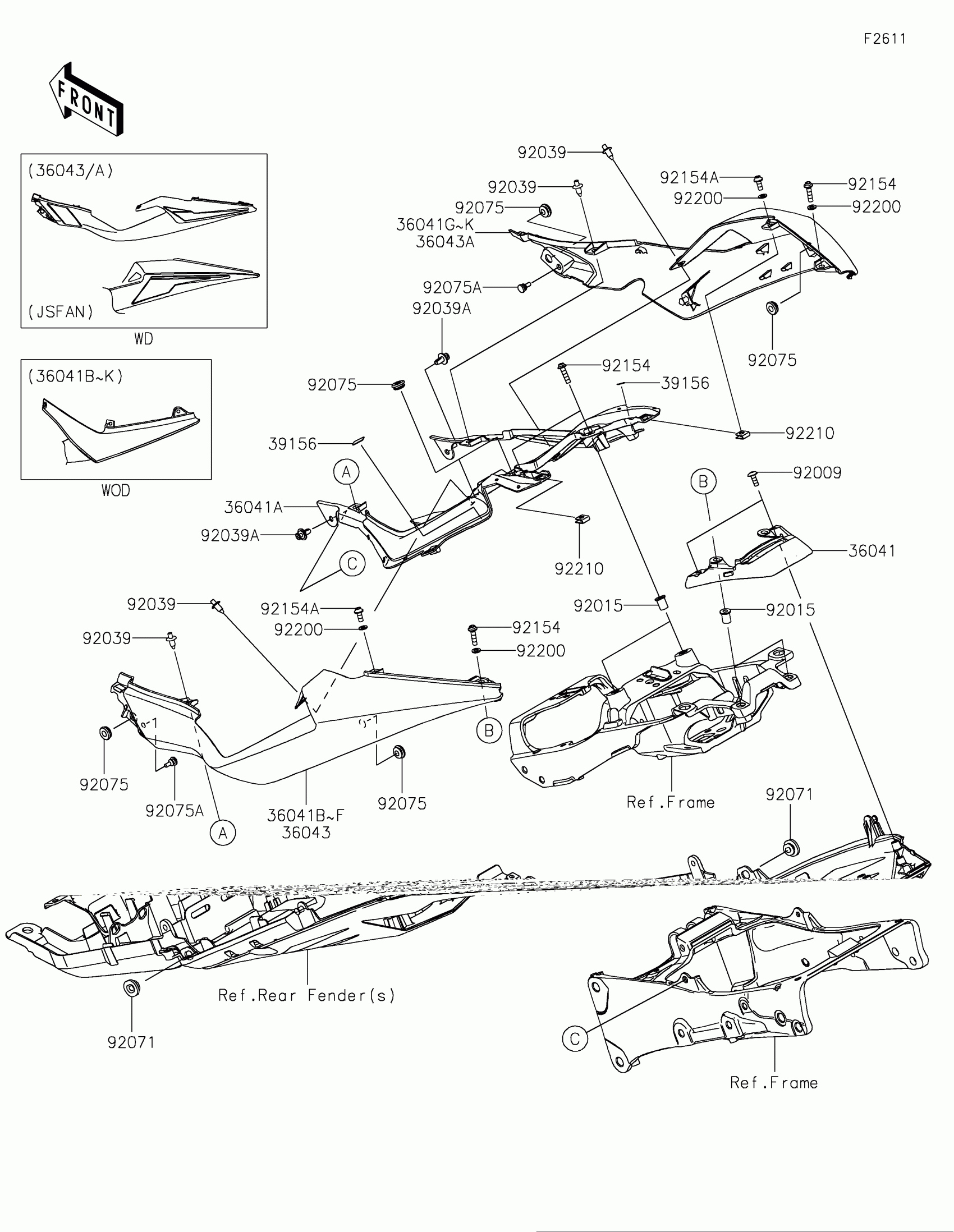

Kawasaki NINJA® ZX™-6R ABS Side Covers Diagram

Description

Price

36041

COVER-TAIL,RR

36041-0045

$23.10

36041A

COVER-TAIL,FR

36041-0050

$75.98

36041B

COVER-TAIL,LH,P.R.WHITE

36041-0051-68N

$217.67

36041C

COVER-TAIL,LH,M.M.D.GRAY

36041-0051-69P

$209.60

36041F

COVER-TAIL,LH,L.GREEN

36041-0051-777

$217.67

36041G

COVER-TAIL,RH,P.R.WHITE

36041-0052-68N

$217.67

36041H

COVER-TAIL,RH,M.M.D.GRAY

36041-0052-69P

$209.60

36041K

COVER-TAIL,RH,L.GREEN

36041-0052-777

$217.67

36043

COVER-TAIL,LH,EBONY

36043-5211-H8

Unavailable

36043A

COVER-TAIL,RH,EBONY

36043-5212-H8

Unavailable

39156

PAD

39156-0632

$4.22

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92039A

RIVET

92039-1227

$1.81

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER,6X10X15

92075-1808

$1.39

92154

BOLT,SOCKET,5X20

92154-0210

$2.12

92154A

BOLT,SOCKET,5X12

92154-1421

$0.95

92200

WASHER,5.2X10X1.0

92200-1820

$0.63

92210

NUT

92210-0571

$3.52
