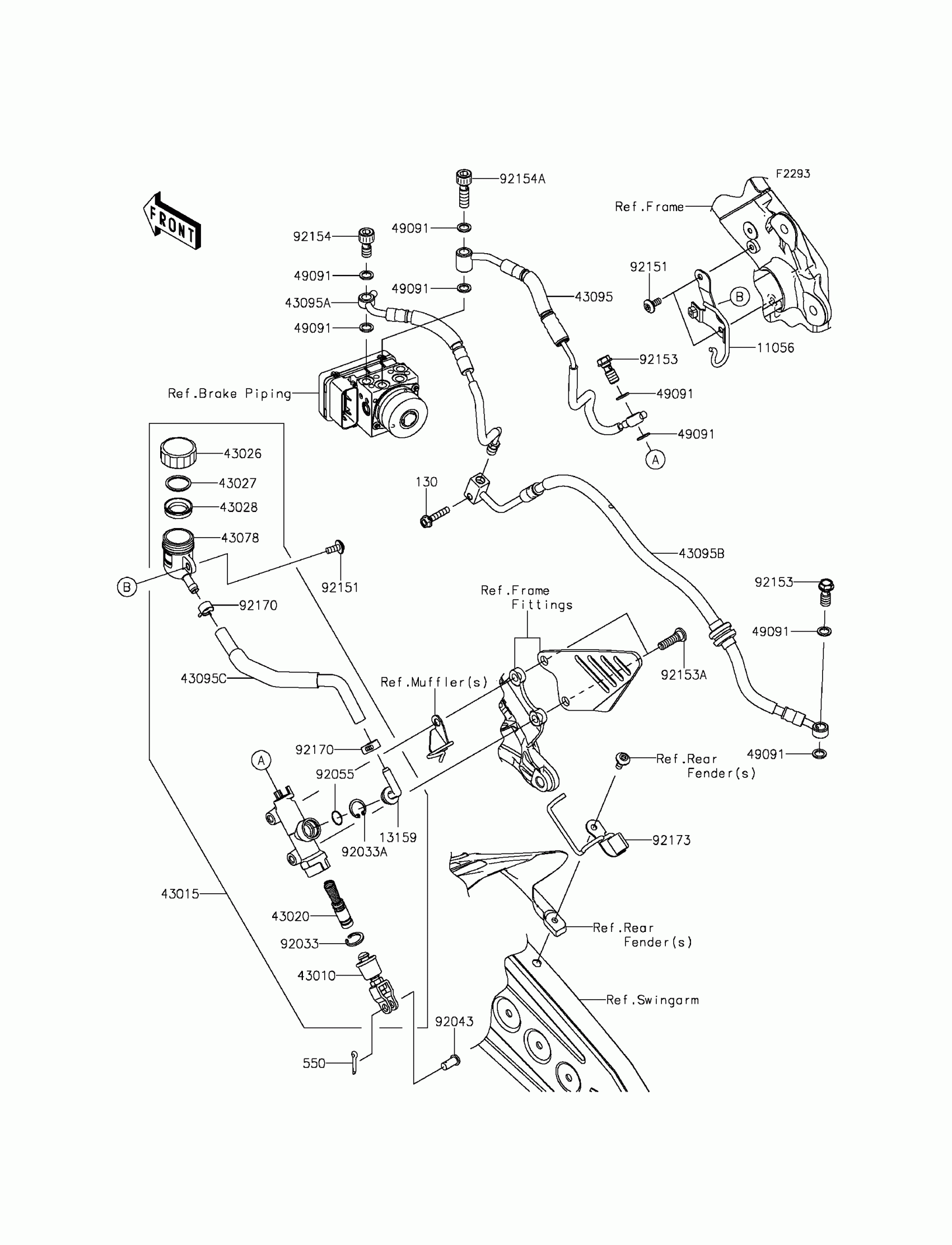

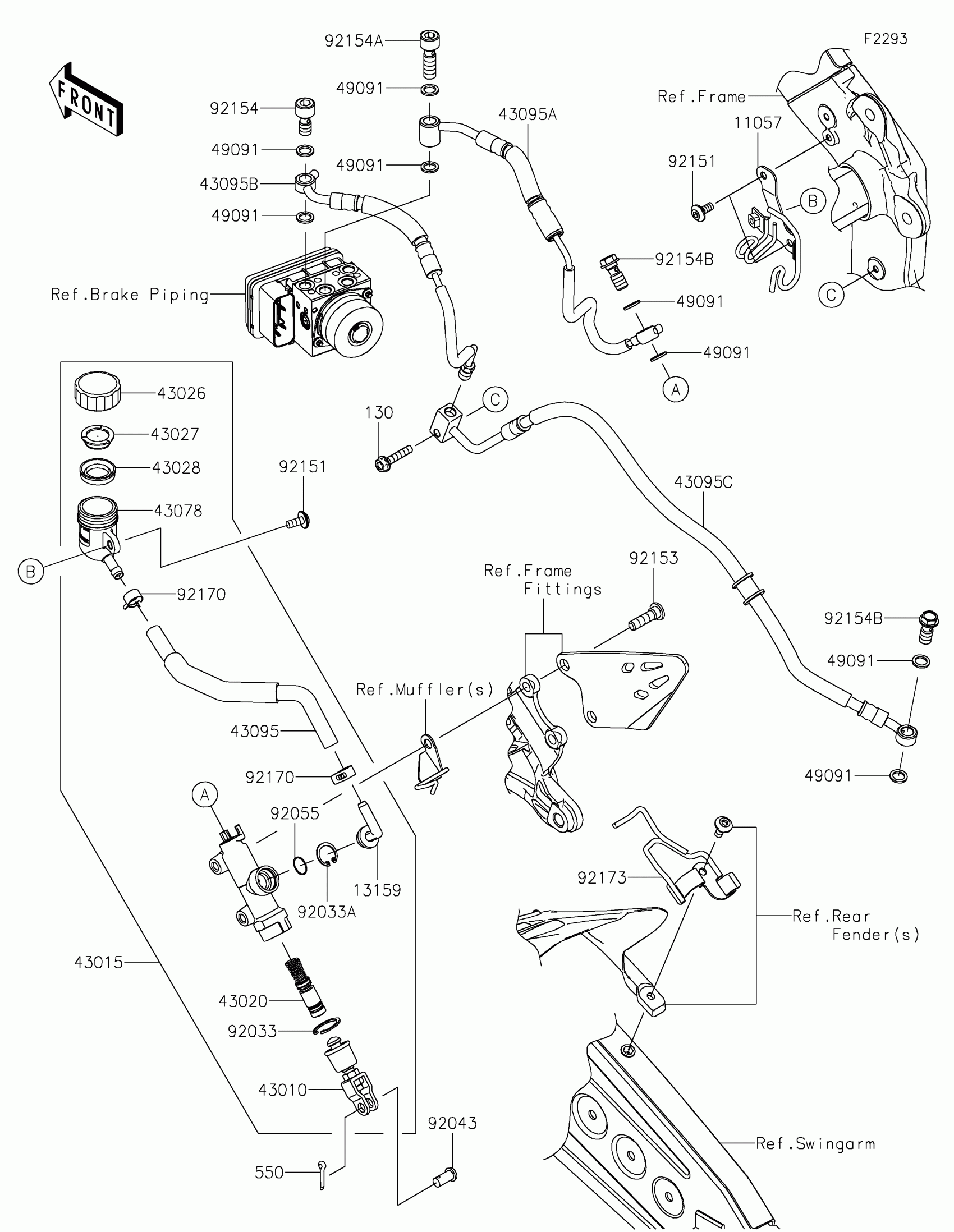

Kawasaki Ninja® ZX™-6R ABS Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X30

130BA0630

$1.13

550

PIN-COTTER,2.0X15

550AA2015

$0.90

11056

BRACKET

11056-2051

$24.49

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0575

$378.68

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1070

$34.54

43027

PLATE-DIAPHRAGM

43027-1054

$4.28

43028

DIAPHRAGM

43028-1073

$18.17

43078

RESERVOIR

43078-1102

$25.03

43095

HOSE-BRAKE,RR,MC-HU,JOINT

43095-0731

$152.61

43095A

HOSE-BRAKE,RR,HU-MC,JOINT

43095-0732

$114.73

43095B

HOSE-BRAKE,RR,HU-CALIPER

43095-0736

$69.01

43095C

HOSE-BRAKE,RR MC

43095-0737

$39.76

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,14.8X2.4

92055-0741

$2.82

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,SOCKET,8X30

92153-1624

$2.98

92154

BOLT,BANJO,10X20.8

92154-1121

$24.66

92154A

BOLT,BANJO,10X32.3

92154-1122

$30.70

92170

CLAMP,HOSE

92170-1091

$3.81

92173

CLAMP

92173-1048

$29.64
