Muffler(s)

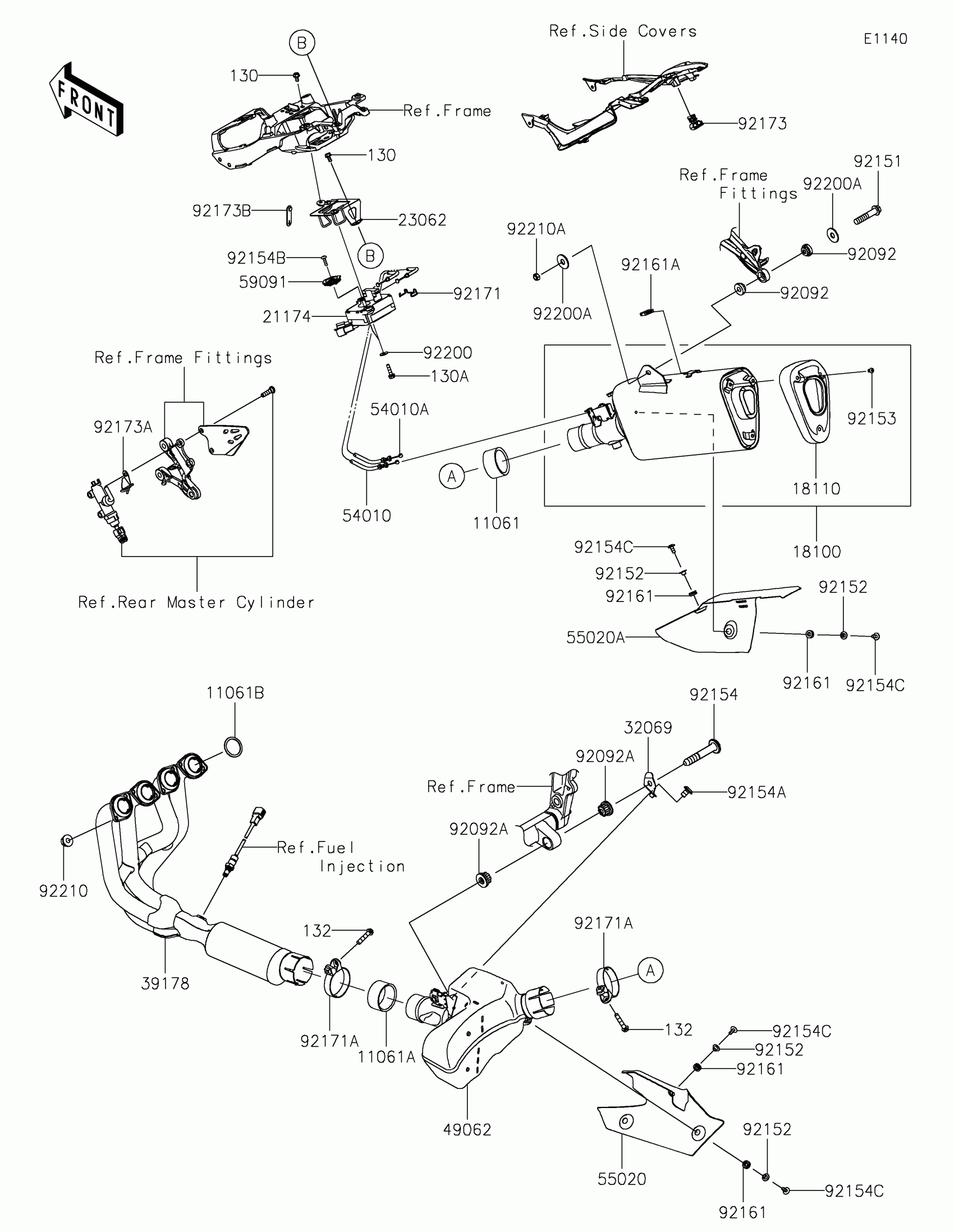

Kawasaki NINJA® ZX™-6R ABS Muffler(s) Diagram
#
11061
GASKET,50.8X62X30
11061-0447
$25.48
11061A
GASKET,54X62X30
11061-0448
$21.89
11061B
GASKET,EXHAUST PIPE
11061-1387
$10.80
18100
BODY-ASSY-MUFFLER
18100-0632
$1,037.29
18110
BODY END-MUFFLER
18110-0250
$120.74
21174
MOTOR-ELECTRIC
21174-0009
$337.67
23062
BRACKET-COMP,ACTUATOR
23062-1155
$110.42
32069
BRACKET-MUFFLER
32069-0936
$10.86
39178
MANIFOLD-COMP-EXHAUST
39178-0452
$1,411.37
49062
PIPE-COMP-EXHAUST
49062-0749
$844.30
54010
CABLE,CLOSE
54010-0659
$92.24
54010A
CABLE,OPEN
54010-0660
$89.47
55020
GUARD,CHAMBER
55020-2433
$134.30
55020A
GUARD,SILENCER
55020-2434
$270.47
59091
PULLEY
59091-0007
$22.29
92092
BUSHING-RUBBER
92092-0018
$11.54
92092A
BUSHING-RUBBER
92092-1081
$24.82
92151
BOLT,FLANGED,8X40
92151-1532
$2.67
92152
COLLAR,6.3X8.3X16
92152-0286
$5.65
92153
BOLT,6X8
92153-0578
$2.55
92154
BOLT,SOCKET,10X61
92154-0125
$13.18
92154A
BOLT,SOCKET,10X16
92154-0126
$7.60
92154B
BOLT,TORX,5X18
92154-0217
$3.71
92154C
BOLT,SOCKET,6X14
92154-0907
$1.97
92161
DAMPER
92161-0308
$3.90
92161A
DAMPER
92161-1228
$7.63
92171
CLAMP
92171-0292
$10.11
92171A
CLAMP,64.5MM
92171-1668
$21.71
92173
CLAMP,CLIP
92173-0799
$14.90
92173A
CLAMP
92173-1053
$11.99
92173B
CLAMP,RUBBER PLATE
92173-1229
$3.94
92200
WASHER
92200-0078
$2.12
92200A
WASHER,8.0X22.0X1.5
92200-0174
$2.61
92210
NUT,8MM
92210-0076
$5.48
92210A
NUT,8MM
92210-0173
$2.12
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X25
130BA0625
$1.20
132
BOLT-FLANGED-SMALL,8X40
132BC0840
$3.72
