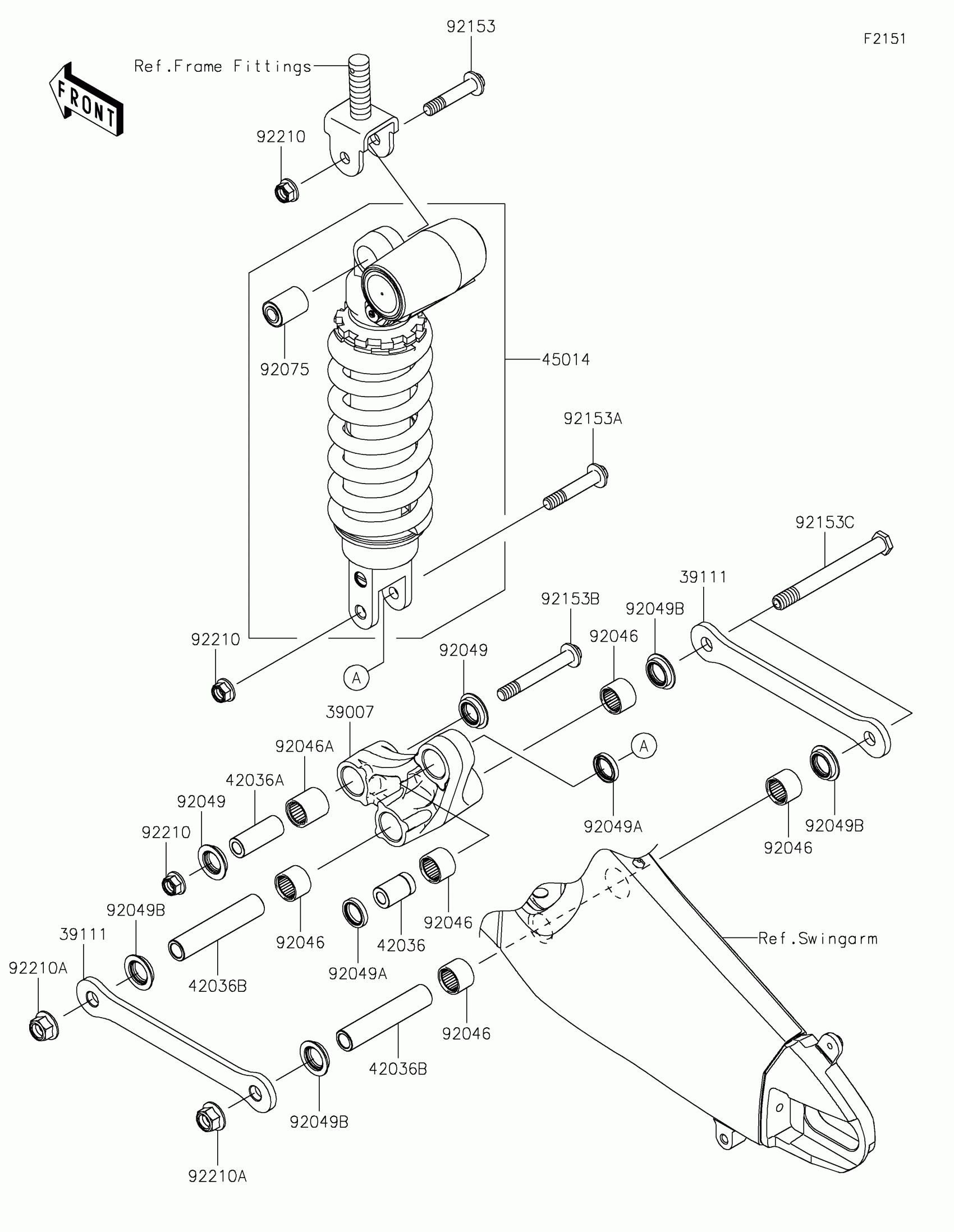

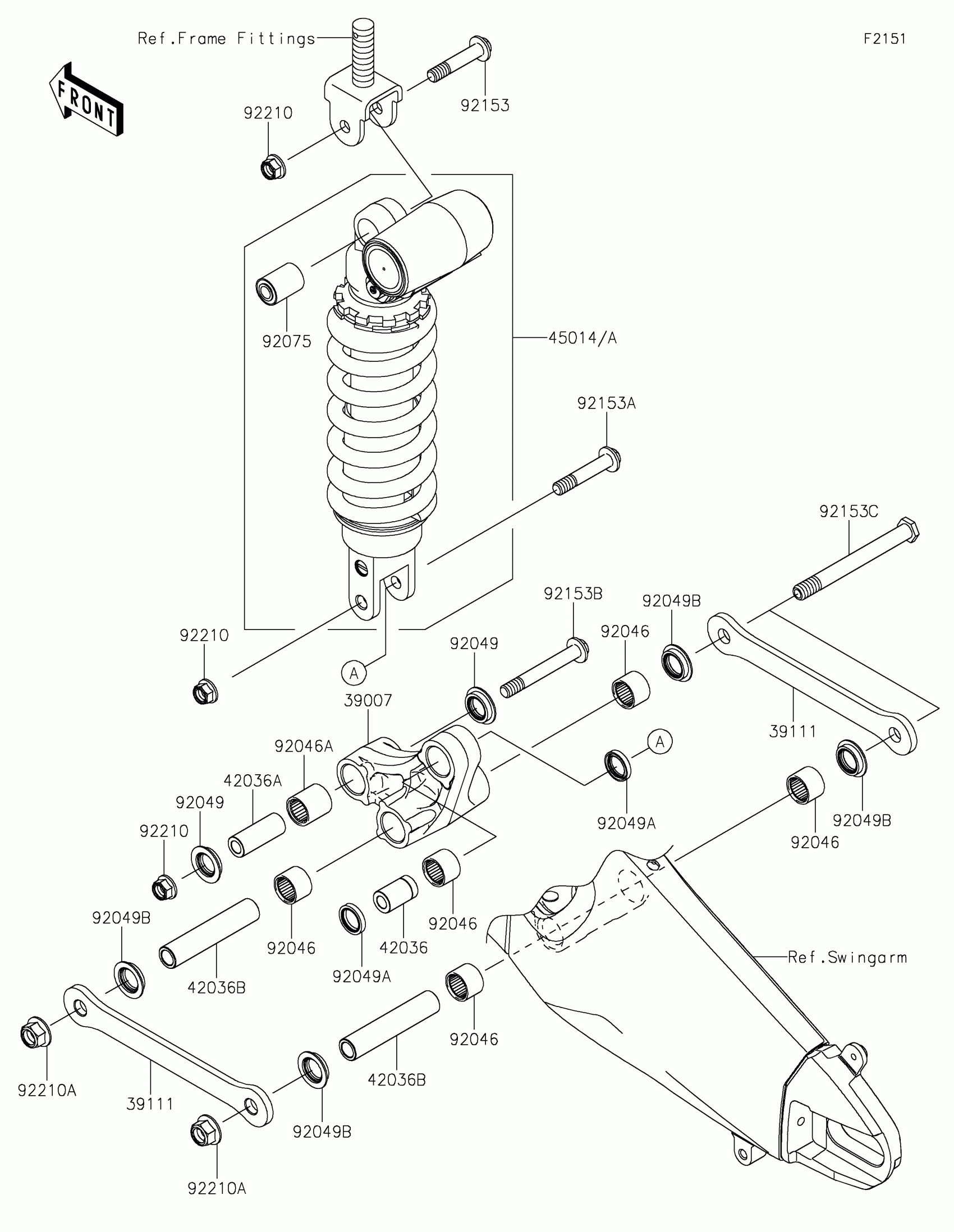

Kawasaki Ninja ZX-6R ABS KRT Edition Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0045

$239.89

39111

ROD-TIE,SUSPENSION

39111-0316

$88.32

42036

SLEEVE,10.1X18X30

42036-1258

$12.35

42036A

SLEEVE,10.1X17X44.5

42036-1342

$11.28

42036B

SLEEVE,12.1X18X90

42036-1360

$15.99

45014

SHOCKABSORBER,SPG GRN+BLACK

45014-0393-37X

$1,044.99

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92049A

SEAL-OIL,MHA18244

92049-1225

$9.28

92049B

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92075

DAMPER,SHOCKABSORBER

92075-1426

$12.32

92153

BOLT,FLANGED,10X51

92153-1545

$7.75

92153A

BOLT,FLANGED,10X55

92153-1546

$7.75

92153B

BOLT,FLANGED,10X77

92153-1547

$7.68

92153C

BOLT,12X114

92153-1662

$22.70

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22
