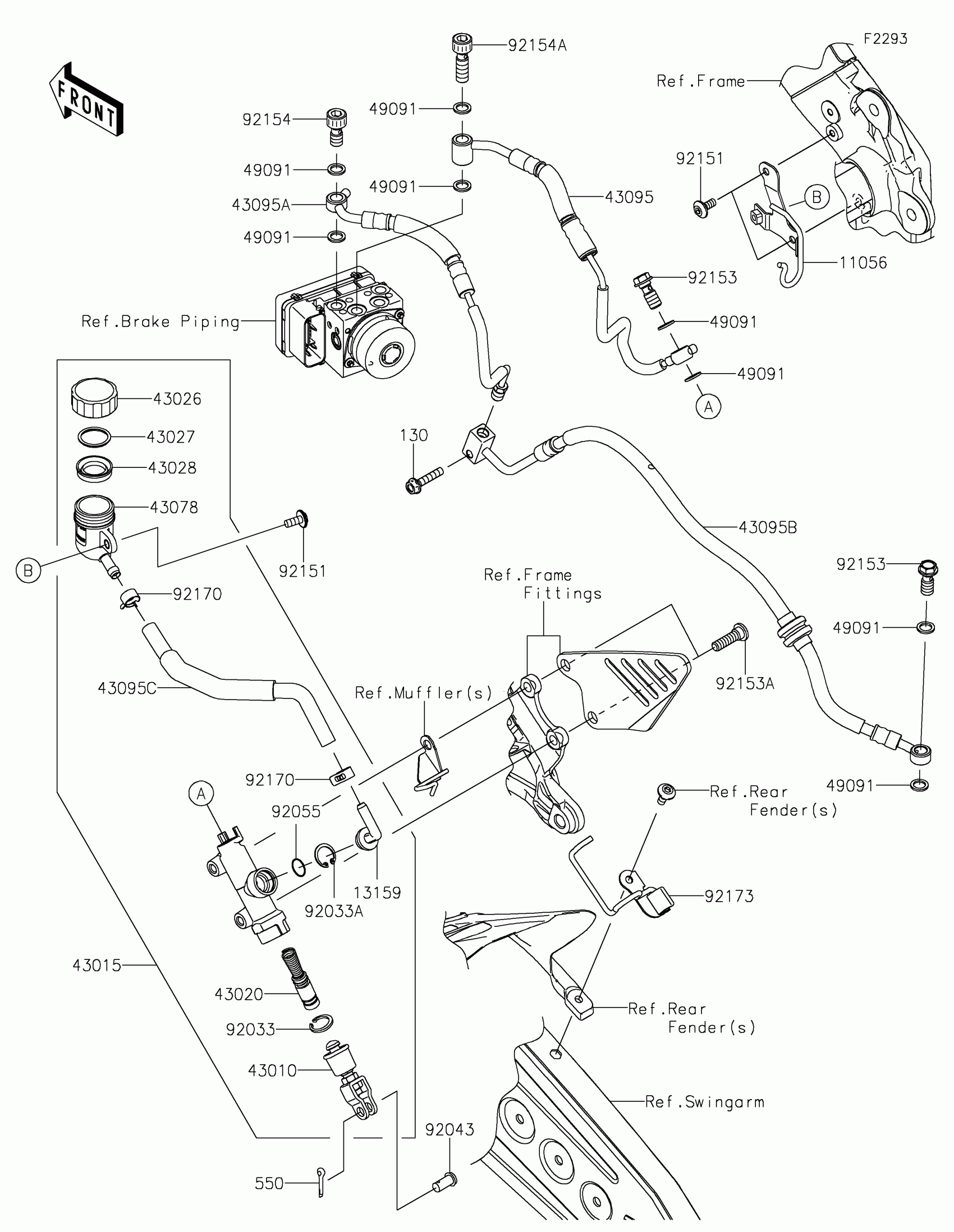

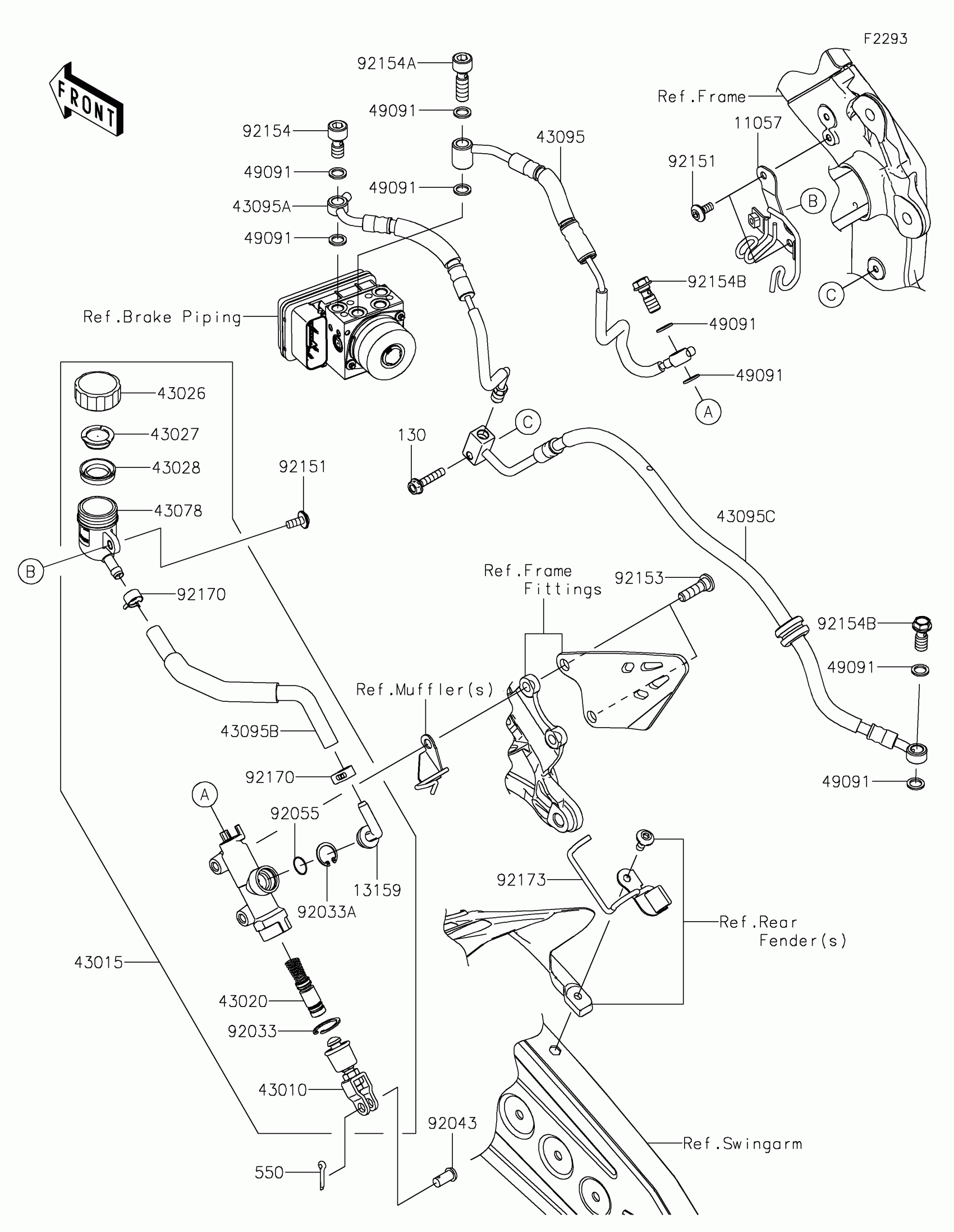

Kawasaki Ninja® ZX-6R ABS KRT Edition Rear Master Cylinder Diagram

Description

Price

11057

BRACKET,RR MASTER CYLINDER

11057-2395

$31.93

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0575

$410.93

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1070

$33.90

43027

PLATE-DIAPHRAGM

43027-1054

$5.67

43028

DIAPHRAGM

43028-1073

$19.45

43078

RESERVOIR

43078-1102

$28.25

43095

HOSE-BRAKE,RR,MC-HU,JOINT

43095-0731

$149.46

43095A

HOSE-BRAKE,RR,HU-MC,JOINT

43095-0732

$112.35

43095B

HOSE-BRAKE,RR MC

43095-0737

$39.02

43095C

HOSE-BRAKE,RR,HU-CALIPER

43095-1628

$67.73

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,SOCKET,8X30

92153-1624

$3.90

92154

BOLT,BANJO,10X20.8

92154-1121

$26.28

92154A

BOLT,BANJO,10X32.3

92154-1122

$30.12

92154B

BOLT,BANJO,10X23

92154-1712

$3.94

92170

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP

92173-1048

$29.08

130

BOLT-FLANGED,6X30

130BA0630

$1.46

550

PIN-COTTER,2.0X15

550AA2015

$1.12
