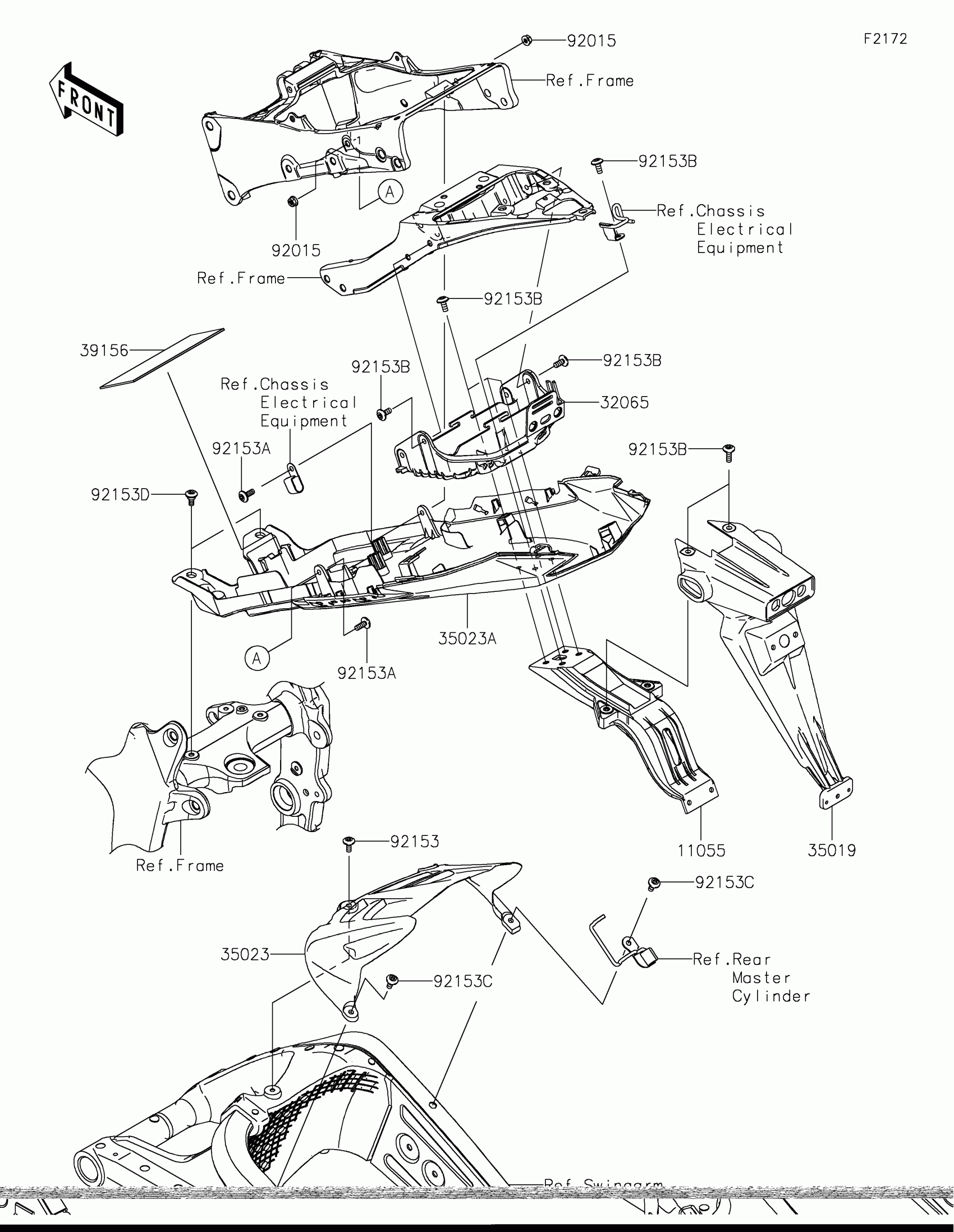

Kawasaki Ninja ZX-6R ABS KRT Edition Rear Fender(s) Diagram

Description

Price

11055

BRACKET,FLAP STAY

11055-1720

$73.22

32065

BRACKET-FENDER

32065-0054

$58.54

35019

FLAP,RR

35019-0570

$30.66

35023

FENDER-REAR,INNER

35023-0171

$56.67

35023A

FENDER-REAR

35023-0351

$88.40

39156

PAD

39156-0530

$5.48

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92153

BOLT,SOCKET,6X14

92153-0422

$2.41

92153A

BOLT,6X18

92153-0816

$2.15

92153B

BOLT,SOCKET,6X14

92153-1446

$2.15

92153C

BOLT,SOCKET,6X18

92153-1675

$2.15

92153D

BOLT,SOCKET,6MM

92153-1956

$3.90
