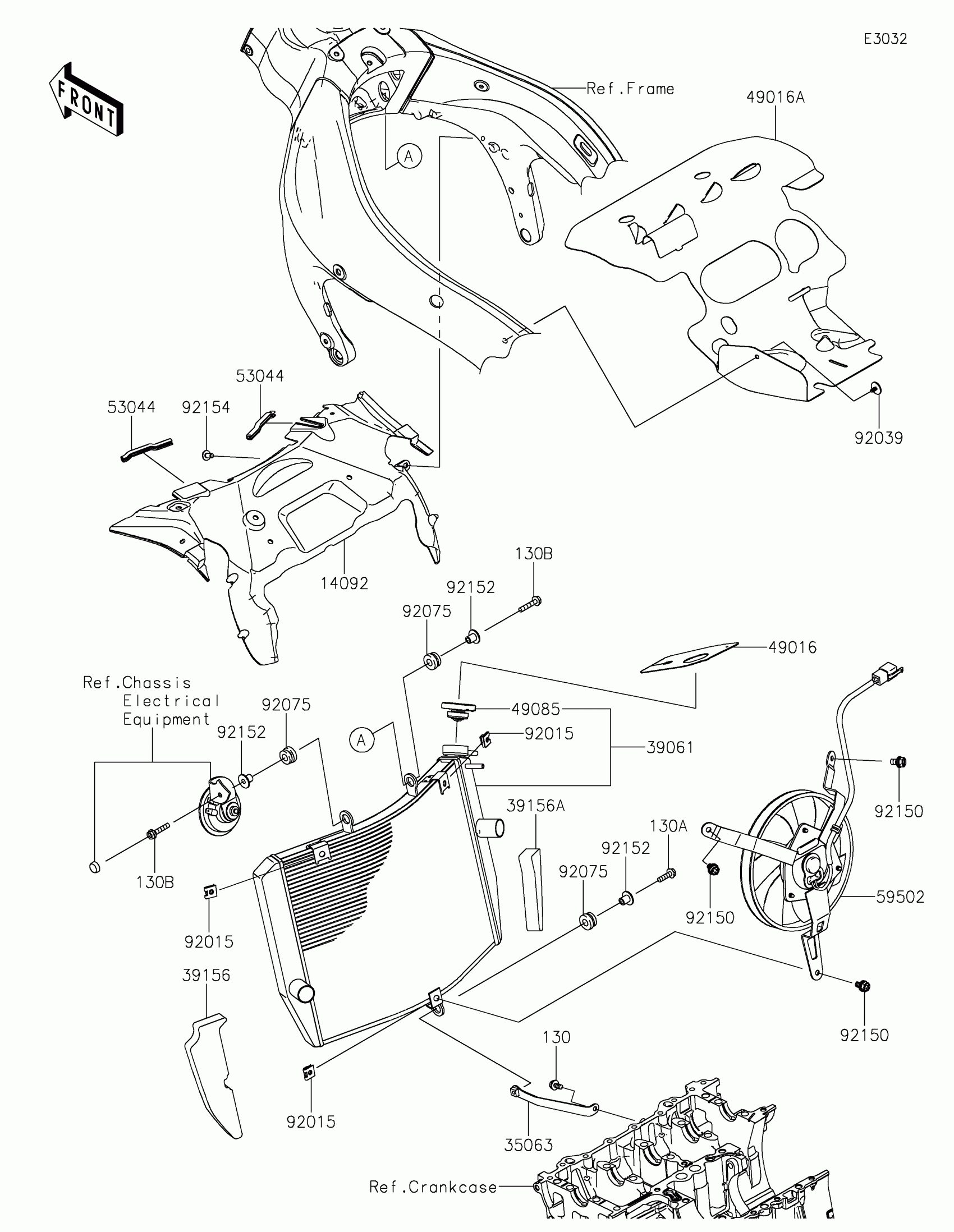

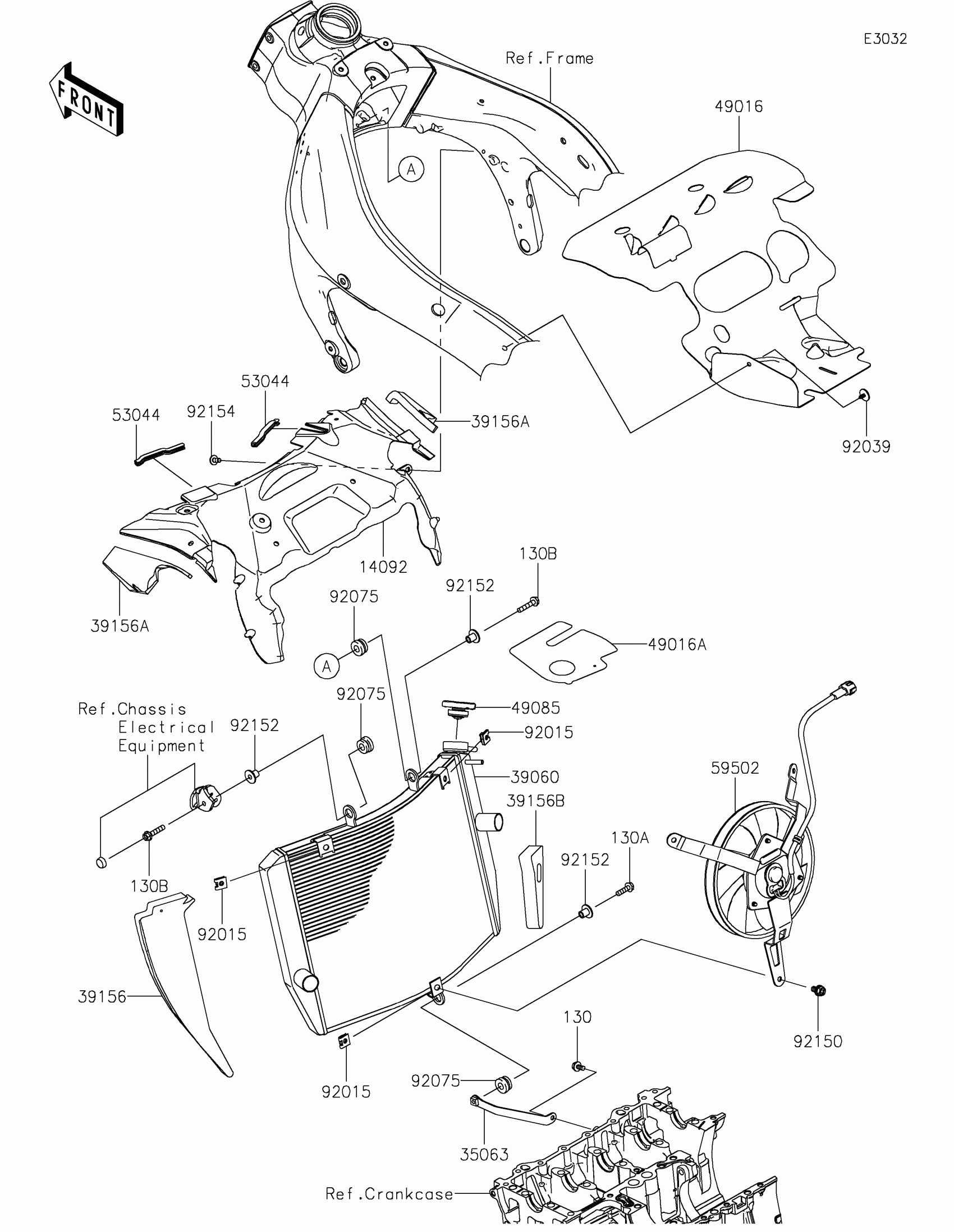

Kawasaki Ninja® ZX-6R ABS KRT Edition Radiator Diagram

Description

Price

14092

COVER,RADIATOR UPP

14092-1089

$68.12

35063

STAY,RADIATOR LOW

35063-0899

$6.45

39060

RADIATOR

39060-0708

$803.78

39156

PAD,RADIATOR LH

39156-2332

$53.39

39156A

PAD,RADIATOR-COVER SIDE(R/L)

39156-2427

$19.90

39156B

PAD,RADIATOR RH

39156-2453

$15.92

49016

COVER-SEAL,ENGINE RR

49016-0604

$53.32

49016A

COVER-SEAL,RESERVOIR UPPER

49016-0664

$12.05

49085

CAP-ASSY-PRESSURE

49085-1078

$52.03

53044

TRIM

53044-0018

$4.65

59502

FAN-ASSY

59502-0623

$783.05

92015

NUT

92015-1487

$4.80

92039

RIVET

92039-0065

$3.90

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92152

COLLAR

92152-0666

$6.75

92154

BOLT,6X12

92154-1892

$1.71

130

BOLT-FLANGED,6X14

130CA0614

$4.12

130A

BOLT-FLANGED,6X22

130CA0622

$2.70

130B

BOLT-FLANGED,6X30

130CA0630

$2.49
