Description

Price

11061

GASKET

11061-0107

$2.58

13107

SHAFT,PUMP,RH

13107-0132

$55.77

13107A

SHAFT,PUMP,LH

13107-0202

$46.93

16097

FILTER-ASSY-OIL

16097-0008

$14.50

16130

VALVE-ASSY-RELIEF

16130-1059

$41.98

16142

COVER-PUMP

16142-0057

$47.81

16142A

COVER-PUMP,WATER

16142-0732

$156.71

16154

ROTOR-PUMP

16154-0057

$75.22

16160

BODY,WATER PUMP

16160-0815

$136.13

32033

PIPE,OIL FILTER

32033-1535

$12.96

32099

CASE,OIL FILTER&COOLER

32099-0727

$117.04

49063

SEAL-MECHANICAL

49063-1055

$20.06

49065

FILTER-OIL

49065-0024

$28.49

55020

GUARD,OIL FILTER

55020-0358

$16.72

59051

GEAR-SPUR,37T

59051-0092

$95.29

59256

IMPELLER

59256-0555

$42.34

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,4X13.8

92042-030

$3.92

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL

92049-0798

$28.98

92055

RING-O,OIL FILTER

92055-1503

$9.51

92055A

RING-O,WATER PUMP COVER

92055-1532

$15.60

92055B

RING-O,59.6X2.4

92055-3018

$6.22

92150

BOLT,SOCKET,5X20

92150-1019

$4.26

92153

BOLT,FLANGED,8X30

92153-1086

$2.90

92153A

BOLT,FLANGED,6X75

92153-1649

$2.61

92153B

BOLT,SOCKET,6X22

92153-1792

$3.90

92161

DAMPER

92161-0070

$4.49

92200

WASHER

92200-0317

$4.20

130

BOLT-FLANGED,6X10

130BD0610

$3.67

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

551

PIN-DOWEL,4X8

551A0408

$0.78

670

O RING,18MM

670D2018

$1.91

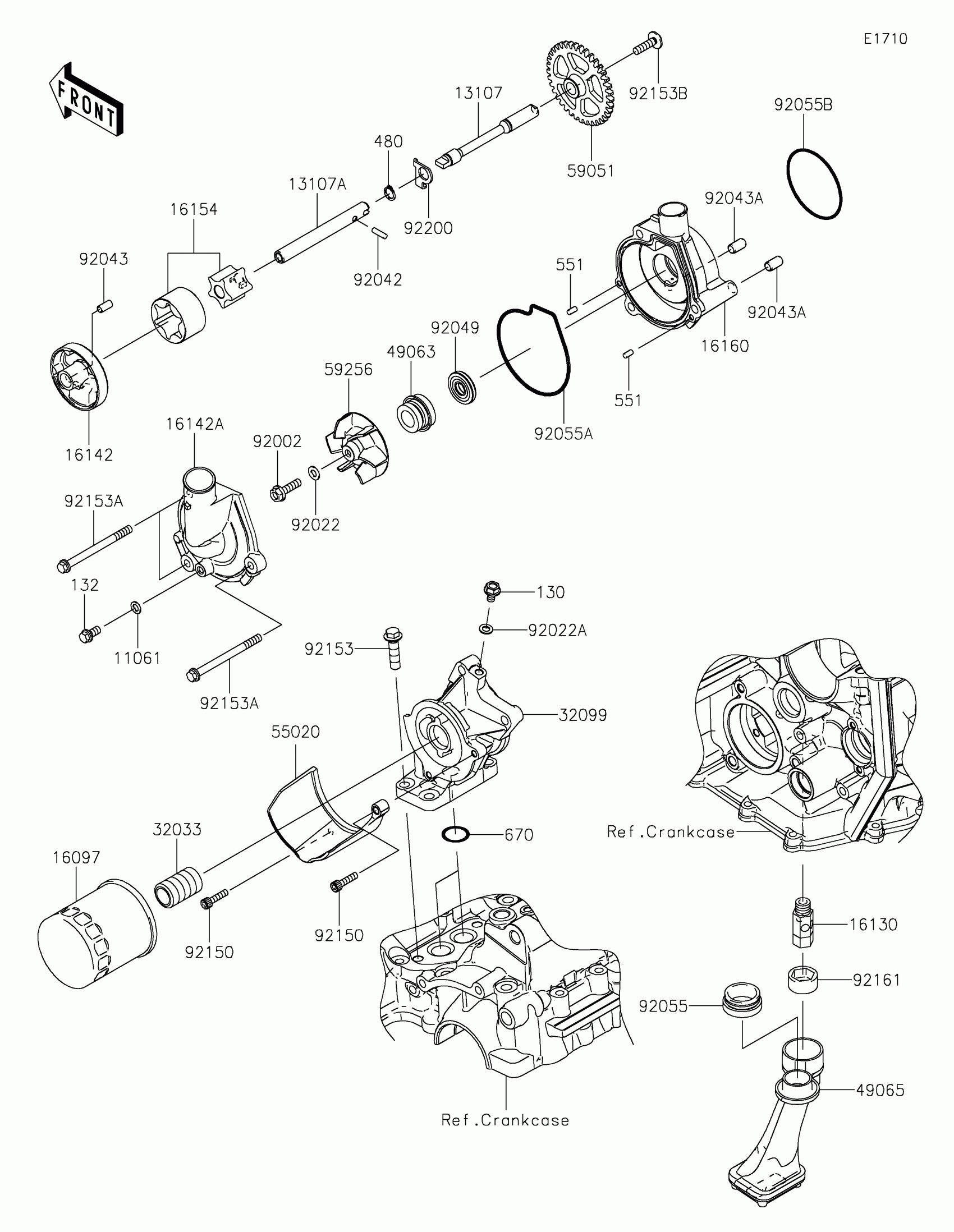

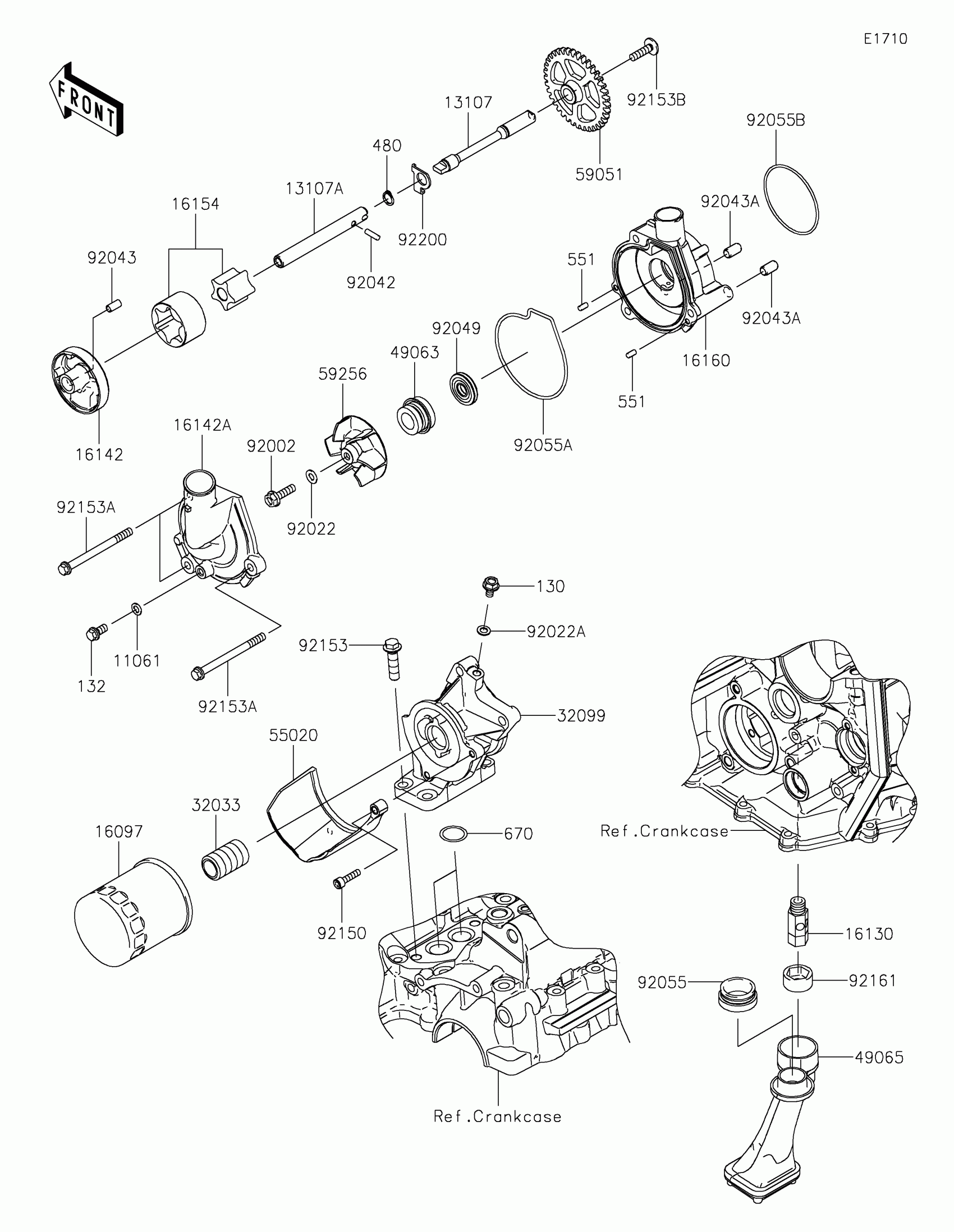

Kawasaki Ninja® ZX-6R ABS KRT Edition Oil Pump/Oil Filter Diagram
