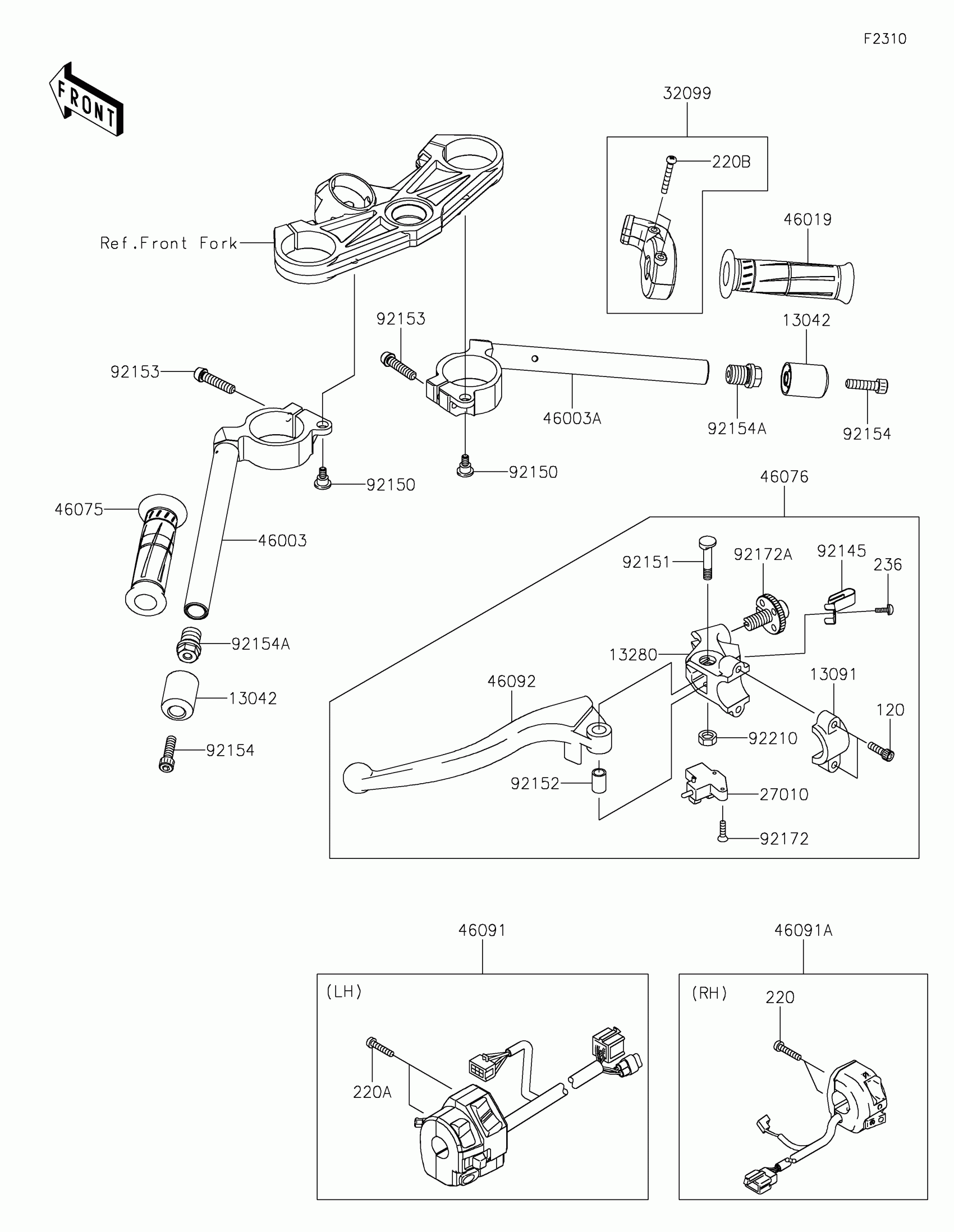

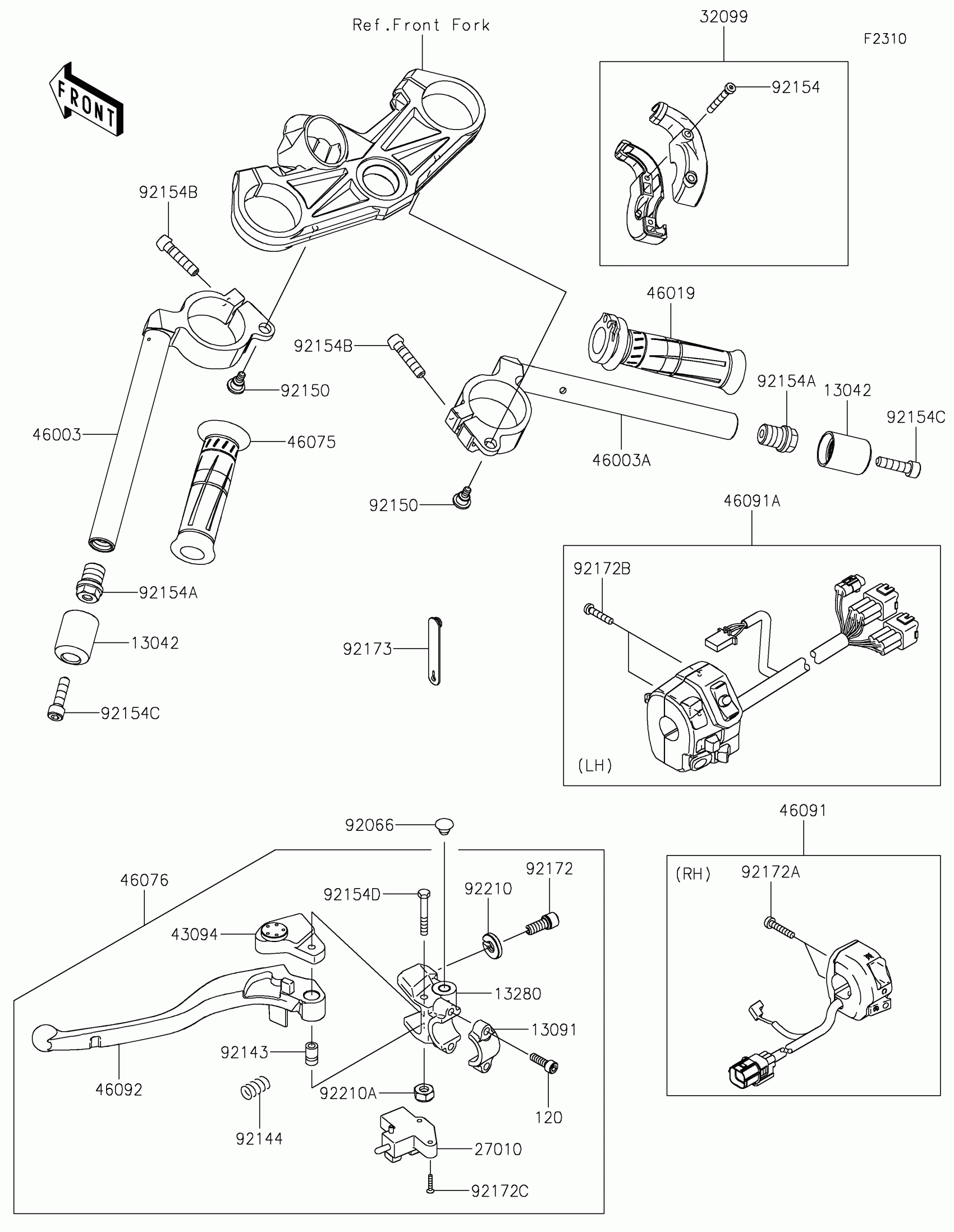

Kawasaki Ninja ZX-6R ABS KRT Edition Handlebar Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CA0620

$1.28

13042

WEIGHT,HANDLE

13042-5001

$45.66

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13280

HOLDER,CLUTCH LEVER

13280-1160

$48.11

220

SCREW-PAN-CROS,5X22

220AB0522

$0.89

220A

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220B

SCREW-PAN-CROS,5X35

220AB0535

$1.49

236

SCREW-PAN-WSP-CROS,4X10

236AB0410

$1.34

27010

SWITCH,CLUTCH

27010-0855

$29.57

32099

CASE,THROTTLE

32099-0049

$25.10

46003

HANDLE,LH

46003-0600

$209.76

46003A

HANDLE,RH

46003-0601

$209.76

46019

GRIP-ASSY,THROTTLE

46019-0020

$37.95

46075

GRIP,LH

46075-0068

$14.27

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0126

$114.61

46091

HOUSING-ASSY-CONTROL,LH

46091-0258

$193.43

46091A

HOUSING-ASSY-CONTROL,RH

46091-0261

$153.18

46092

LEVER-GRIP,CLUTCH

46092-0006

$14.10

92145

SPRING

92145-1286

$5.19

92150

BOLT,6MM

92150-1090

$5.69

92151

BOLT

92151-1523

$5.69

92152

COLLAR

92152-0103

$14.34

92153

BOLT,SOCKET,8X35

92153-0907

$4.34

92154

BOLT,SOCKET,8X30

92154-0502

$2.84

92154A

BOLT,17X18

92154-1902

$14.30

92172

SCREW,3X16

92172-0183

$1.57

92172A

SCREW,ADJUST NUT

92172-1060

$39.89

92210

NUT,LOCK,6MM

92210-0006

$1.76
