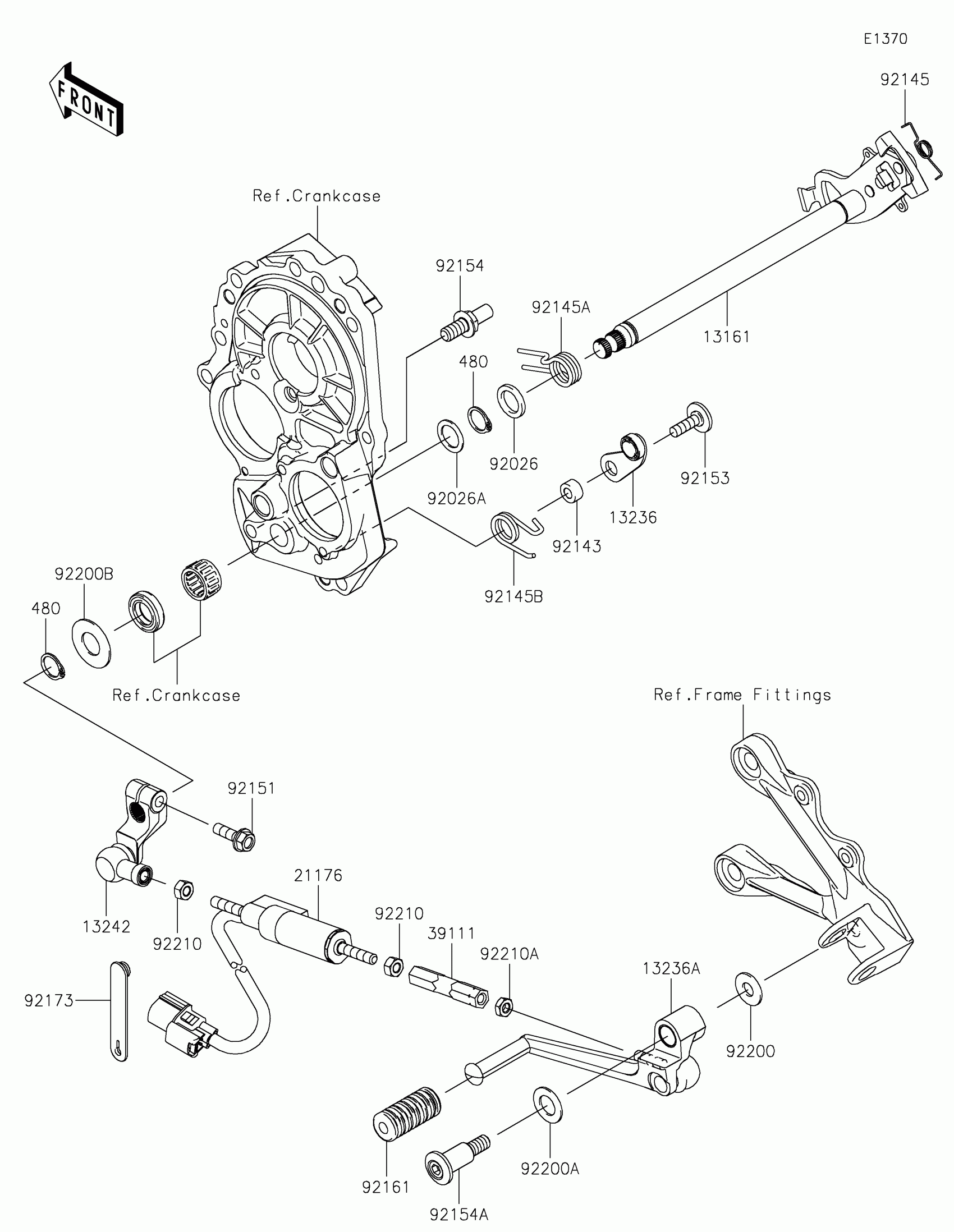

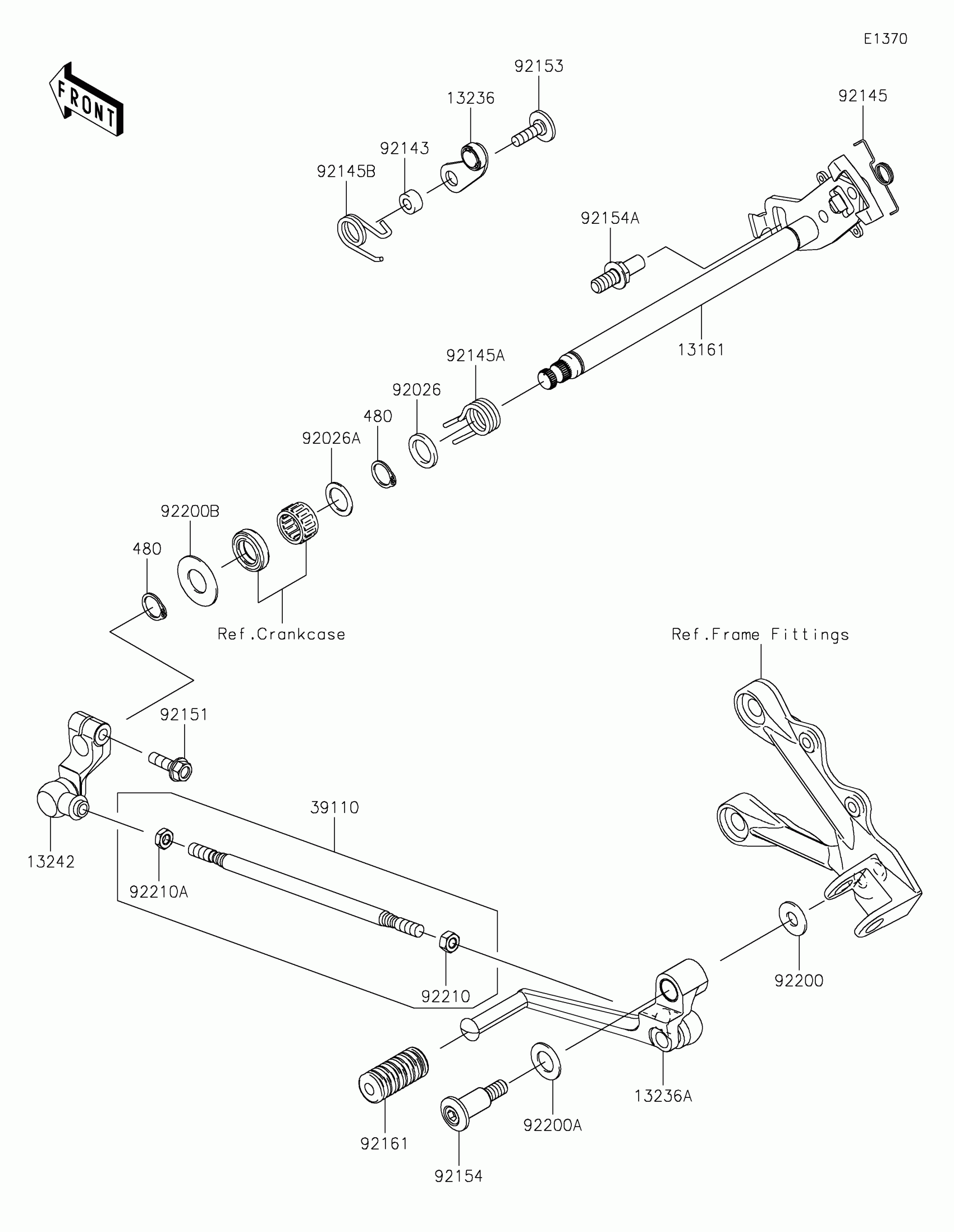

Kawasaki Ninja® ZX-6R ABS KRT Edition Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0611

$89.38

13236

LEVER-COMP,POSITION

13236-0114

$13.10

13236A

LEVER-COMP,CHANGE PEDAL

13236-0809

$112.81

13242

LEVER-ASSY-CHANGE

13242-0155

$53.04

21176

SENSOR,QUICK SHIFTER

21176-0901

$226.15

39111

ROD-TIE

39111-0360

$30.73

92026

SPACER,14X20X2.3

92026-0107

$5.33

92026A

SPACER,14X20X1.0

92026-1534

$4.31

92143

COLLAR

92143-1595

$9.51

92145

SPRING

92145-0414

$9.26

92145A

SPRING,RETURN

92145-0415

$11.82

92145B

SPRING,DRUM POSITION

92145-0717

$5.10

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92153

BOLT,6X20

92153-1505

$7.75

92154

BOLT,RETURN SPRING

92154-1838

$9.07

92154A

BOLT,SOCKET,8X37

92154-4342

$11.02

92161

DAMPER,CHANGE PEDAL

92161-2389

$6.18

92173

CLAMP

92173-1526

$3.94

92200

WASHER,8.5X20X1.5

92200-0198

$3.35

92200A

WASHER,12.5X22X1.2

92200-0199

$3.35

92200B

WASHER

92200-0265

$2.61

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00
