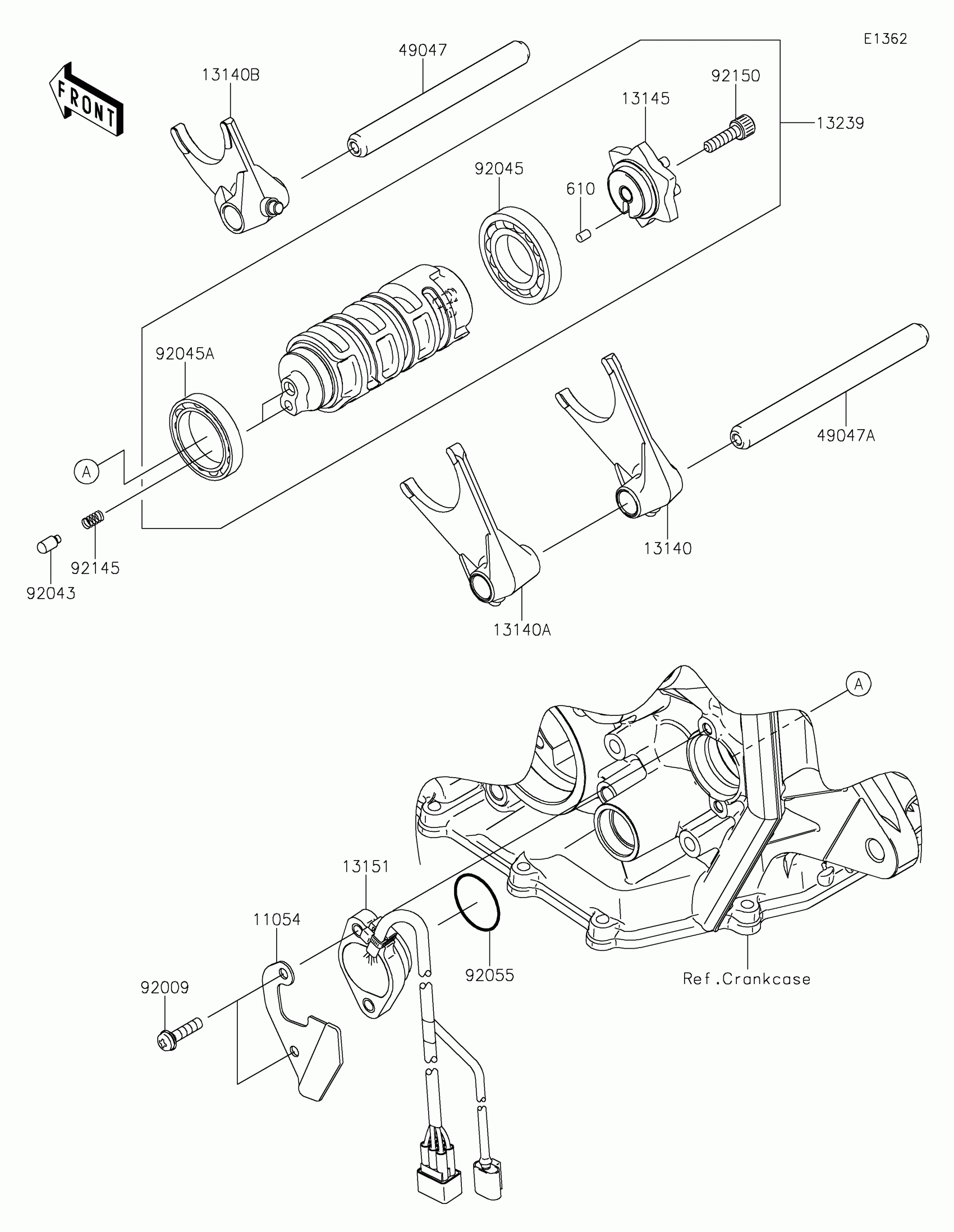

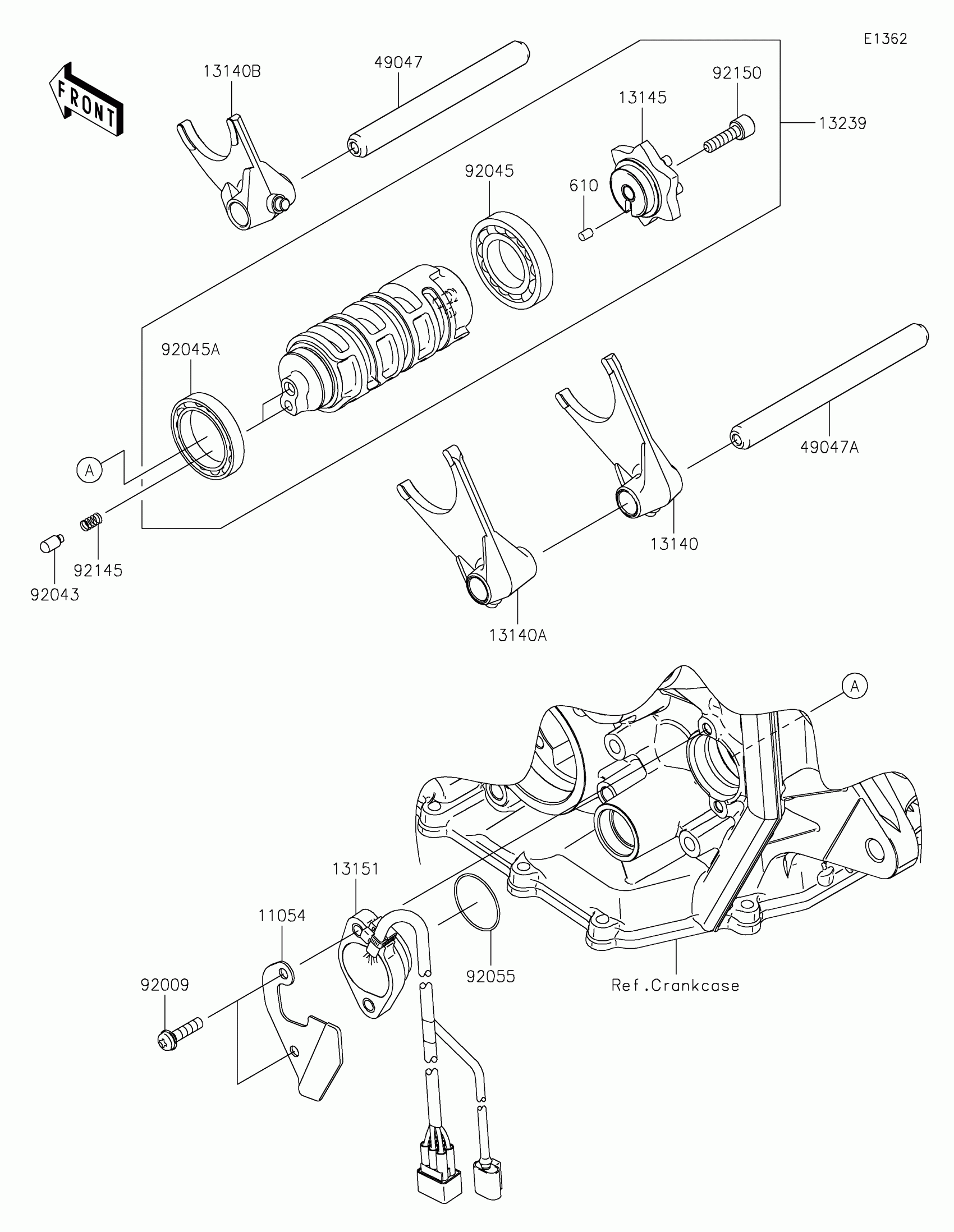

Kawasaki Ninja® ZX-6R ABS KRT Edition Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11054

BRACKET

11054-1840

$7.75

13140

FORK-SHIFT,OUTPUT,RH

13140-0041

$104.02

13140A

FORK-SHIFT,OUTPUT,LH

13140-0042

$104.02

13140B

FORK-SHIFT,INPUT

13140-0048

$118.21

13145

CAM-CHANGE DRUM

13145-0029

$47.66

13151

SWITCH-COMP,GEAR POSITION

13151-0607

$129.37

13239

DRUM-ASSY-CHANGE

13239-0024

$202.80

49047

ROD-SHIFT,INPUT

49047-0026

$29.16

49047A

ROD-SHIFT,OUTPUT

49047-0027

$29.16

92009

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.83

92043

92043-1654

$3.74

92045

BEARING-BALL,16005

92045-1045

$28.25

92045A

BEARING-BALL,6806

92045-1152

$45.82

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-1414

$4.14

92150

BOLT,SOCKET,6X20

92150-1880

$3.94

610

ROLLER,4X6

610A0406

$4.31
