Description

Price

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X70

130BB0670

$5.93

13272

PLATE,FUEL TANK,RR

13272-0505

$7.60

14069

BREATHER,FUEL TANK

14069-1004

$10.19

14092

COVER,TANK,LH

14092-1087

$11.83

14092A

COVER,TANK,RH

14092-1088

$11.83

27012

HOOK

27012-0115

$5.65

32052

BRACKET-TANK

32052-0727

$49.58

39156

PAD,FUEL TANK

39156-0469

$15.62

51049

CAP-TANK,FUEL

51049-0039

$136.23

51090

TANK-COMP-FUEL,EBONY

51090-5015-H8

$1,228.76

92037

CLAMP,TUBE

92037-010

$3.92

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER

92075-1983

$4.18

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X12

92151-1219

$6.07

92151A

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR,6.3X10X14.5

92152-0091

$11.71

92152A

COLLAR,6.8X10X60

92152-1182

$4.83

92153

BOLT,SOCKET,6X10

92153-0410

$2.80

92153A

BOLT,SOCKET,5X16

92153-1616

$1.34

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0738

$5.54

92161A

DAMPER,FUEL TANK,RR

92161-1330

$6.18

92192

TUBE,BREATHER

92192-0798

$5.48

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

702

TUBE-RUBBER,6X9X660

702A06660

$5.48

702A

TUBE-RUBBER,6X850

702A06850

$18.20

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-147

$7.34

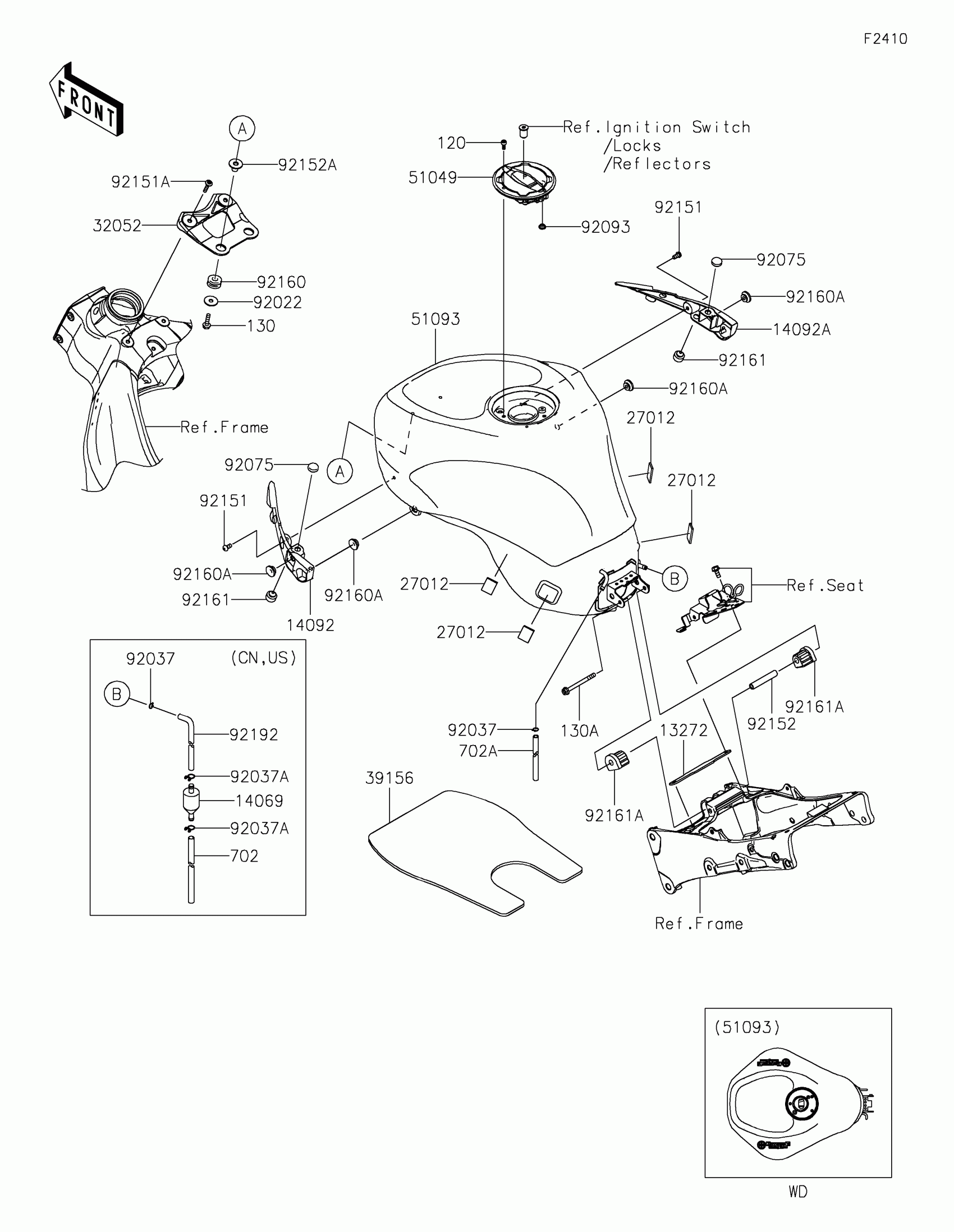

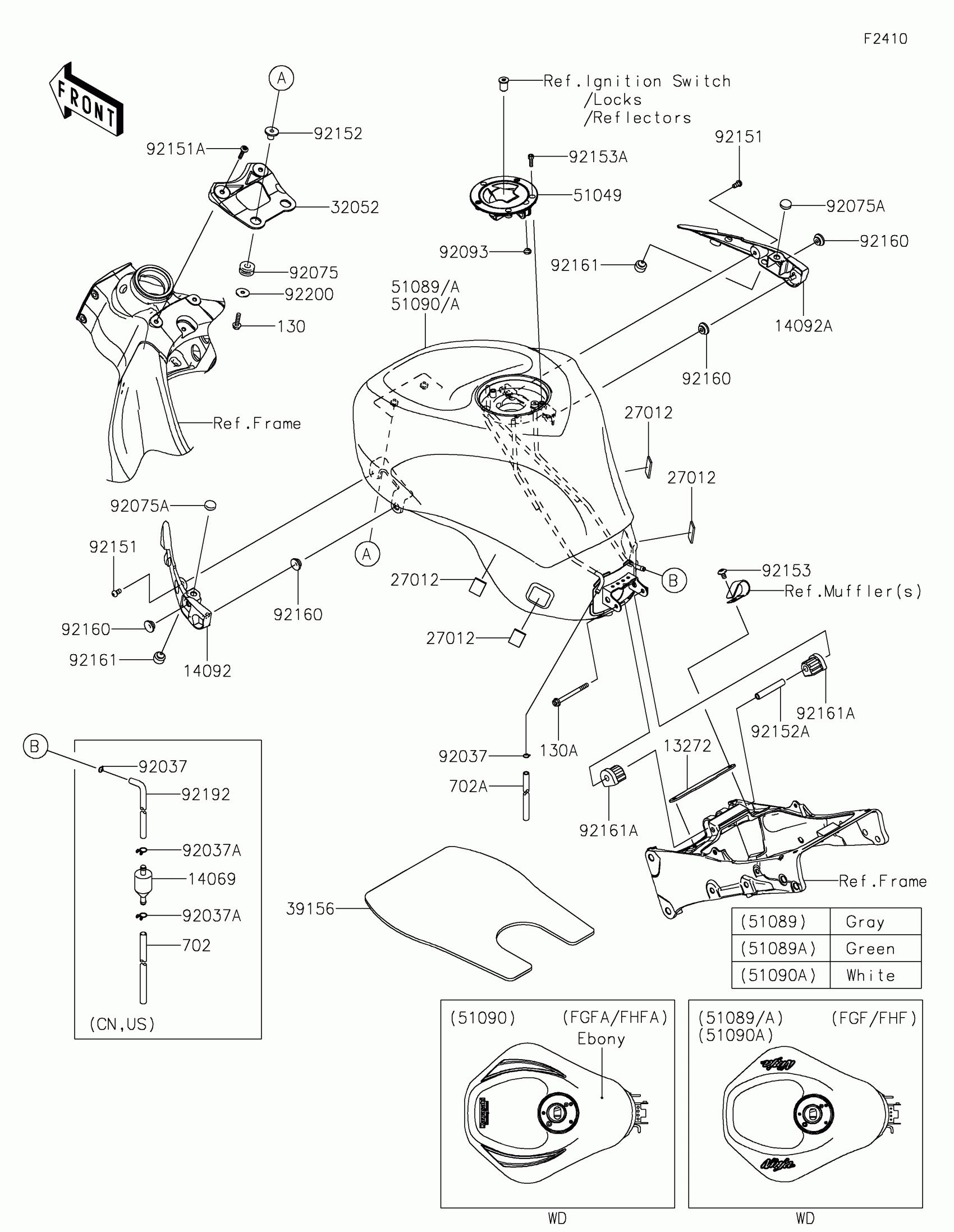

Kawasaki Ninja ZX-6R ABS KRT Edition Fuel Tank Diagram

BOLT-FLANGED,6X22

BOLT-FLANGED,6X70

PLATE,FUEL TANK,RR

BREATHER,FUEL TANK

COVER,TANK,LH

COVER,TANK,RH

HOOK

BRACKET-TANK

PAD,FUEL TANK

CAP-TANK,FUEL

TANK-COMP-FUEL,EBONY

CLAMP,TUBE

DAMPER,10X24X12

DAMPER

SEAL,FUEL TANK CAP

BOLT,SOCKET,6X12

BOLT,SOCKET,6X30

COLLAR,6.3X10X14.5

COLLAR,6.8X10X60

BOLT,SOCKET,6X10

BOLT,SOCKET,5X16

DAMPER

DAMPER

DAMPER,FUEL TANK,RR

TUBE,BREATHER

WASHER,6.5X22X1.6

TUBE-RUBBER,6X9X660

TUBE-RUBBER,6X850

CLAMP,TUBE

CLAMP,TUBE
