Description

Price

11065

CAP,LH,P.RED

11065-0793-10B

$129.70

11065B

CAP,RH,P.RED

11065-0794-10B

$129.70

13235

GUIDE-COMP,ROD

13235-0008

$91.70

44008A

PIPE-FORK OUTER,A.BLACK

44008-0063-499

$388.50

44013

PIPE-FORK INNER,LH

44013-0206

$589.80

44013A

PIPE-FORK INNER,RH

44013-0207

$589.80

44023

CYLINDER-SET-FORK,LH,P.RED

44023-0110-10B

$341.40

44023B

CYLINDER-SET-FORK,RH,P.RED

44023-0114-10B

$600.34

44026

SPRING-FRONT FORK

44026-0174

$72.60

44037

HOLDER-FORK UNDER

44037-0136

$733.34

44039

HOLDER-FORK UPPER,A.BLACK

44039-0123-499

$321.19

44065

BUSHING-FRONT FORK,GUIDE

44065-0030

$20.55

44065A

BUSHING-FRONT FORK,SLIDE

44065-0031

$20.55

44065B

BUSHING-FRONT FORK

44065-0033

$7.53

44065C

BUSHING-FRONT FORK

44065-0045

$8.81

44071

DAMPER-ASSY,LH,BLACK+RED

44071-0834-39V

$1,161.24

44071C

DAMPER-ASSY,RH,BLACK+RED

44071-0911-39V

$1,302.81

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-0729

$7.78

92049

SEAL-OIL

92049-0125

$26.40

92055

RING-O

92055-0142

$3.90

92055A

RING-O

92055-0174

$3.71

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0035

$25.59

92152

COLLAR

92152-0757

$16.39

92152A

COLLAR

92152-1888

$17.14

92153

BOLT,SOCKET,8X35

92153-0854

$7.83

92153A

BOLT,SOCKET,8X25

92153-1625

$4.65

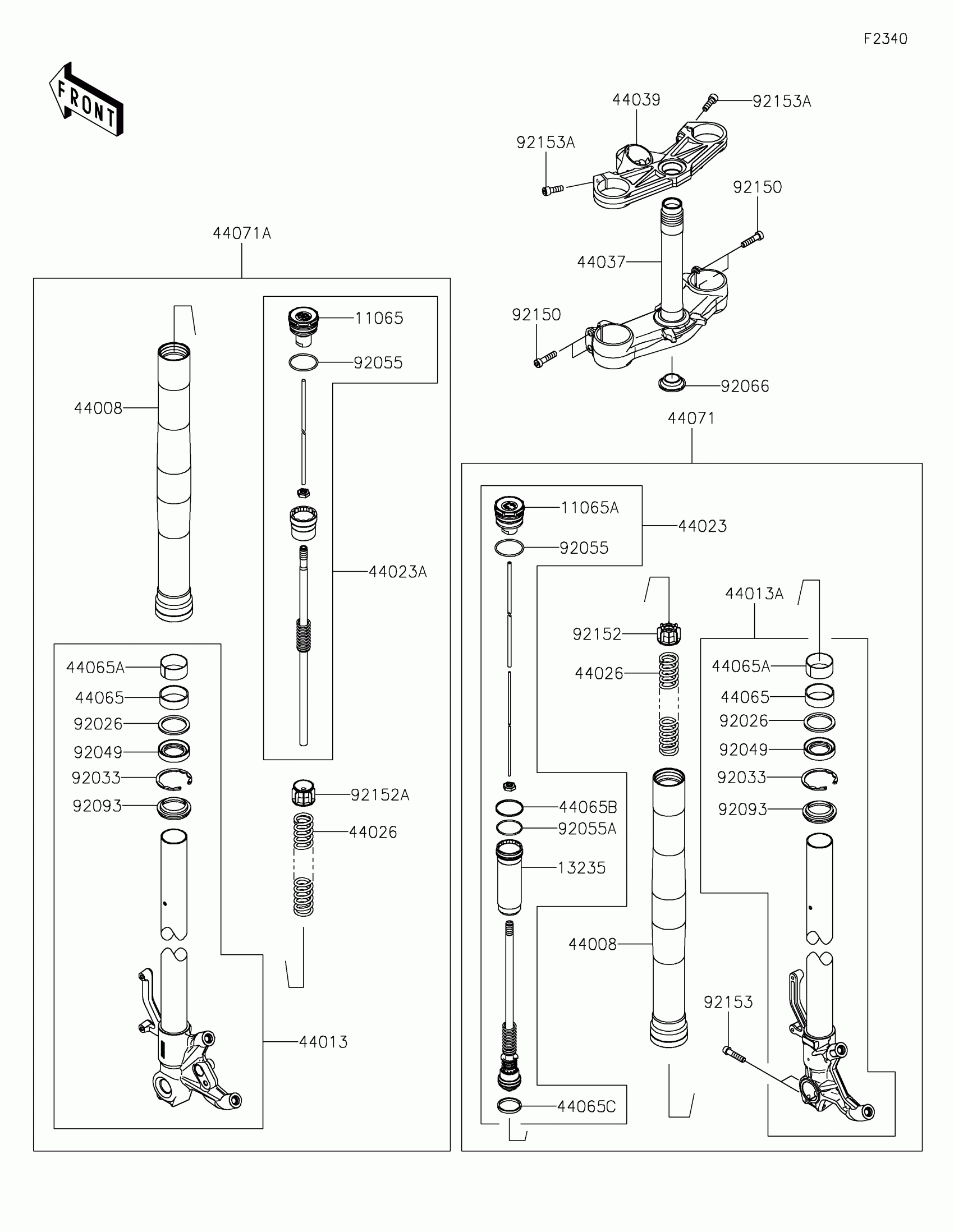

Kawasaki Ninja ZX-6R ABS KRT Edition Front Fork Diagram

CAP,LH,P.RED

CAP,RH,P.RED

GUIDE-COMP,ROD

PIPE-FORK OUTER,A.BLACK

PIPE-FORK INNER,LH

PIPE-FORK INNER,RH

CYLINDER-SET-FORK,LH,P.RED

CYLINDER-SET-FORK,RH,P.RED

SPRING-FRONT FORK

HOLDER-FORK UNDER

HOLDER-FORK UPPER,A.BLACK

BUSHING-FRONT FORK,GUIDE

BUSHING-FRONT FORK,SLIDE

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-ASSY,LH,BLACK+RED

DAMPER-ASSY,RH,BLACK+RED

SPACER,FORK OUTER

RING-SNAP

SEAL-OIL

RING-O

RING-O

PLUG

SEAL,DUST

COLLAR

COLLAR

BOLT,SOCKET,8X35

BOLT,SOCKET,8X25
