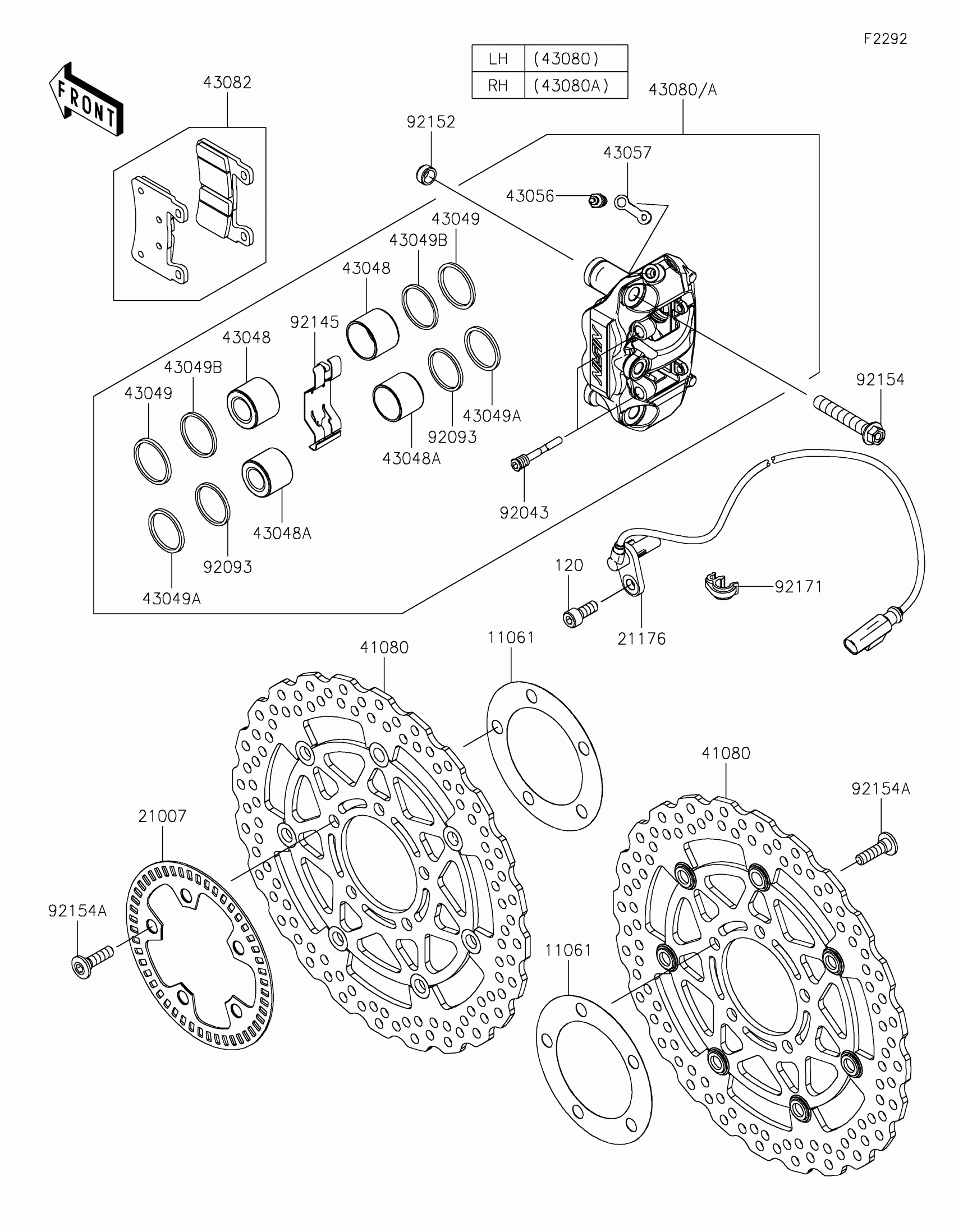

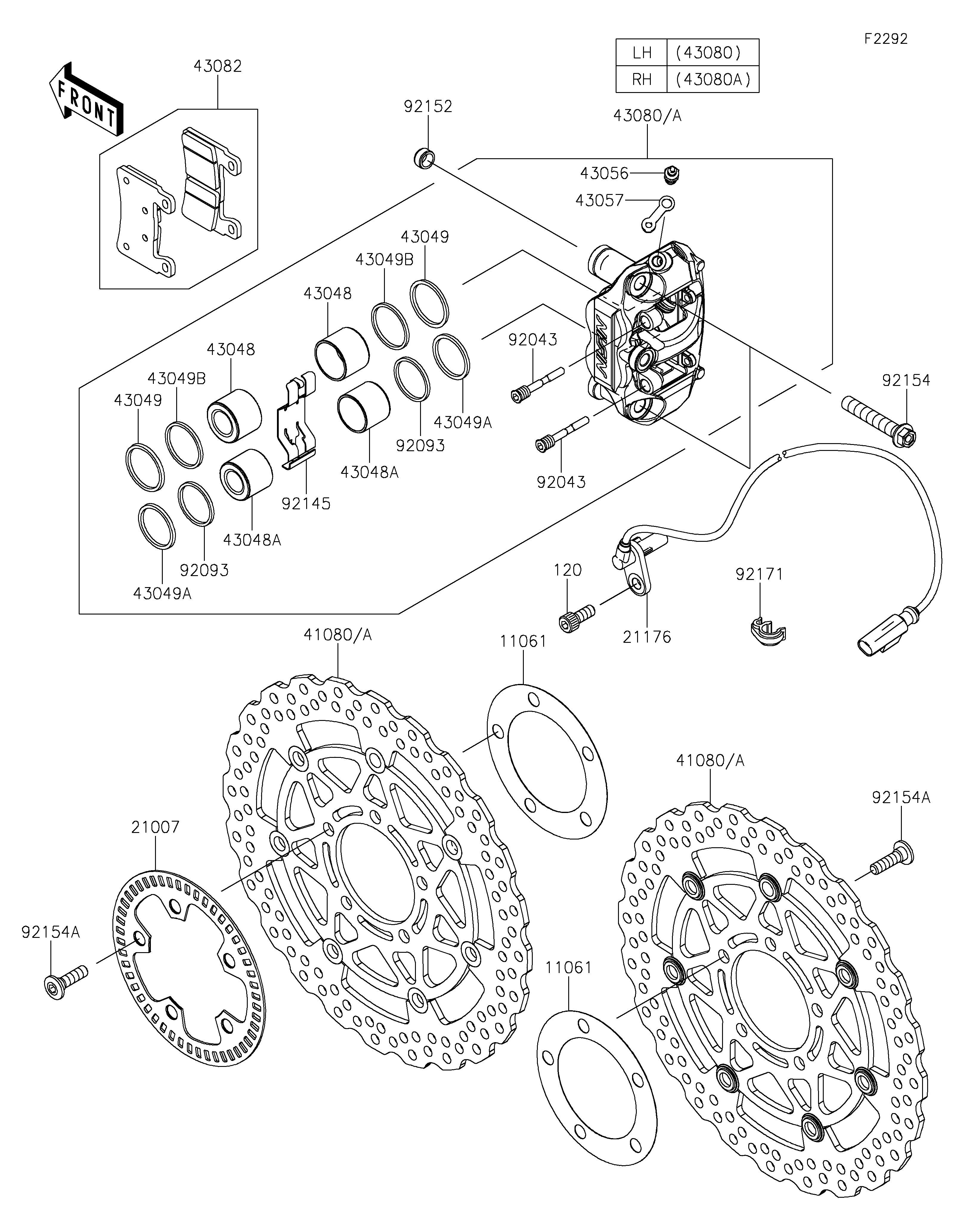

Kawasaki Ninja® ZX-6R ABS KRT Edition Front Brake Diagram

Description

Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

21007

ROTOR,FR WHEEL

21007-0669

$30.18

21176

SENSOR,SPEED,FR

21176-0737

$117.67

41080

DISC,FR,HOUSING BLK+DISC SIL

41080-0590-5C

$455.55

43048

PISTON-CALIPER

43048-0019

$38.44

43048A

PISTON-CALIPER

43048-0020

$38.44

43049

PACKING

43049-0028

$9.06

43049A

PACKING

43049-0029

$9.06

43049B

PACKING

43049-1081

$7.77

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0111-DJ

$470.09

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0113-DJ

$470.09

43082

PAD-ASSY-BRAKE

43082-0131

$77.93

92043

PIN,PAD

92043-0105

$10.30

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING

92145-1864

$14.76

92152

COLLAR,DOWEL PIN

92152-0679

$7.60

92154

BOLT,SOCKET,10X63

92154-1067

$10.30

92154A

BOLT,SOCKET,8X30

92154-1865

$4.69

92171

CLAMP,BRAKE HOSE

92171-1819

$5.54

120

BOLT-SOCKET,8X20

120CB0820

$4.45
