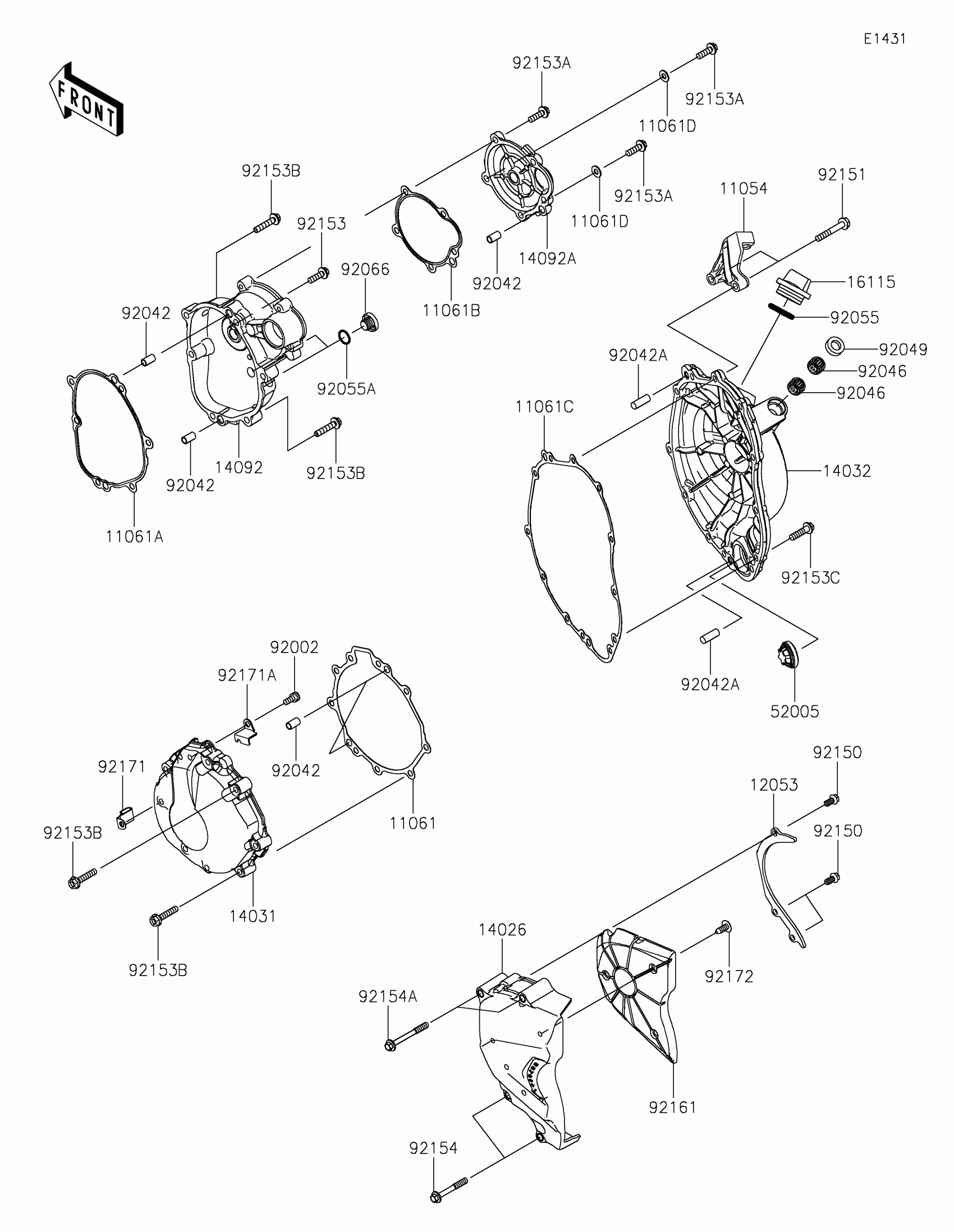

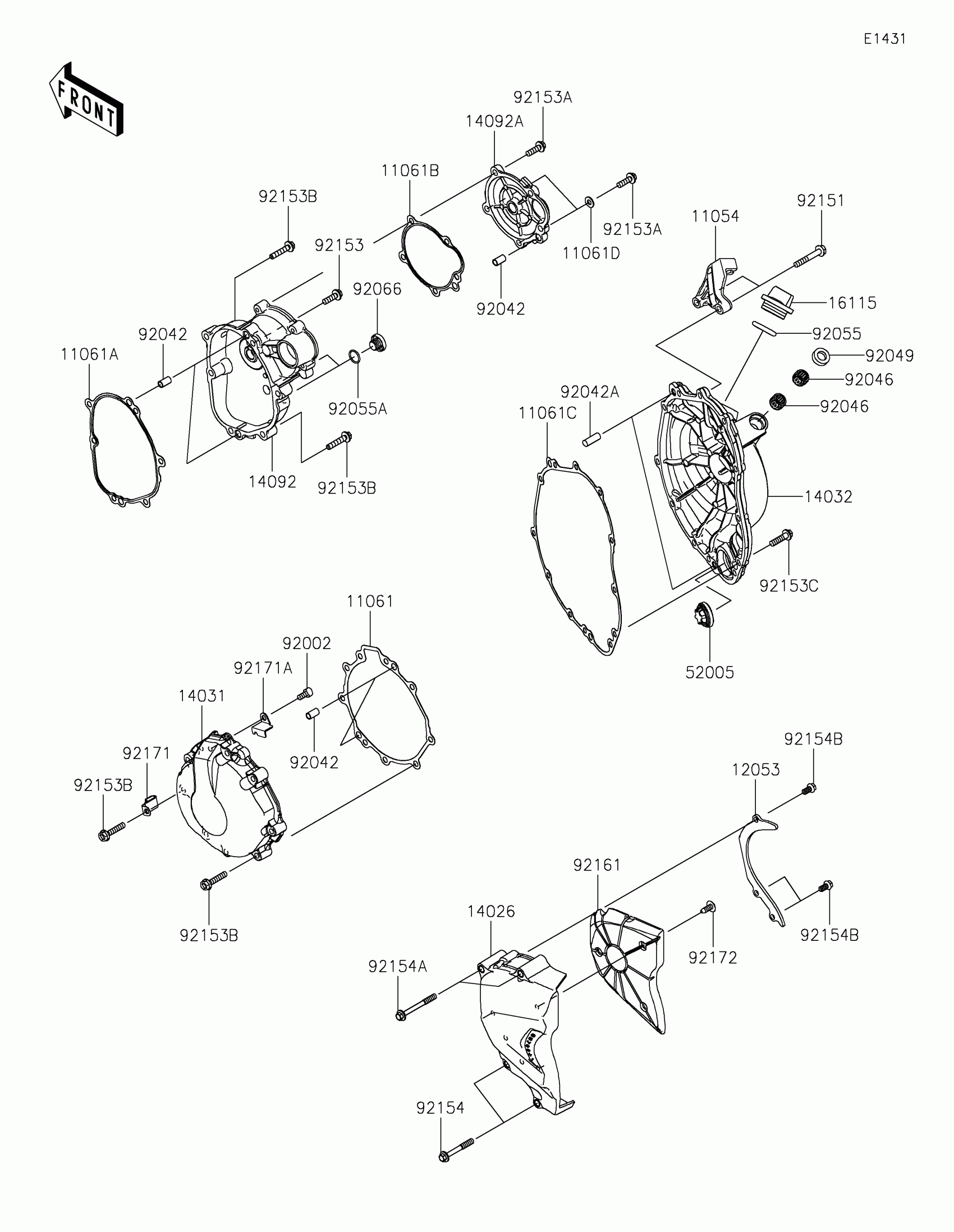

Kawasaki Ninja ZX-6R ABS KRT Edition Engine Cover(s) Diagram

#

Description
Price

11054

BRACKET,CLUTCH CABLE HOLDER

11054-1212

Unavailable

11061

GASKET,GENERATOR COVER

11061-0249

$10.24

11061A

GASKET,LARGE COVER

11061-0250

$12.68

11061B

GASKET,SMALL COVER

11061-0251

$10.24

11061C

GASKET,CLUTCH COVER

11061-0252

$21.77

11061D

GASKET,6.2X13.5X1.0

11061-0262

$1.55

12053

GUIDE-CHAIN

12053-0109

$12.83

14026

COVER-CHAIN

14026-0104

$82.88

14031

COVER-GENERATOR

14031-0571

$166.27

14032

COVER-CLUTCH

14032-0572

$286.73

14092

COVER,STARTER,LARGE

14092-0998

$270.29

14092A

COVER,STARTER,SMALL

14092-0999

$218.12

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE

52005-1120

$18.41

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92042A

PIN,DOWEL,8X22

92042-044

$4.18

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,ID=13.8

92055-1141

$2.99

92066

PLUG,TIMING HOLE

92066-0067

$10.24

92150

BOLT,FLANGED-SMALL,6X12

92150-1841

$3.29

92151

BOLT,FLANGED,6X40

92151-1583

$2.25

92153

BOLT,FLANGED,6X20

92153-1010

$1.57

92153A

BOLT,FLANGED,6X20

92153-1572

$1.32

92153B

BOLT,FLANGED,6X30

92153-1574

$1.57

92153C

BOLT,FLANGED,6X25

92153-1716

$1.32

92154

BOLT,FLANGED,6X45

92154-0102

$1.35

92154A

BOLT,FLANGED,6X55

92154-0103

$1.54

92161

DAMPER,CHAIN COVER

92161-1474

$23.14

92171

CLAMP

92171-0761

$8.46

92171A

CLAMP

92171-0938

$3.51

92172

SCREW,6X16

92172-0284

$0.90
