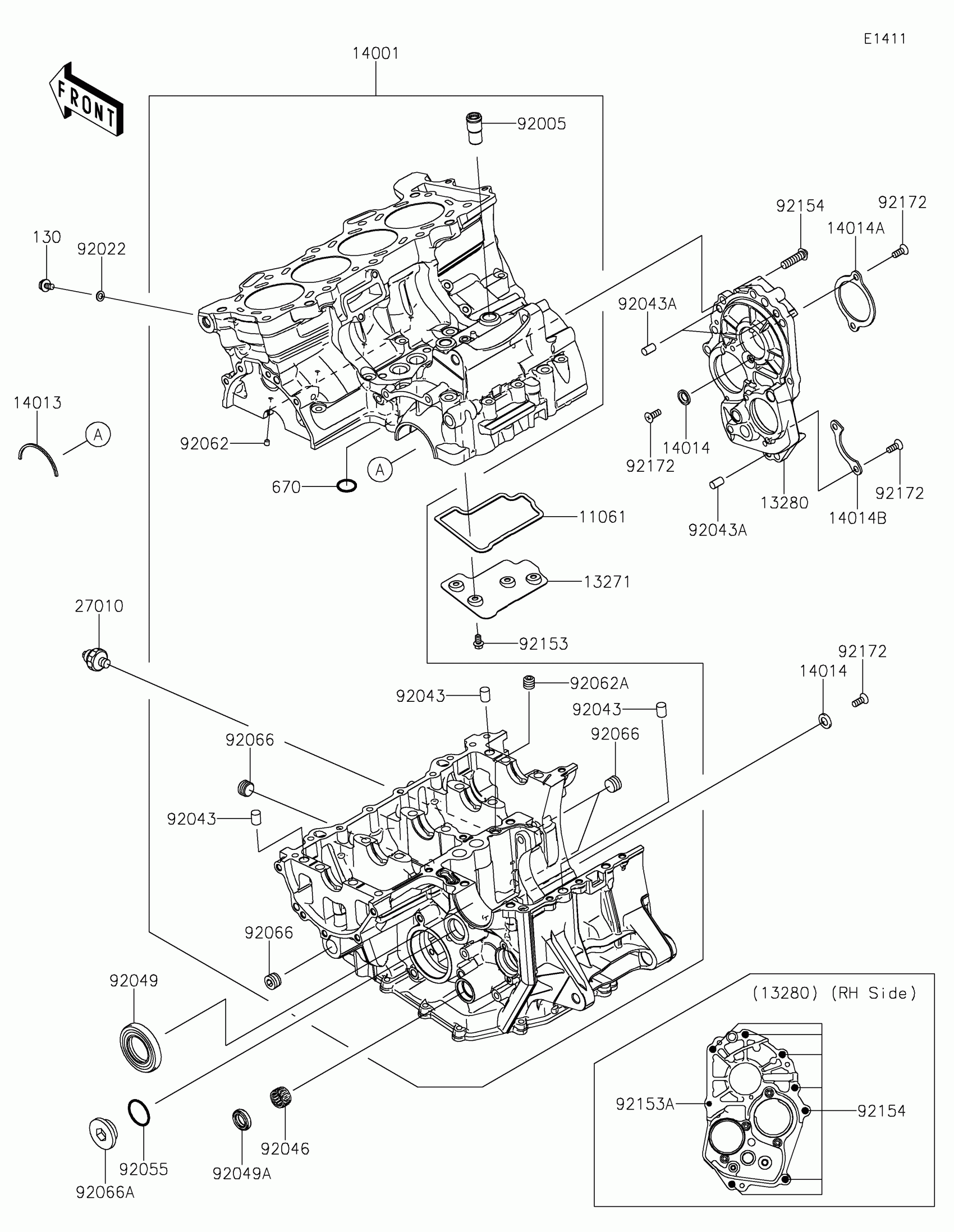

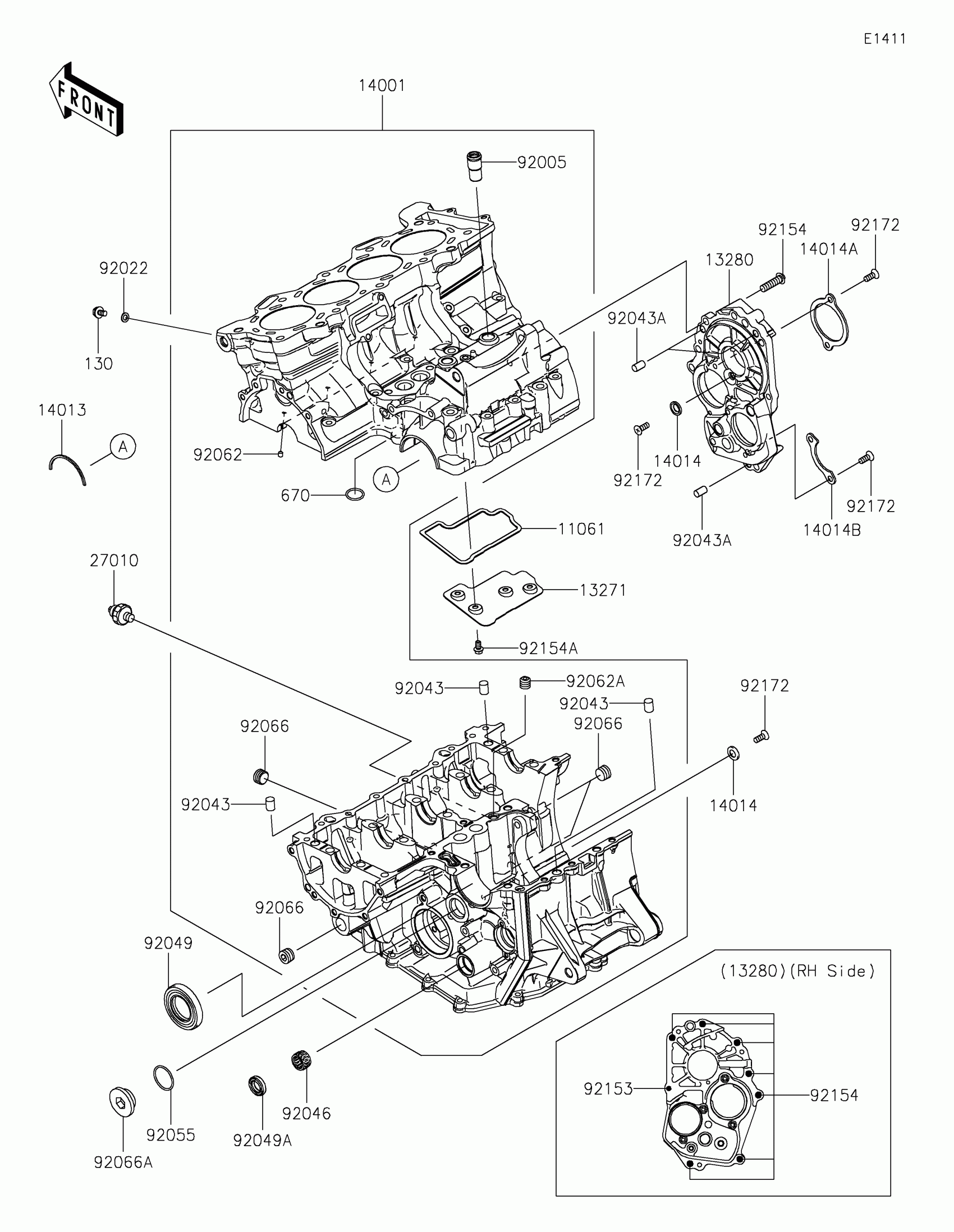

Kawasaki Ninja ZX-6R ABS KRT Edition Crankcase Diagram

Description

Price

11061

GASKET,BREATHER ROOM

11061-0291

$9.86

130

BOLT-FLANGED,6X10

130BD0610

$2.63

13271

PLATE,BREATHER ROOM

13271-0795

$4.95

13280

HOLDER,TRANSMISSION

13280-0305

$229.30

14001

SET-CRANKCASE

14001-0611

$1,851.58

14013

RING-POSITION

14013-1051

$3.03

14014

PLATE-POSITION,9.5X17X2.3

14014-0019

$3.51

14014A

PLATE-POSITION

14014-0029

$8.46

14014B

PLATE-POSITION

14014-0030

$4.95

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

670

O RING,18MM

670D2018

$1.39

92005

FITTING,BREATHER

92005-1238

$10.85

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,10X14

92043-1506

$2.30

92043A

PIN,8X14

92043-1567

$1.62

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL,TC32578

92049-1474

$13.91

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92055

RING-O,27.7X2.4

92055-091

$4.67

92062

NOZZLE

92062-0019

$4.56

92062A

NOZZLE

92062-1056

$4.42

92066

PLUG,PT3/8X10

92066-0003

$2.66

92066A

PLUG,25X8

92066-1161

$10.19

92153

BOLT,6X10

92153-0381

$1.98

92153A

BOLT,TORX,6X25

92153-1640

$2.15

92154

BOLT,TORX,8X28

92154-0415

$1.89

92172

SCREW,6X16

92172-0090

$1.98
