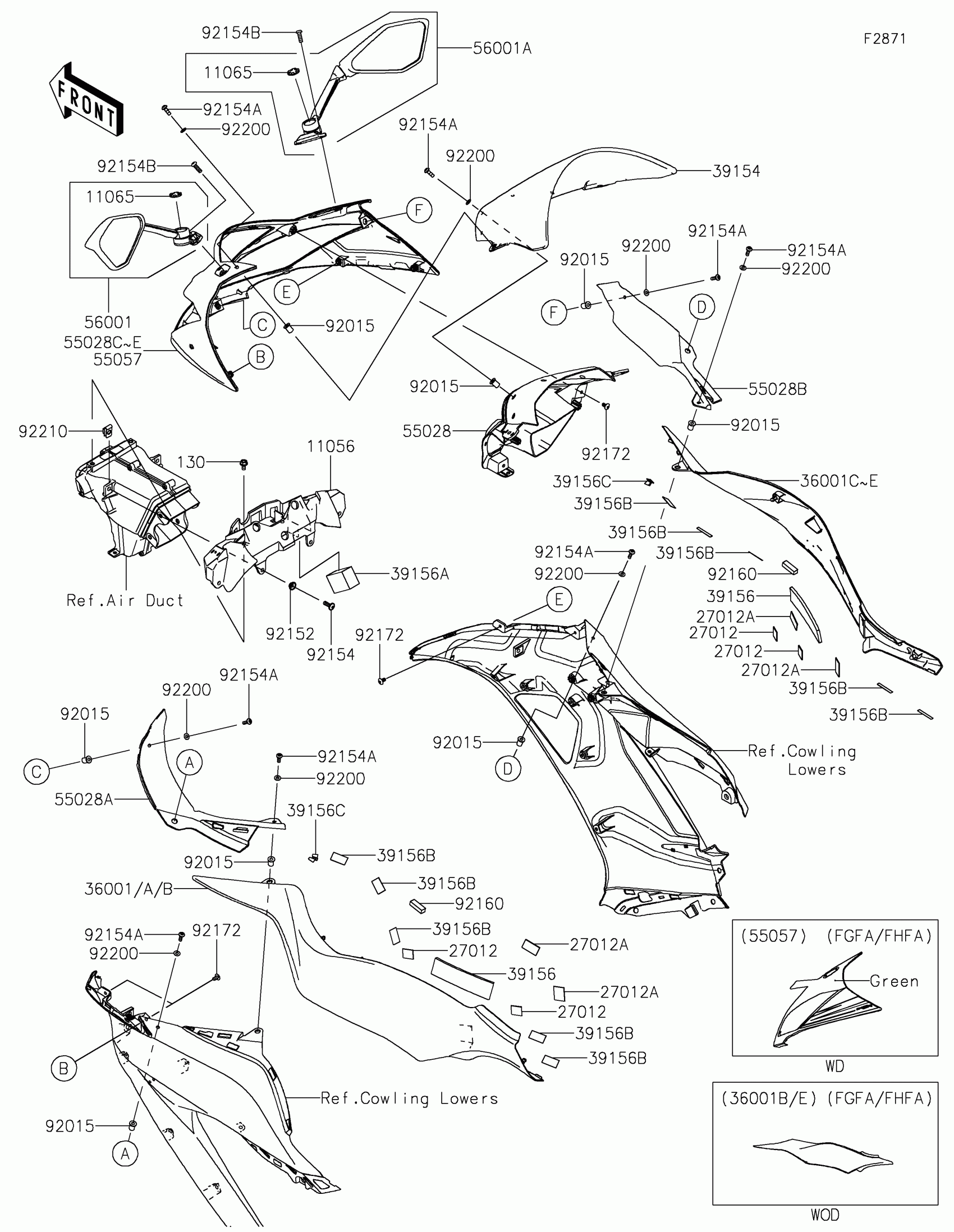

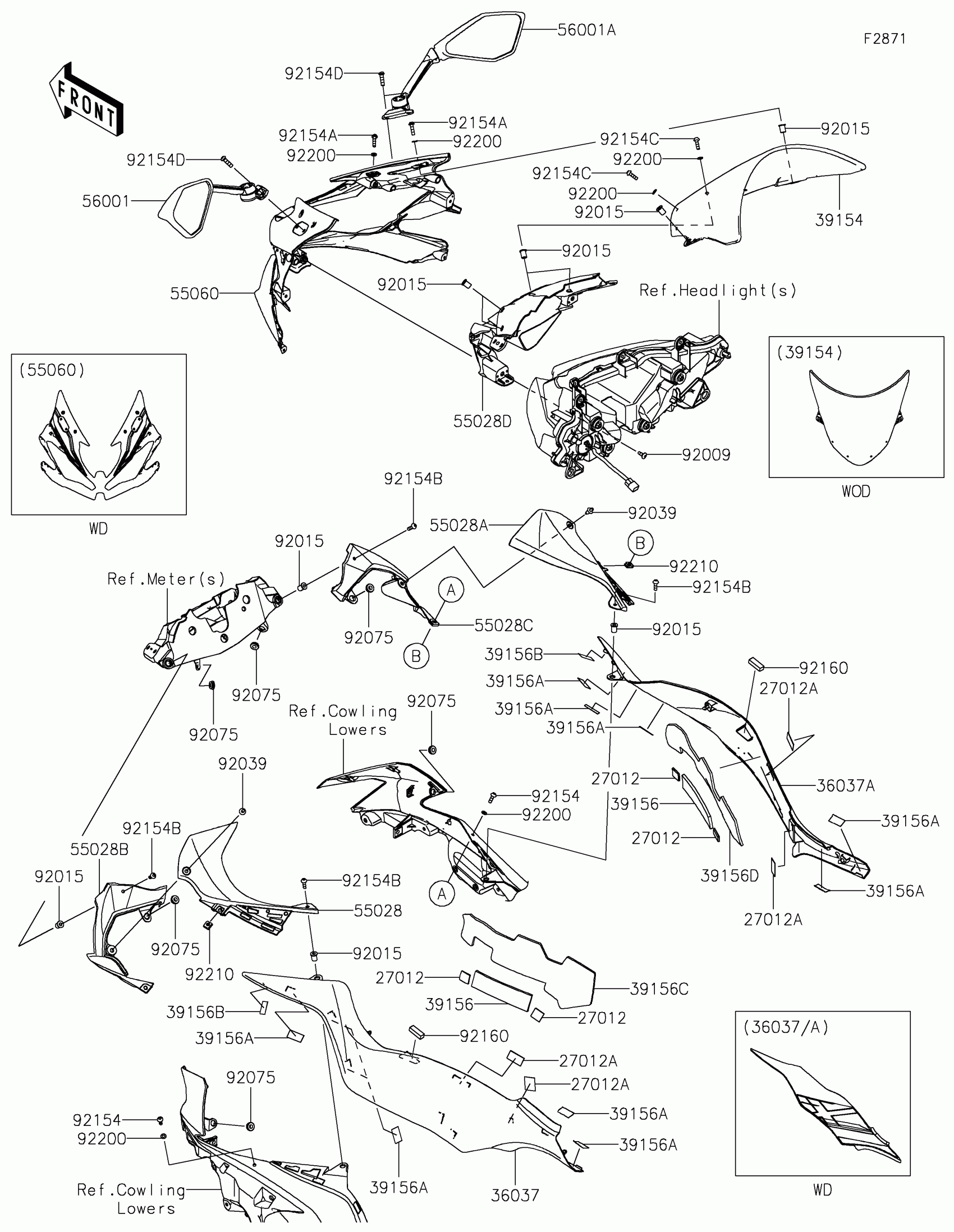

Kawasaki Ninja® ZX-6R ABS KRT Edition Cowling Diagram
#
Description
Price
27012
HOOK,20X20X3.0
27012-0742
$4.41
27012A
HOOK
27012-0751
$5.98
36037
COVER-SIDE,LH,EBONY
36037-5053-H8
$319.74
36037A
COVER-SIDE,RH,EBONY
36037-5054-H8
$319.74
39154
WINDSHIELD
39154-0384
$231.60
39156
PAD
39156-0536
$2.76
39156A
PAD,15X30X0.2
39156-0979
$1.62
39156B
PAD,10X30X0.2
39156-0980
$1.18
39156C
PAD,COVER FRAME,LH
39156-2410
$10.30
39156D
PAD,COVER FRAME,RH
39156-2411
$10.30
55028
COWLING,INNER,RR,LH
55028-0675
$25.16
55028A
COWLING,INNER,RR,RH
55028-0676
$25.16
55028B
COWLING,INNER,FR,LH
55028-0697
$19.53
55028C
COWLING,INNER,FR,RH
55028-0698
$19.53
55028D
COWLING,UPP,CNT
55028-0699
$78.15
55060
COWLING,UPP,L.GREEN
55060-5441-777
$365.31
56001
MIRROR-ASSY,LH
56001-0393
$89.23
56001A
MIRROR-ASSY,RH
56001-0394
$89.23
92009
SCREW,TAPPING,5X14
92009-1197
$3.92
92015
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0068
$2.97
92075
DAMPER,6X16X7
92075-1011
$7.33
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X20
92154-0210
$2.12
92154B
BOLT,SOCKET,5X16
92154-1701
$1.19
92154C
BOLT,SOCKET,5X18
92154-2107
$2.12
92154D
BOLT,SOCKET,6X22
92154-3777
$1.69
92160
DAMPER
92160-1183
$3.57
92200
WASHER,5.2X10X1.0
92200-1820
$0.63
92210
NUT
92210-0571
$3.52
