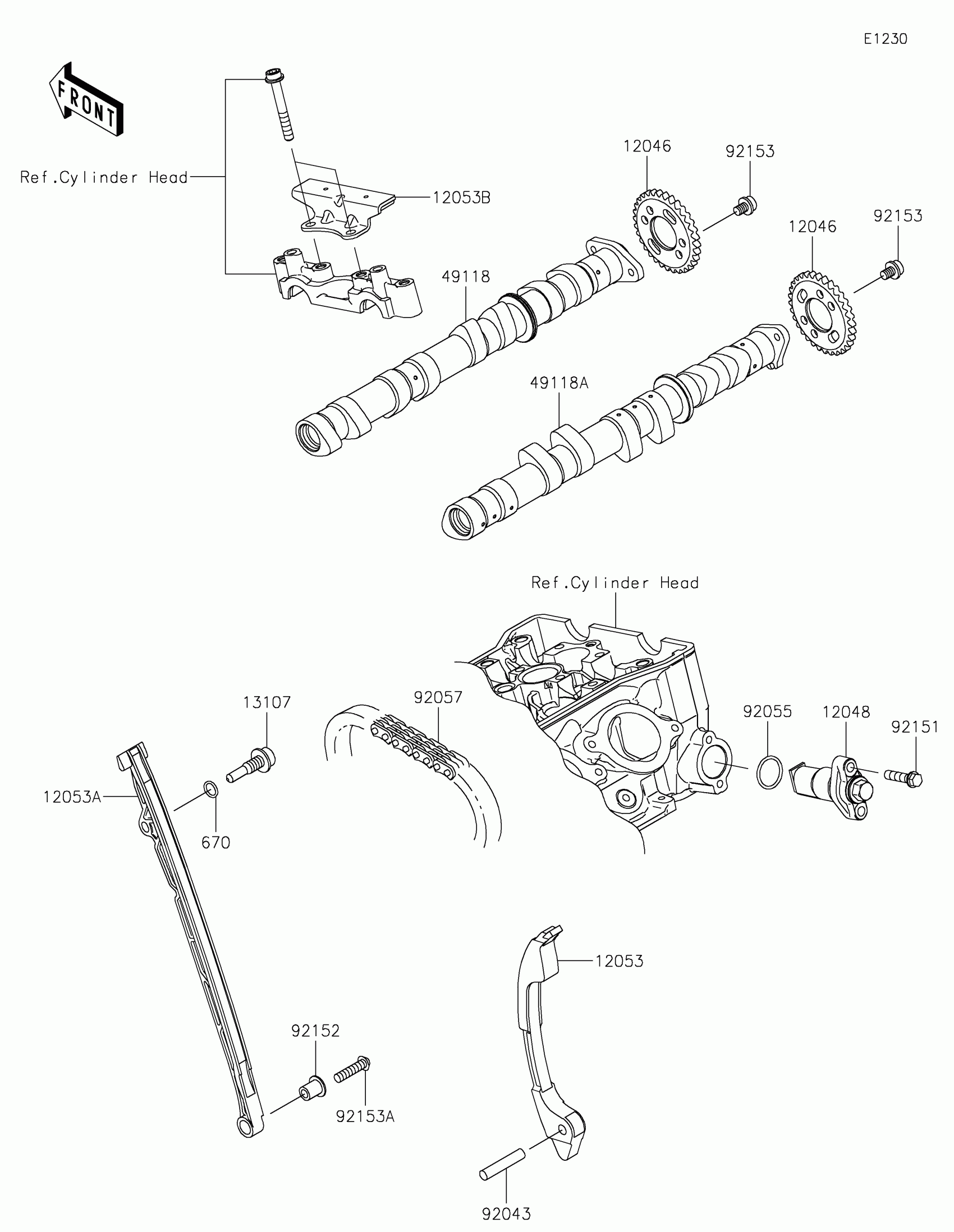

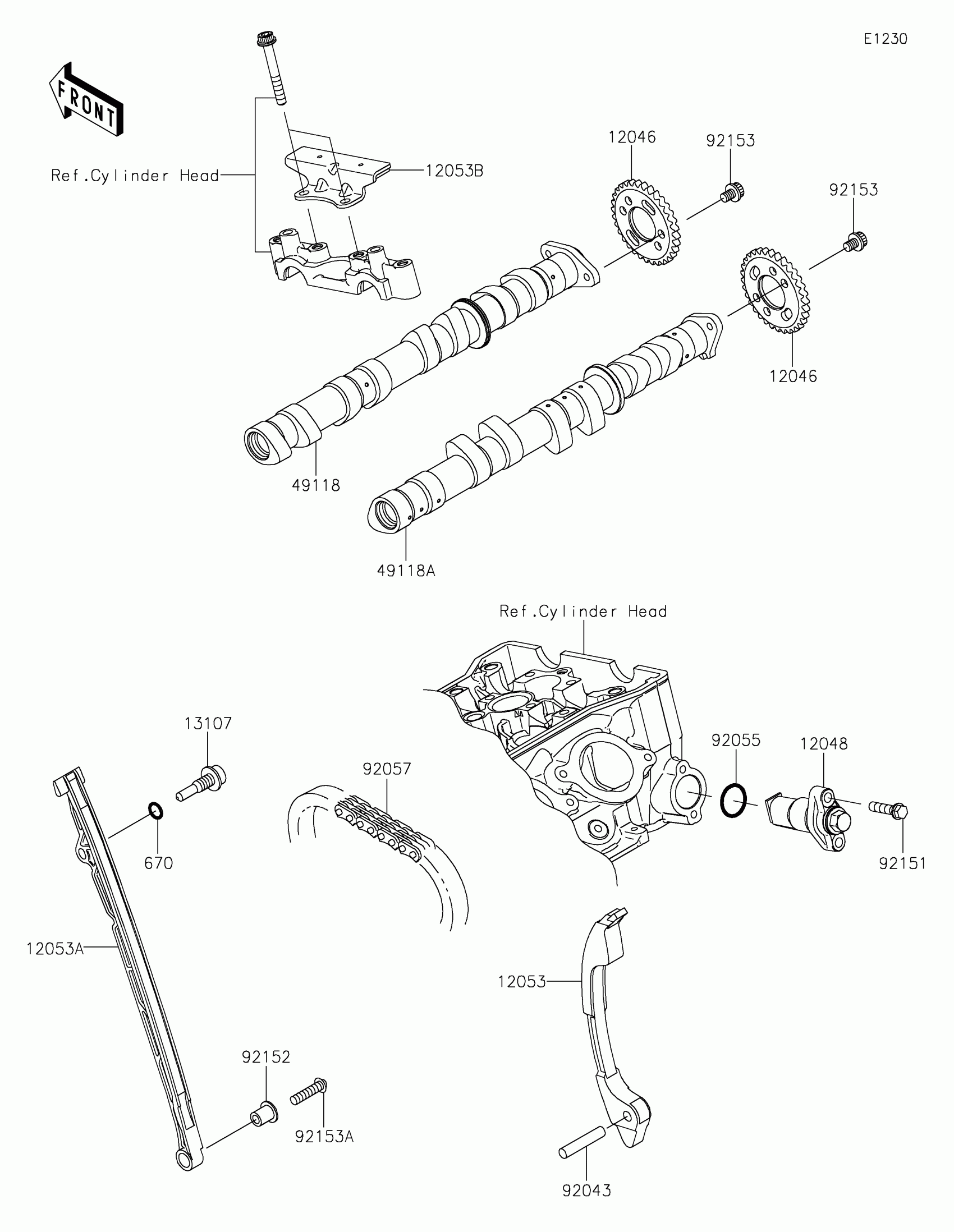

Kawasaki Ninja® ZX-6R ABS KRT Edition Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,32T

12046-0073

$72.77

12048

TENSIONER-ASSY

12048-1181

$130.79

12053

GUIDE-CHAIN,RR

12053-0085

$77.40

12053A

GUIDE-CHAIN,FR

12053-0158

$54.80

12053B

GUIDE-CHAIN,UPP

12053-0159

$24.55

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,EXHAUST

49118-0752

$546.30

49118A

CAMSHAFT-COMP,INTAKE

49118-0779

$546.30

92043

PIN,7X36.4

92043-0114

$2.61

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM

92057-1531

$112.31

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR

92152-0413

$8.68

92153

BOLT,FLANGED,6X8

92153-0455

$2.55

92153A

BOLT,TORX,6X25

92153-1640

$2.61

670

O RING,9MM

670D1509

$4.69
