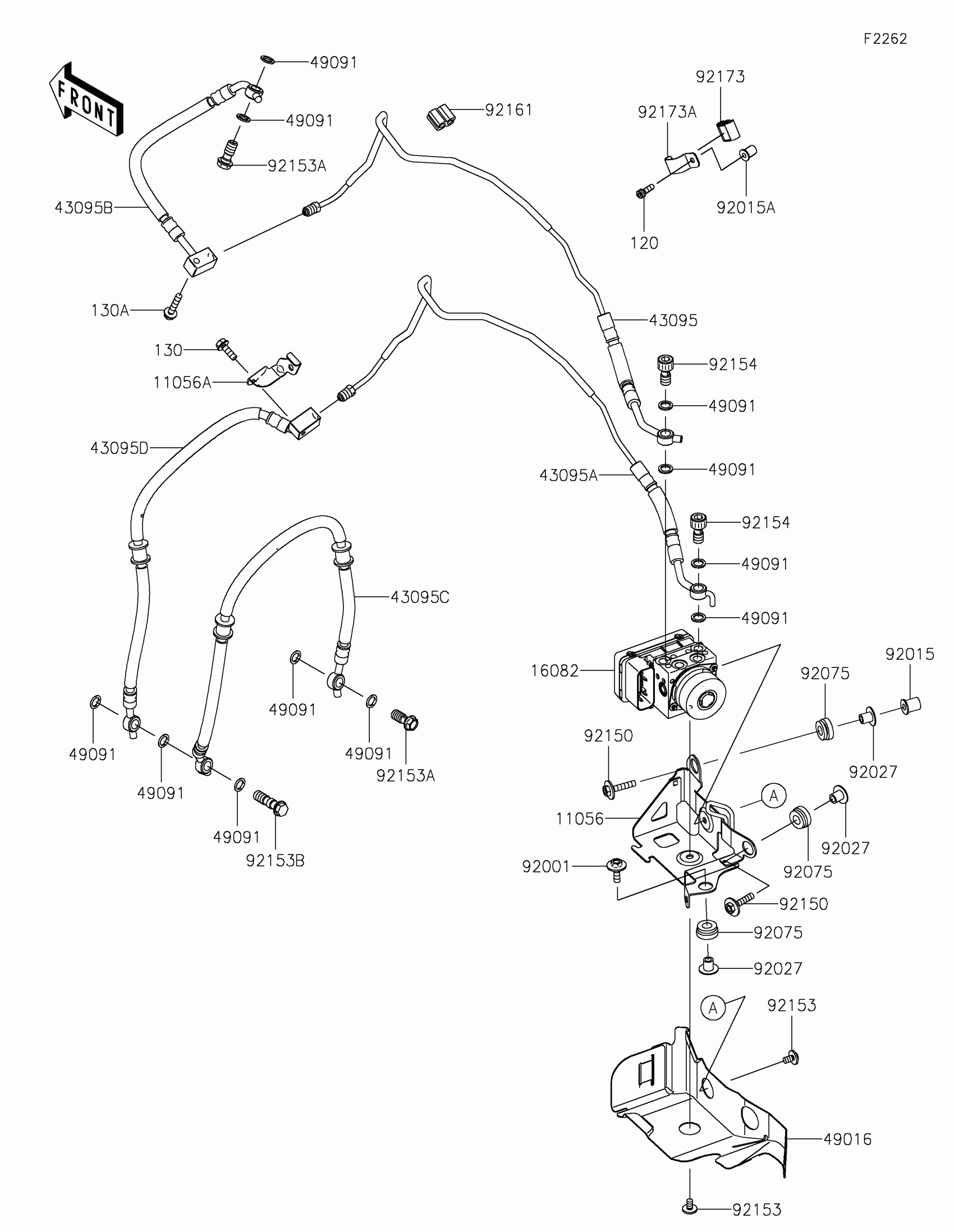

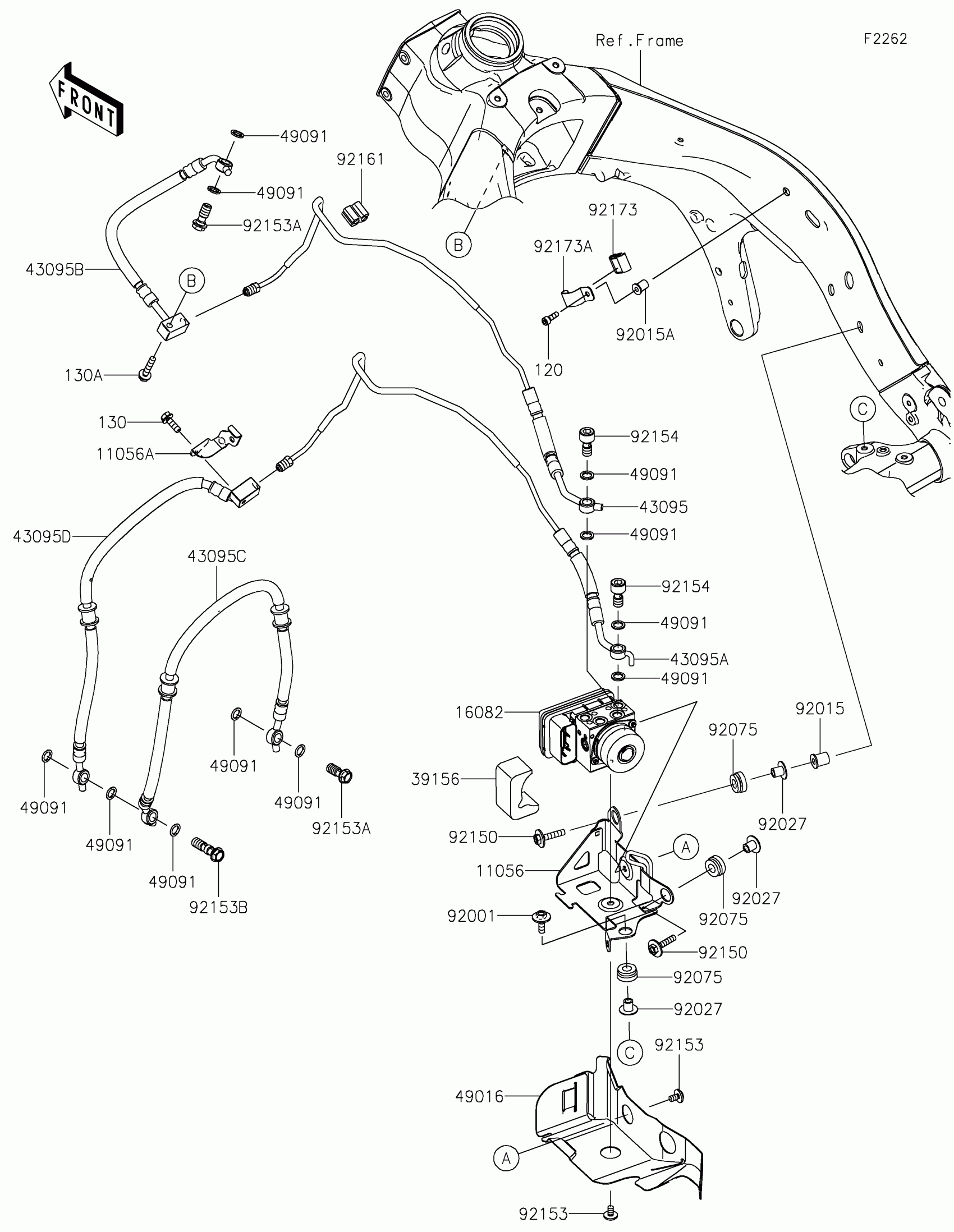

Kawasaki Ninja® ZX-6R ABS KRT Edition Brake Piping Diagram

Description

Price

11056

BRACKET,ABS UNIT

11056-1960

$46.16

11056A

BRACKET

11056-2052

$10.60

16082

PUMP-ASSY-OIL,ABS,BOSCH,9.1MP

16082-0800

$1,563.45

39156

PAD,ABS UNIT

39156-0994

$8.81

43095

HOSE-BRAKE,FR,MC-HU,JOINT

43095-0729

$120.05

43095A

HOSE-BRAKE,FR,HU-CALIPER,JOINT

43095-0730

$91.90

43095B

HOSE-BRAKE,FR,MC-HU

43095-0733

$112.35

43095C

HOSE-BRAKE,FR CALIPER,LH-RH

43095-0735

$101.77

43095D

HOSE-BRAKE,FR,458MM

43095-0780

$67.07

49016

COVER-SEAL

49016-0594

$13.82

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92001

BOLT,6X20

92001-1826

$3.92

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR,L=12

92027-1062

$7.34

92075

DAMPER

92075-277

$2.84

92150

BOLT,6X30

92150-1694

$4.31

92153

BOLT,SOCKET,6X10

92153-0410

$2.80

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92153B

BOLT,OIL,L=37

92153-0628

$11.83

92154

BOLT,BANJO,10X20.8

92154-1121

$26.28

92161

DAMPER

92161-1554

$5.65

92173

CLAMP,METAL PIPE

92173-0986

$2.67

92173A

CLAMP

92173-0987

$7.40

120

BOLT-SOCKET,5X16

120CA0516

$2.15

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,6X30

130BA0630

$1.46
