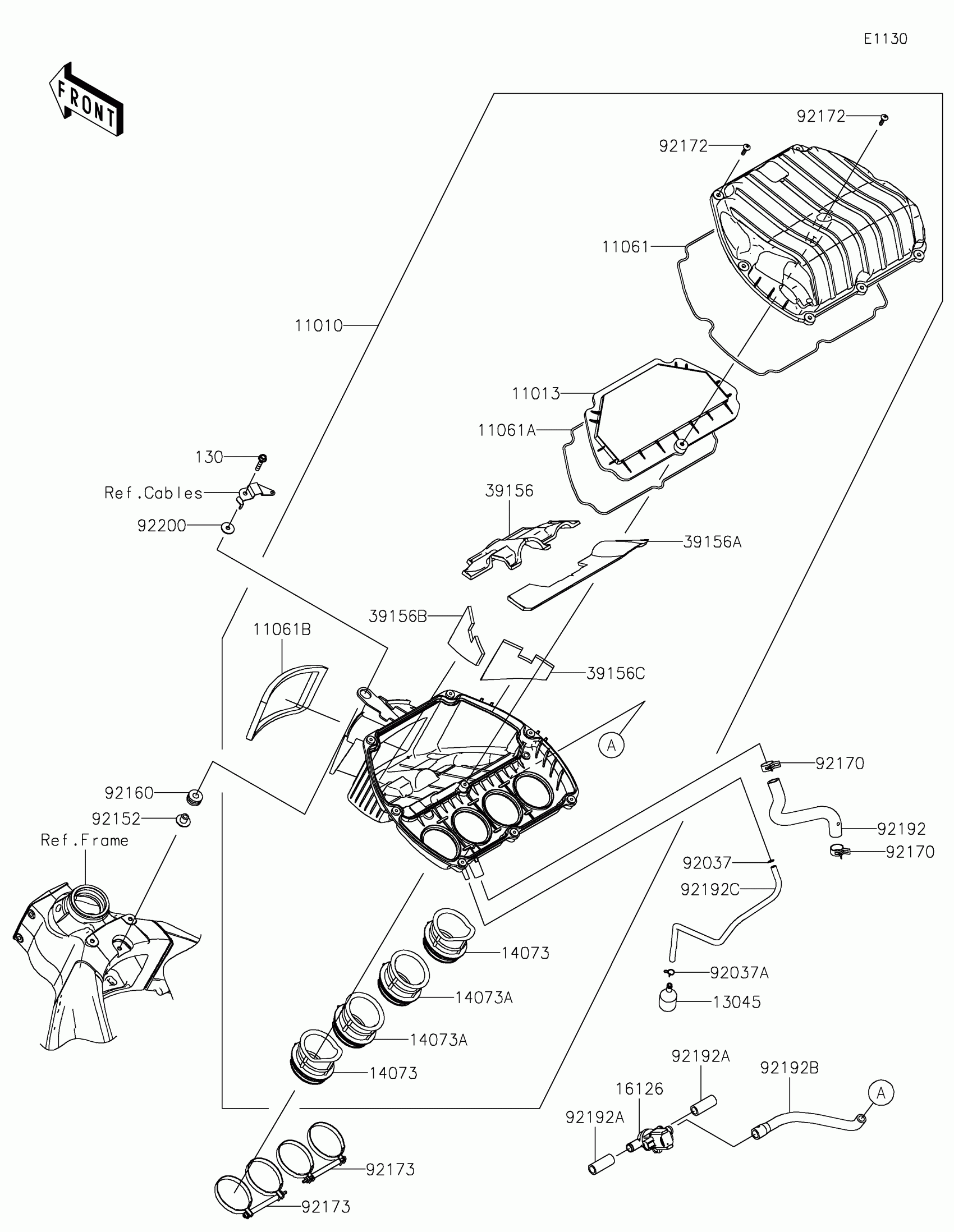

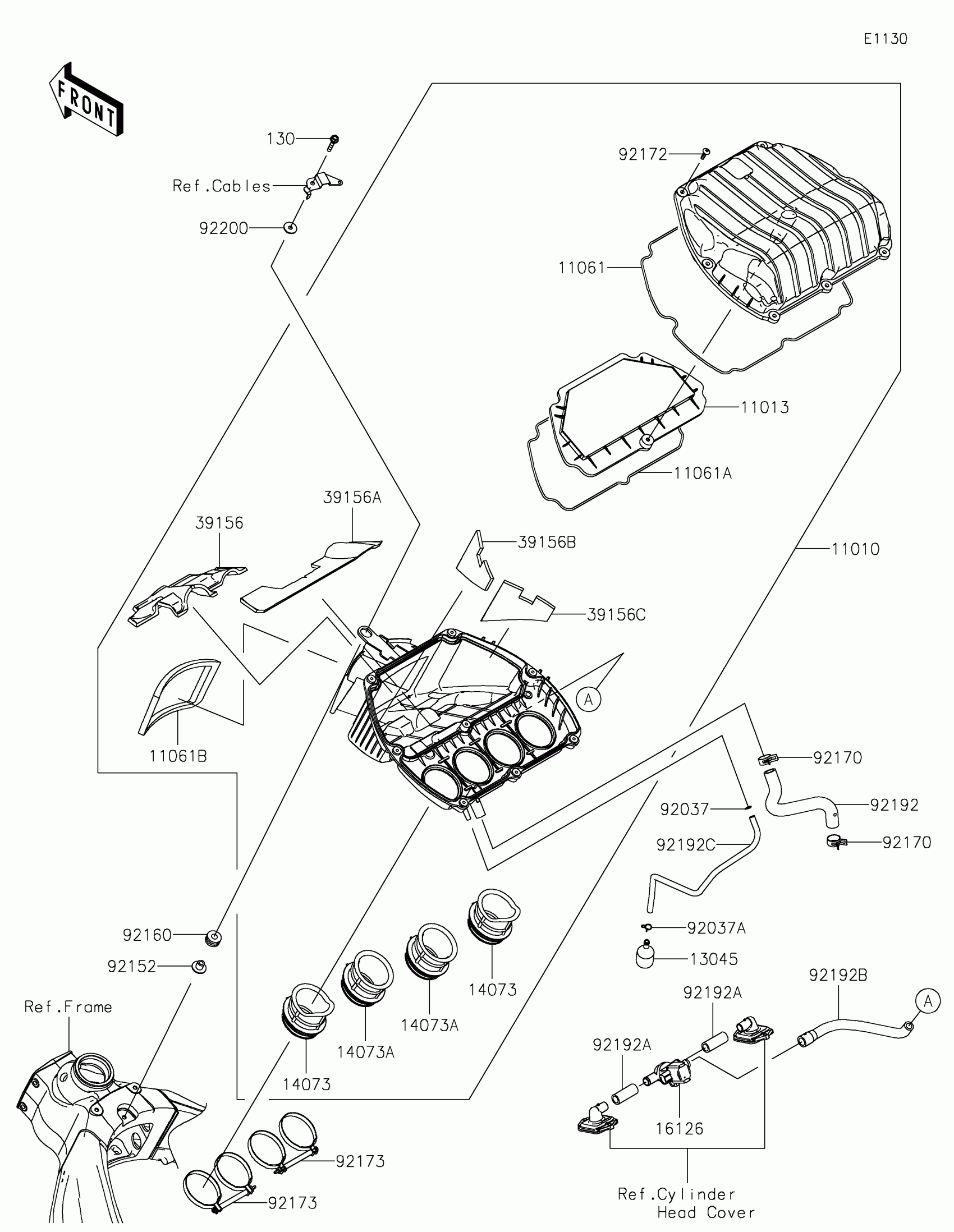

Kawasaki Ninja® ZX-6R ABS KRT Edition Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1806

$380.78

11013

ELEMENT-AIR FILTER

11013-0036

$58.00

11061

GASKET,UPP CASE

11061-0379

$10.28

11061A

GASKET,LWR CASE

11061-0380

$13.68

11061B

GASKET,FRAME-A/C

11061-0381

$7.75

13045

RECEIVER-OIL

13045-1057

$9.82

14073

DUCT,FUNNEL #1

14073-1874

$22.42

14073A

DUCT,FUNNEL #1

14073-1875

$22.42

16126

VALVE,AIR SWITCHING

16126-0745

$189.89

39156

PAD,FR

39156-0513

$45.06

39156A

PAD,RR

39156-0514

$45.06

39156B

PAD,LH

39156-0515

$24.55

39156C

PAD,RH

39156-0516

$24.55

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP

92037-1712

$5.00

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92160

DAMPER

92160-1162

$5.00

92170

CLAMP

92170-1060

$8.10

92172

SCREW

92172-1072

$2.41

92173

CLAMP

92173-0115

$22.59

92192

TUBE,BLOWBY

92192-0429

$17.12

92192A

TUBE,12X17.6X44

92192-0851

$29.88

92192B

TUBE,ASV-A/C

92192-0879

$15.77

92192C

TUBE,6X9X430

92192-1254

$9.64

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X30

130BB0630

$4.43
