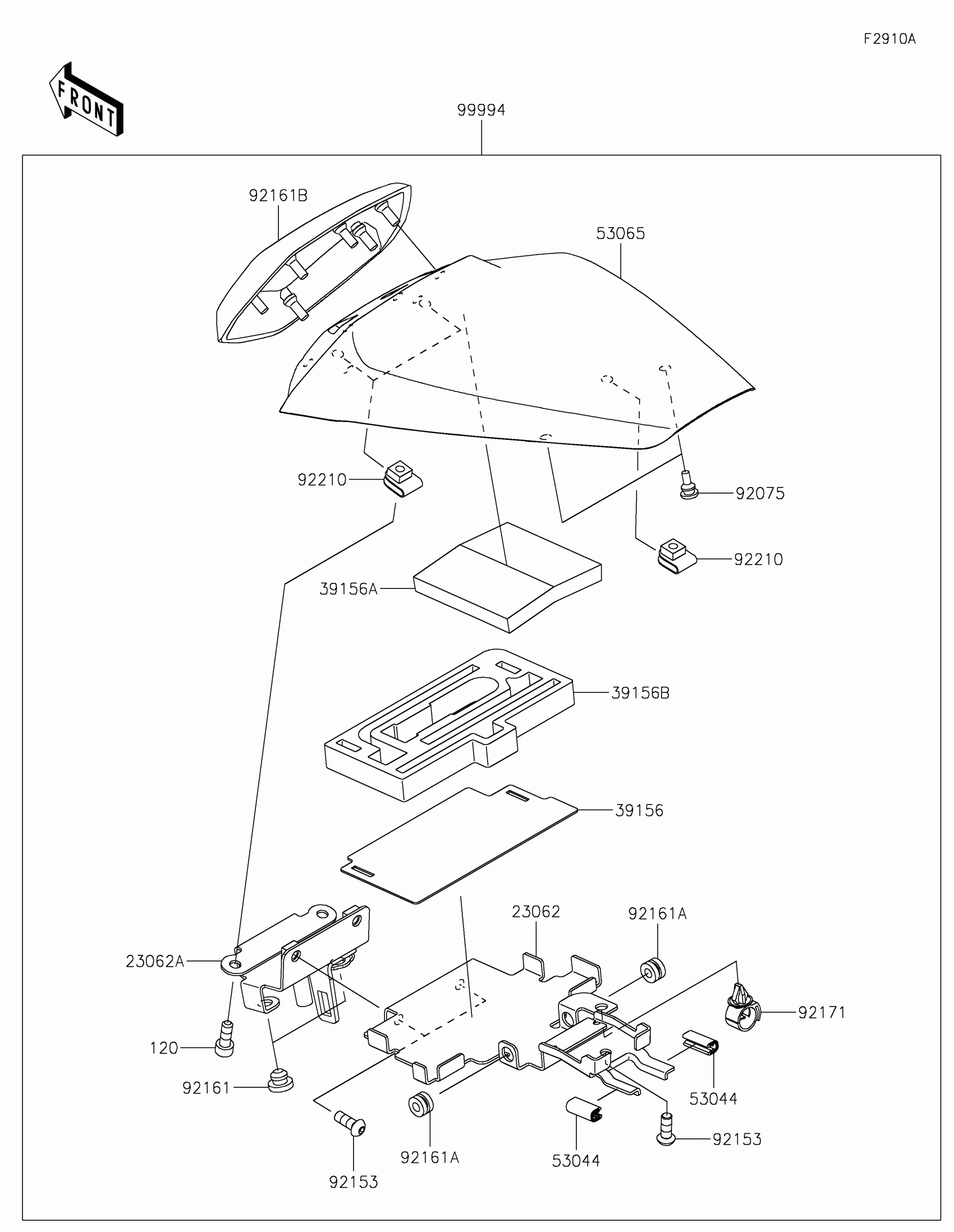

Kawasaki Ninja® ZX-6R ABS KRT Edition Accessory(Pillion Seat Cover) Diagram

Description

Price

23062

BRACKET-COMP

23062-1162

$41.71

23062A

BRACKET-COMP

23062-1184

$199.80

39156

PAD

39156-2365

$4.64

39156A

PAD

39156-2366

$2.59

39156B

PAD

39156-2367

$10.17

53044

TRIM,L=20

53044-0021

$2.71

53065

COVER SEAT,L.GREEN

53065-0038-777

$224.54

92075

DAMPER,6X10X15

92075-1808

$1.06

92153

BOLT,SOCKET,6X16

92153-1785

$1.85

92161

DAMPER

92161-1084

$1.89

92161A

DAMPER

92161-1350

$5.54

92161B

DAMPER,SEAT PAD

92161-1812

$67.02

92171

CLAMP,13MM DIA.

92171-1415

$1.69

92210

NUT,6MM

92210-0277

$3.74

99994

PILLION SEAT COVER,L.GREEN

99994-1116-777

$174.51

120

BOLT-SOCKET,6X16

120CA0616

$1.77
