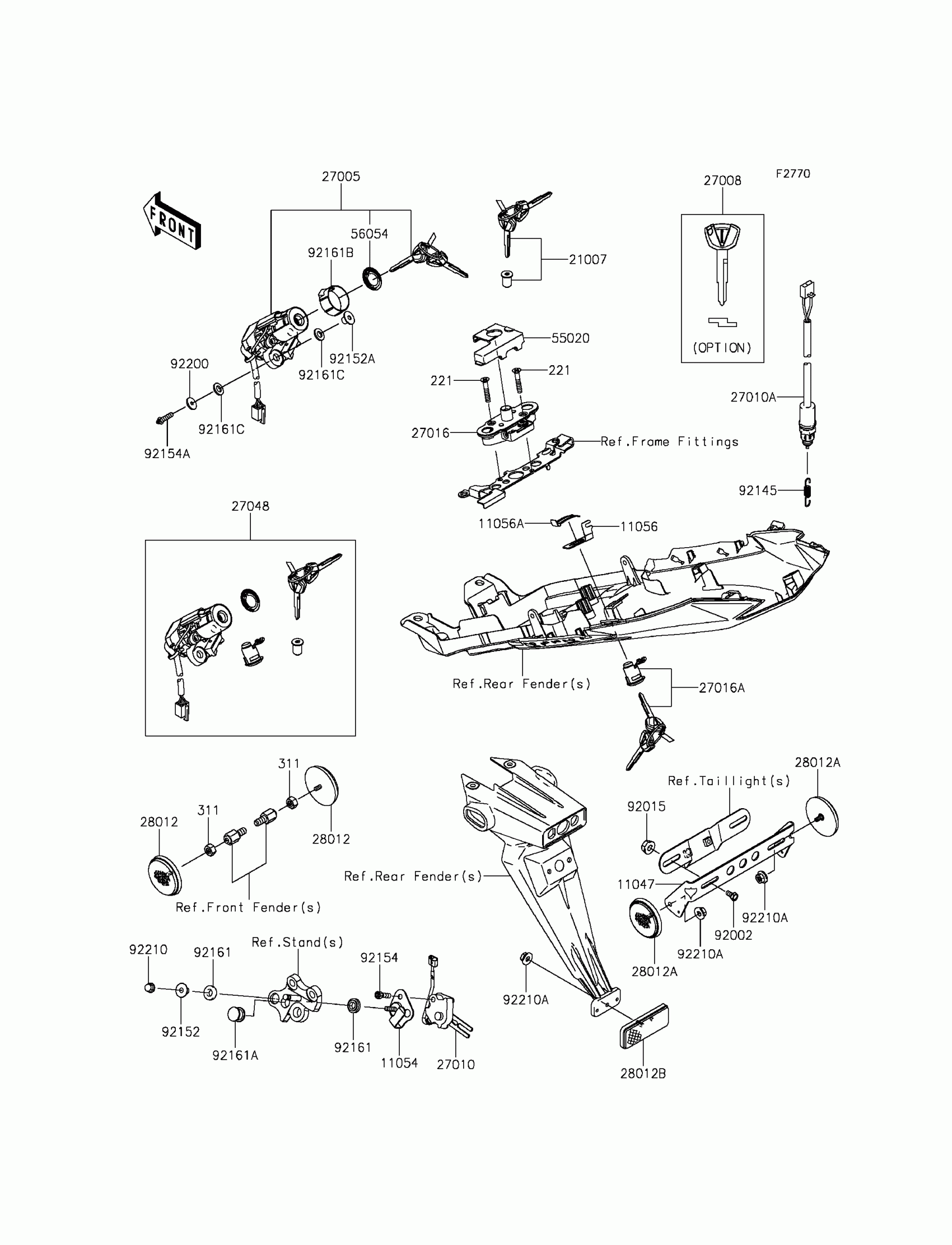

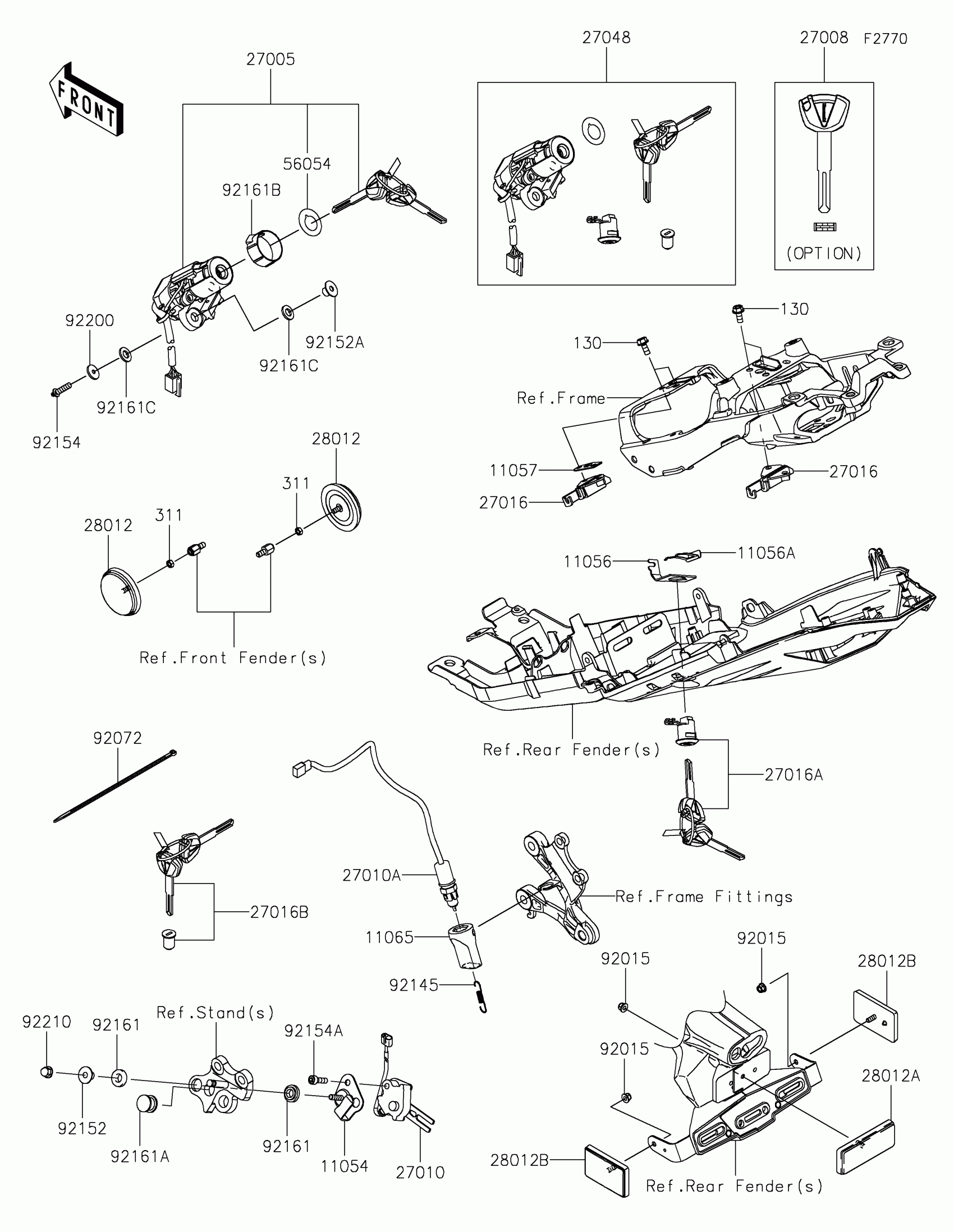

Kawasaki Ninja® ZX™-6R ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

221

SCREW-CSK-CROS,6X35

221AB0635

$1.17

311

NUT-HEX,5MM

311AB0500

$0.46

11047

BRACKET,REFLECTOR

11047-1470

$29.64

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$10.83

11056

BRACKET

11056-0237

$3.36

11056A

BRACKET,CLASP

11056-0238

$4.53

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0568

$178.58

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-0741

$118.06

27010A

SWITCH,REAR BRAKE

27010-1479

$26.58

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$65.38

27016A

LOCK-ASSY,SEAT

27016-5373

$92.15

27048

SWITCH-ASSY

27048-5023

$410.42

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

55020

GUARD,SEAT STRIKER

55020-0483

$8.19

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92002

BOLT,6X12

92002-1132

$1.14

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$2.80

92152

COLLAR

92152-1074

$4.67

92152A

COLLAR,6.8X10X11.6

92152-1699

$3.93

92154

BOLT,SOCKET,6X22

92154-0031

$1.54

92154A

BOLT,TORX,6X24

92154-1129

$3.13

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-0118

$2.36

92161B

DAMPER

92161-1506

$4.97

92161C

DAMPER,10X17X3

92161-1507

$1.87

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,FLANGED,5MM

92210-0007

$1.90
