2015 Kawasaki Ninja® ZX™-6R ABS Generator Diagram

← All diagrams

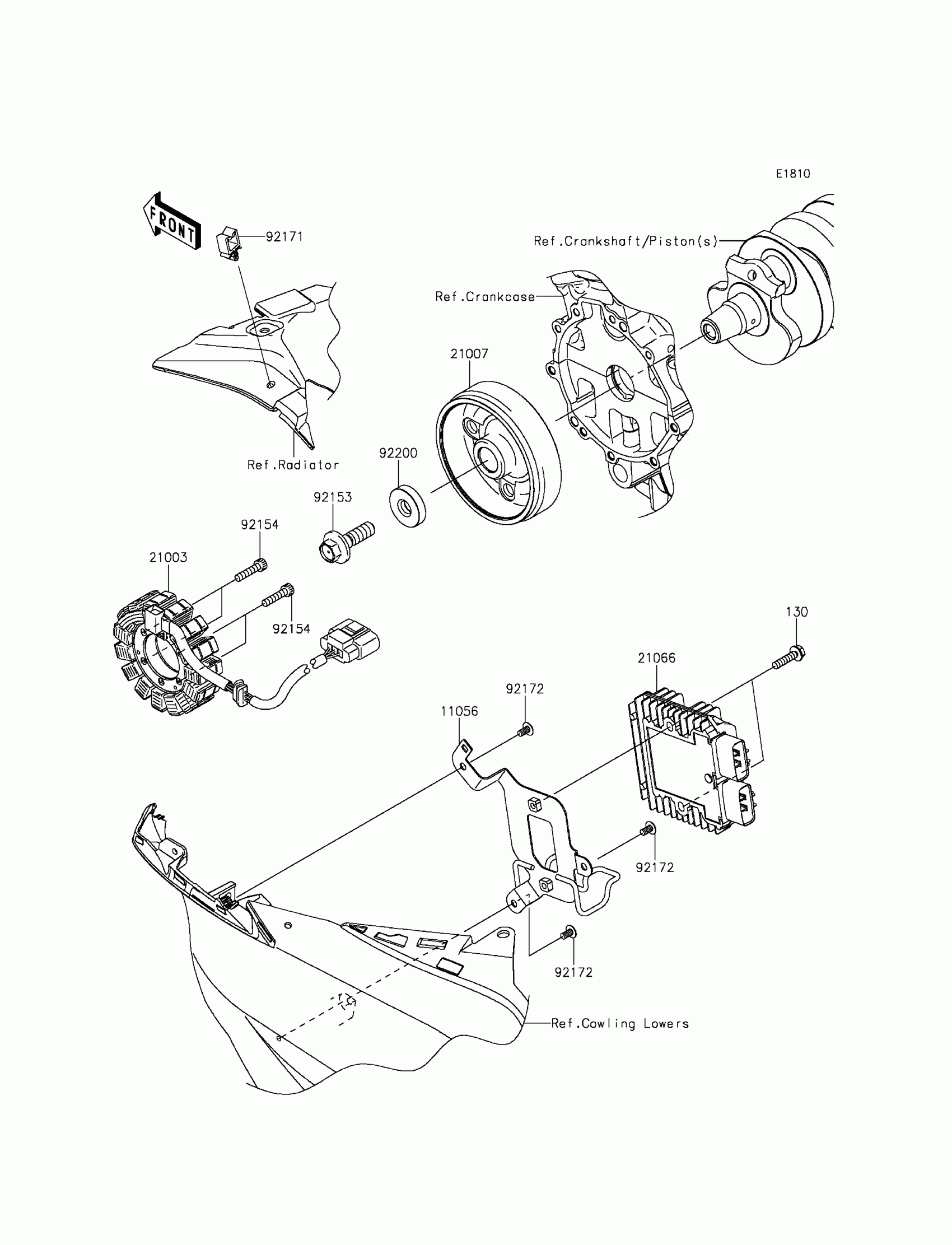

Find the part on the Generator diagram for your 2015 Kawasaki Ninja® ZX™-6R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki Ninja® ZX™-6R ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

11056

BRACKET,REGULATOR

11056-2283

1
Out of stock

21003

STATOR

21003-0107

1
Out of stock

21007

ROTOR

21007-0123

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0716

1
Out of stock

92153

BOLT,12X40

92153-1855

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0477

1
Out of stock

92171

CLAMP

92171-0290

1

$3.29

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,12X36X8

92200-1249

1
Out of stock
