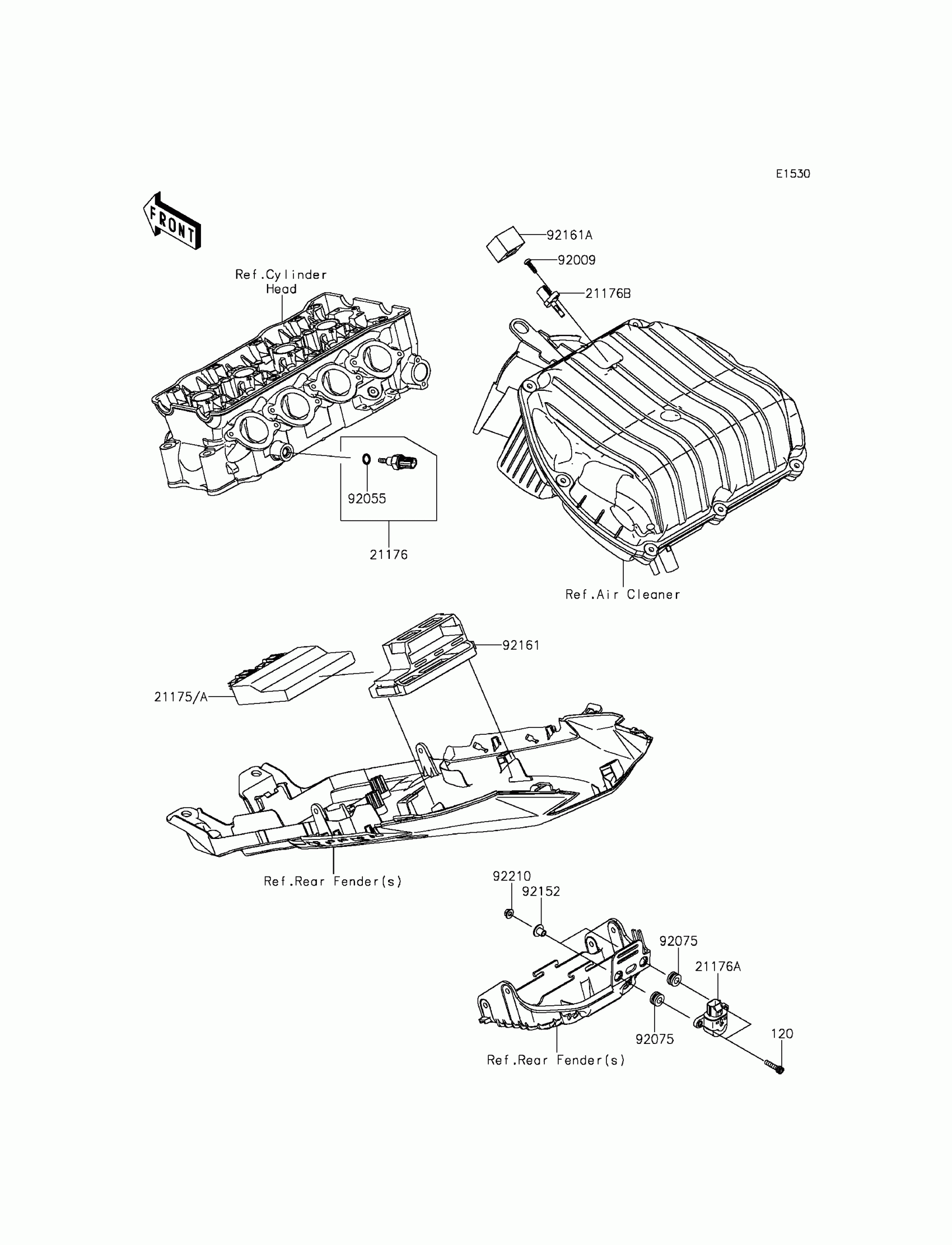

Kawasaki NINJA® ZX™-6R ABS Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1916

$1,071.80

21175A

CONTROL UNIT-ELECTRONIC

21175-1917

$1,071.80

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,OXYGEN

21176-0933

$235.01

39156

PAD

39156-2846

$2.78

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92161

DAMPER

92161-0356

$25.46

92161A

DAMPER

92161-1525

$6.63

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,5X25

130BA0525

$0.65
