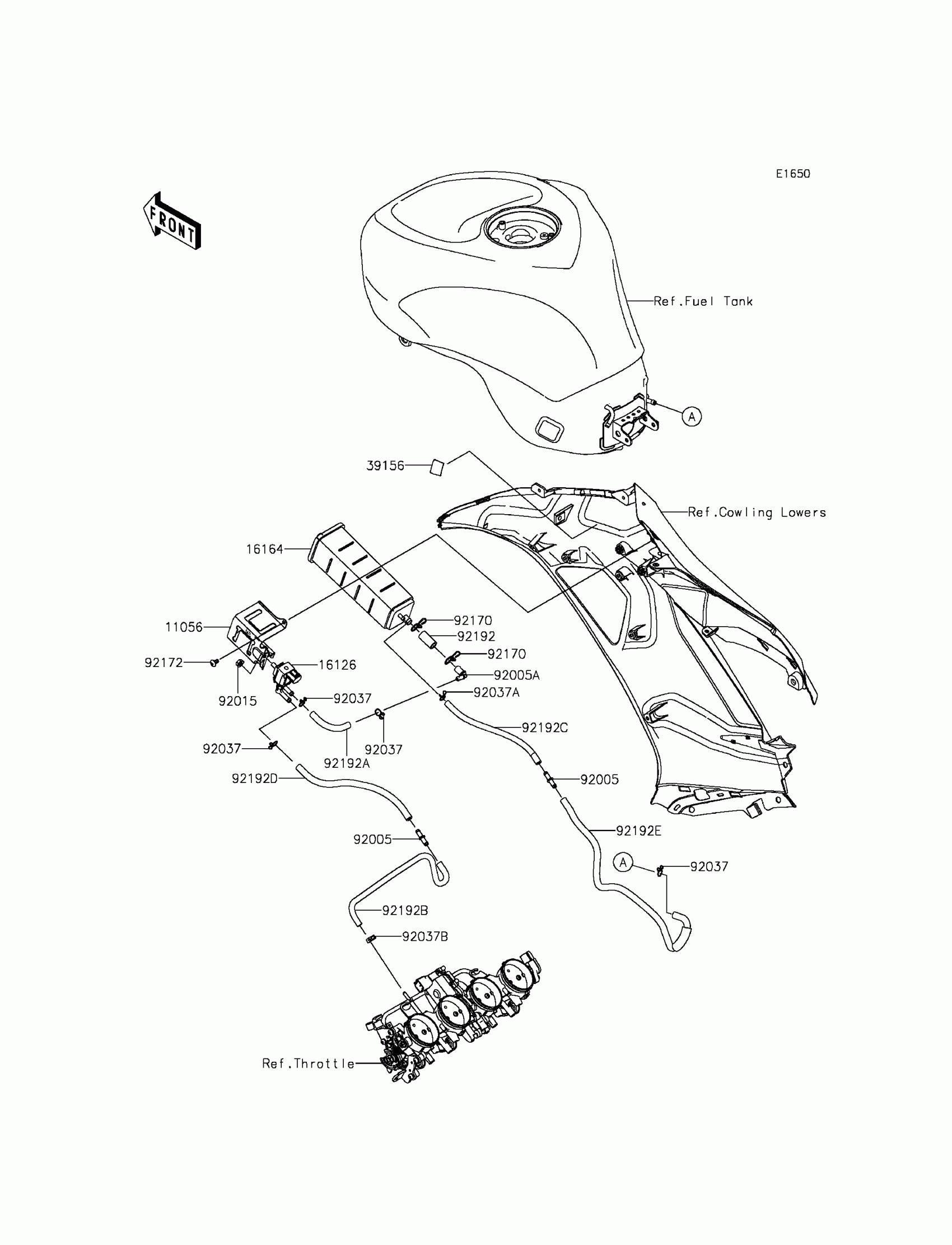

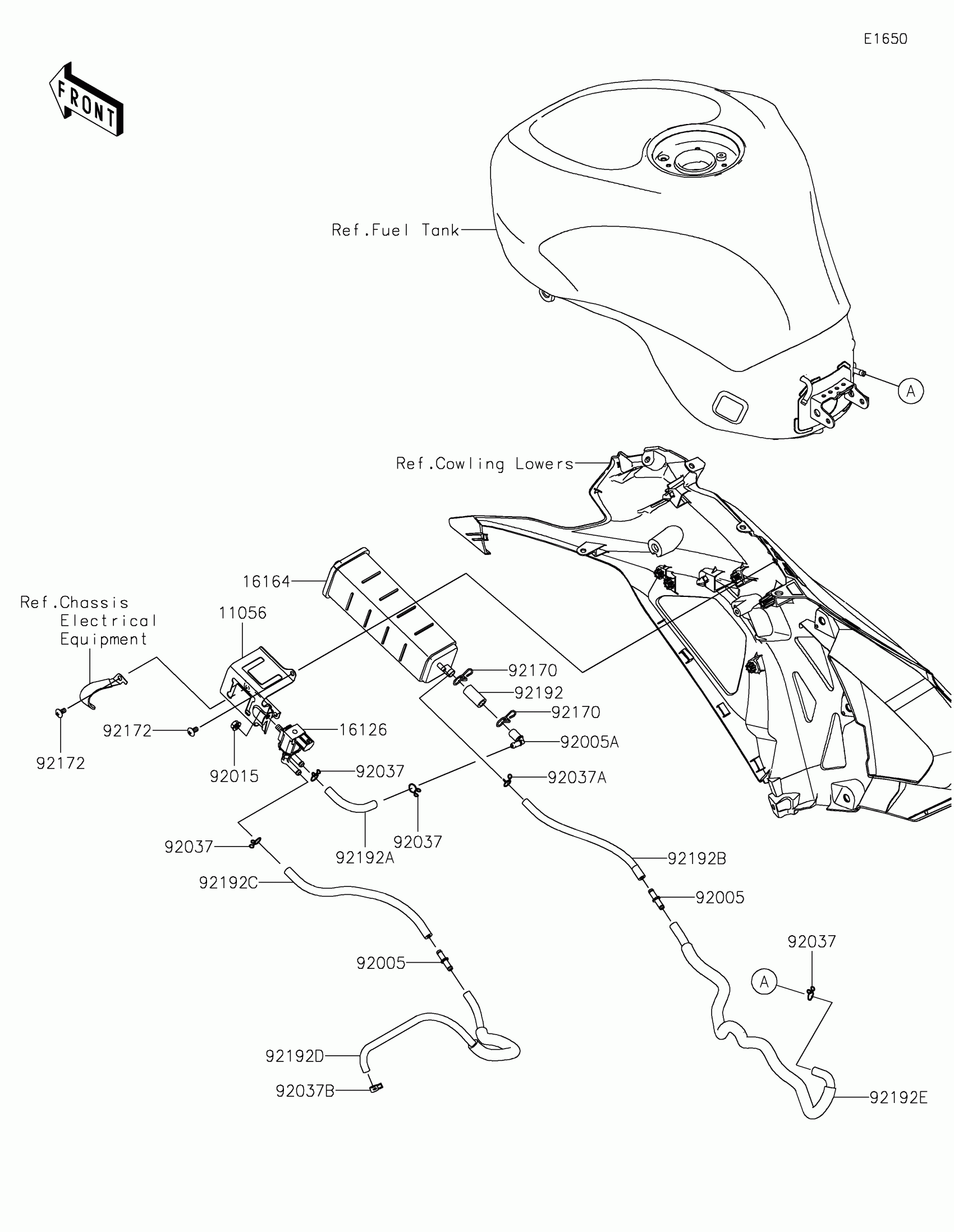

Kawasaki NINJA® ZX™-6R ABS Fuel Evaporative System(CA) Diagram

Description

Price

11056

BRACKET,CANISTER

11056-2018

$12.92

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0009

$137.47

92005

FITTING

92005-0721

$9.09

92005A

FITTING

92005-0753

$5.01

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1712

$5.00

92037B

CLAMP,7.8MM

92037-2116

$1.39

92170

CLAMP

92170-1695

$2.78

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92192

TUBE,9X14.4X30

92192-2530

$17.97

92192A

TUBE,5X10.4X80

92192-2531

$20.74

92192B

TUBE,4X9.2X200

92192-2533

$40.80

92192C

TUBE,5X10.4X220

92192-2537

$34.06

92192D

TUBE,3.5X8.9X460

92192-2663

$61.12

92192E

TUBE,5X10.4X535

92192-2664

$71.22
