2015 Kawasaki Ninja® ZX™-6R ABS Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2015 Kawasaki Ninja® ZX™-6R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

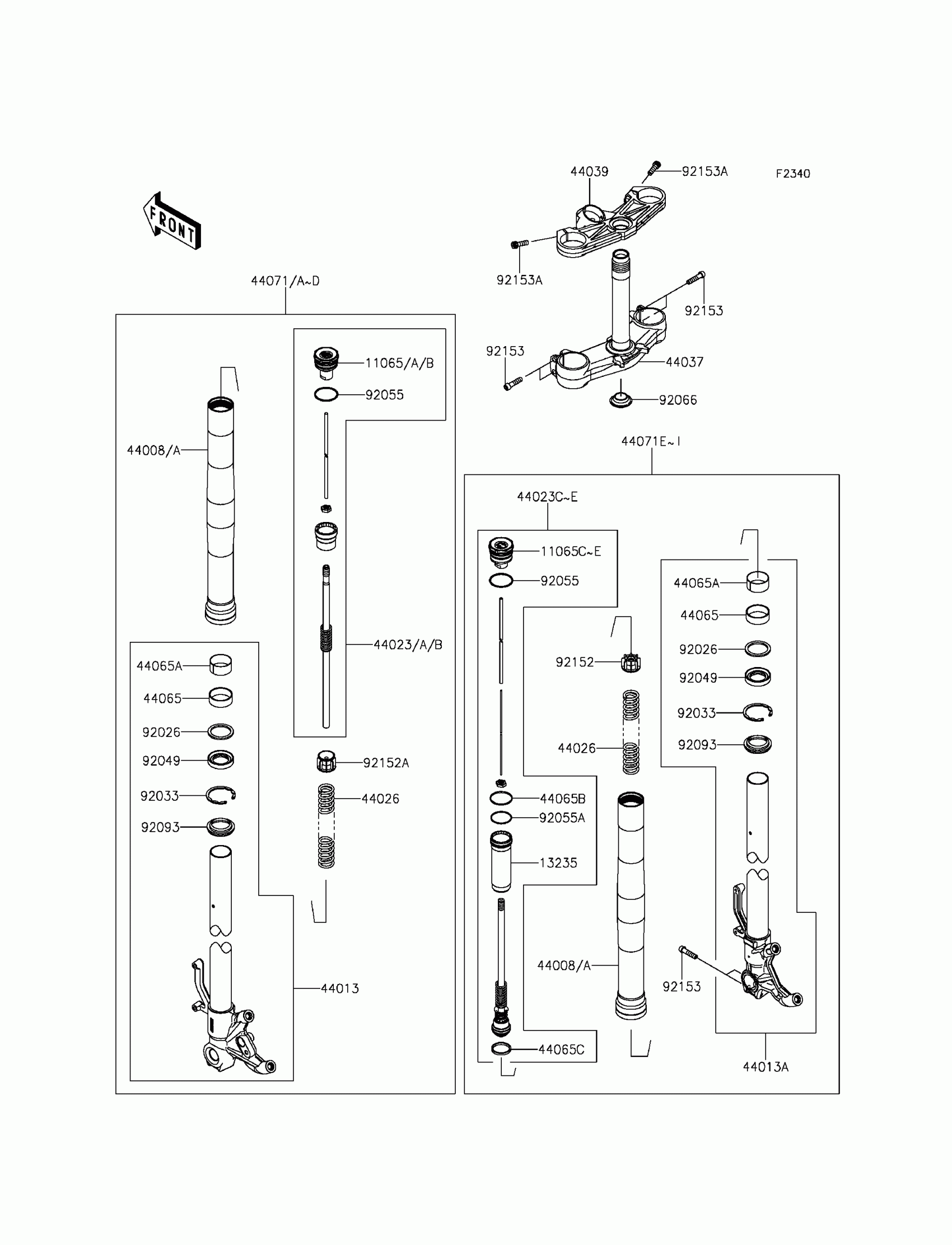

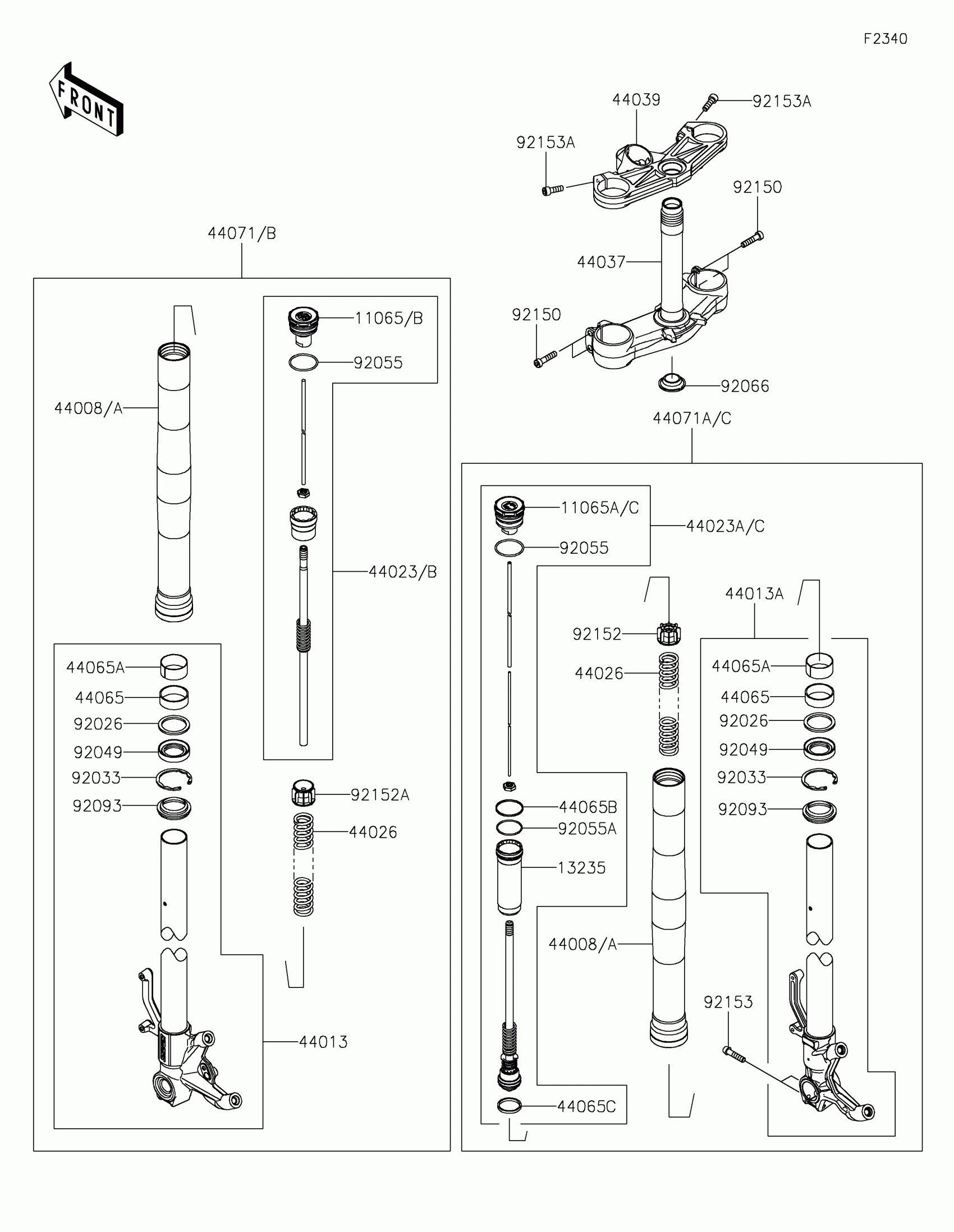

2015 Kawasaki Ninja® ZX™-6R ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065B

CAP,LH,G.B.GREEN

11065-0793-48W

1

$143.91

In stock

11065E

CAP,RH,G.B.GREEN

11065-0794-48W

1

$143.91

In stock

13235

GUIDE-COMP,ROD

13235-0008

1

$93.48

In stock

44008A

PIPE-FORK OUTER,A.BLACK

44008-0063-499

1

$396.68

In stock

44013

PIPE-FORK INNER,LH

44013-0206

1

$603.20

In stock

44013A

PIPE-FORK INNER,RH

44013-0207

1

$577.51

In stock

44023B

1

$348.54

In stock

44023E

1

$663.09

In stock

44026

SPRING-FRONT FORK

44026-0174

1

$73.99

In stock

44037

HOLDER-FORK UNDER

44037-0136

1

$750.13

In stock

44039

HOLDER-FORK UPPER,A.BLACK

44039-0123-499

1

$327.89

In stock

44065

1

$19.06

In stock

44065A

1

$19.06

In stock

44065B

BUSHING-FRONT FORK

44065-0033

1

$5.99

In stock

44065C

BUSHING-FRONT FORK

44065-0045

1

$8.58

In stock

44071D

1

$1,189.76

In stock

44071I

1

$1,336.96

In stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-0729

1

$6.19

In stock

92049

SEAL-OIL

92049-0125

1
Out of stock

92055

RING-O

92055-0142

1

$3.11

In stock

92055A

RING-O

92055-0174

1

$2.95

In stock

92066

PLUG

92066-0032

1

$11.19

In stock

92093

SEAL,DUST

92093-0035

1

$23.33

In stock

92152

COLLAR

92152-0757

1

$15.47

In stock

92152A

COLLAR

92152-1888

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92153A

BOLT,SOCKET,8X25

92153-1625

1

$3.69

In stock
