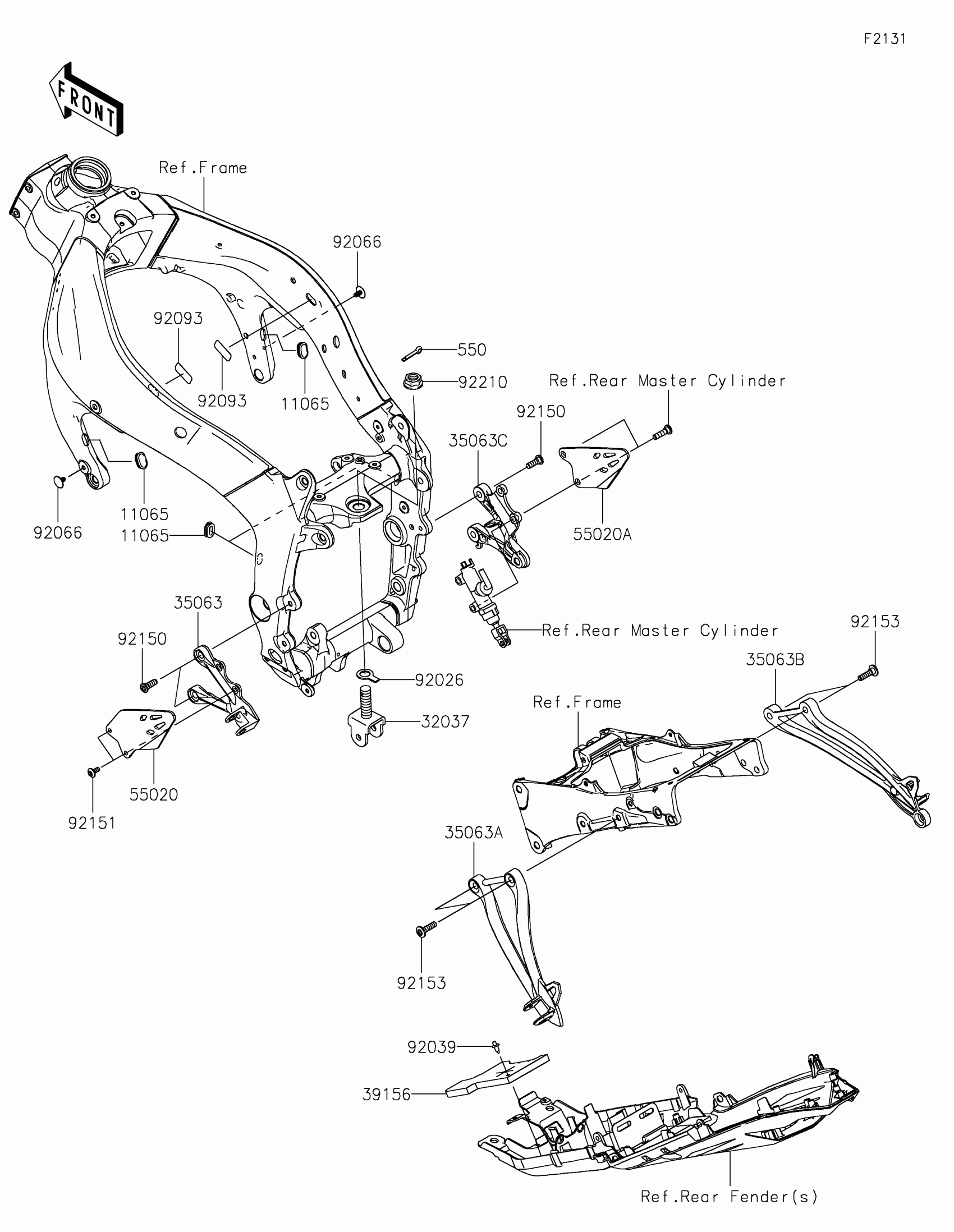

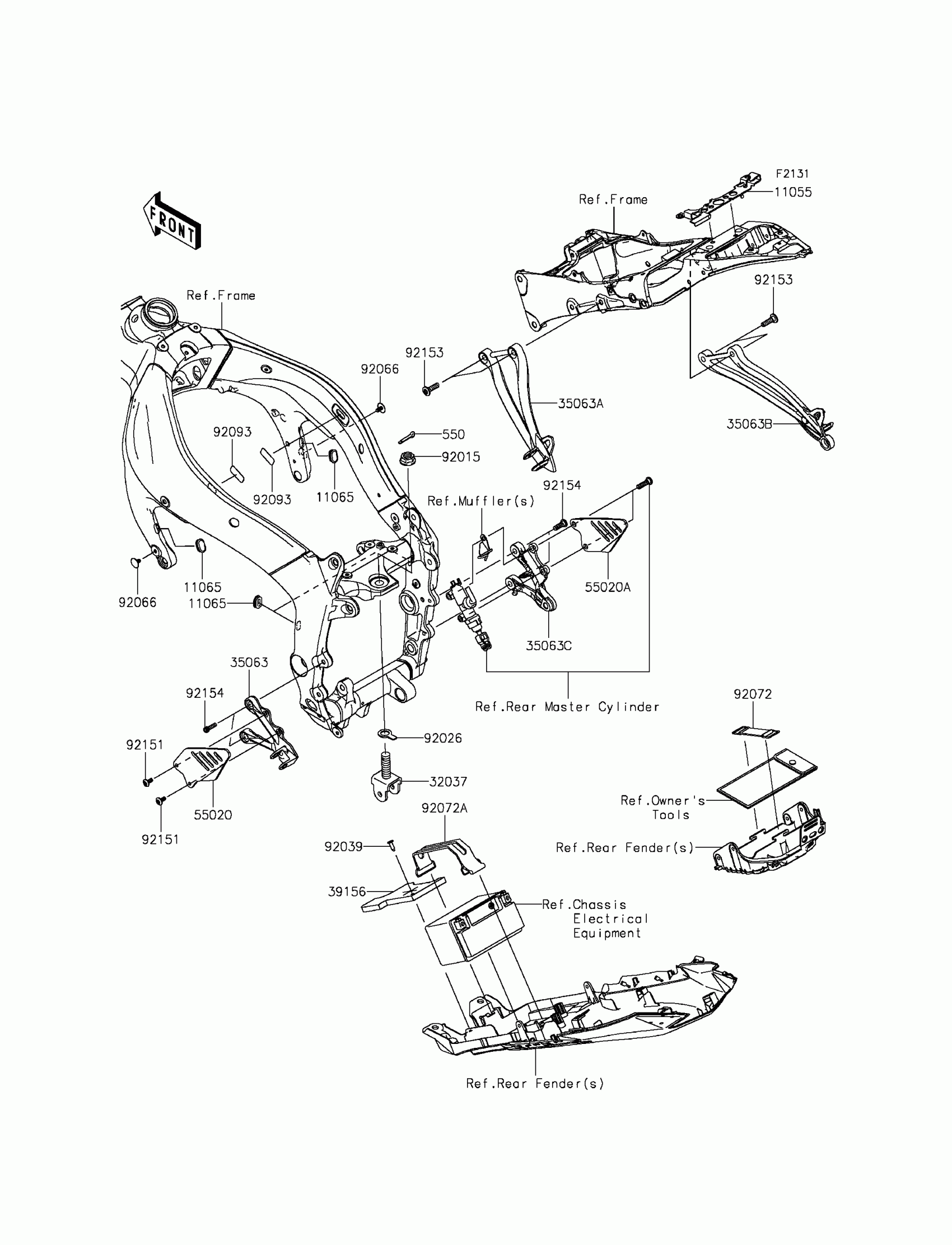

Kawasaki Ninja® ZX™-6R ABS Frame Fittings Diagram

Description

Price

550

PIN-COTTER,3X25

550S3025

$2.58

11055

BRACKET,HELMET HOLDER

11055-1011

$31.86

11065

CAP

11065-0095

$3.87

32037

BRACKET-SHOCKABSORBER

32037-1887

$27.33

35063

STAY,FR,LH,F.S.BLACK

35063-0160-18R

$128.54

35063A

STAY,RR,LH,F.S.BLACK

35063-0444-18R

$148.68

35063B

STAY,RR,RH,F.S.BLACK

35063-0445-18R

$148.68

35063C

STAY,FR,RH,F.S.BLACK

35063-0590-18R

$124.32

39156

PAD

39156-1000

$11.88

55020

GUARD,HEEL,LH

55020-0859

$41.60

55020A

GUARD,HEEL,RH

55020-0860

$41.60

92015

NUT,FLANGED,16MM

92015-1881

$23.10

92026

SPACER,16.5X26X2

92026-0747

$5.65

92039

RIVET

92039-0068

$2.97

92066

PLUG,6X17

92066-0751

$1.96

92072

BAND

92072-012

$7.34

92072A

BAND,L=168

92072-1306

$13.75

92093

SEAL

92093-0154

$3.67

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,SOCKET,8X30

92153-1630

$2.61

92154

BOLT,SOCKET,8X25

92154-1149

$4.41
