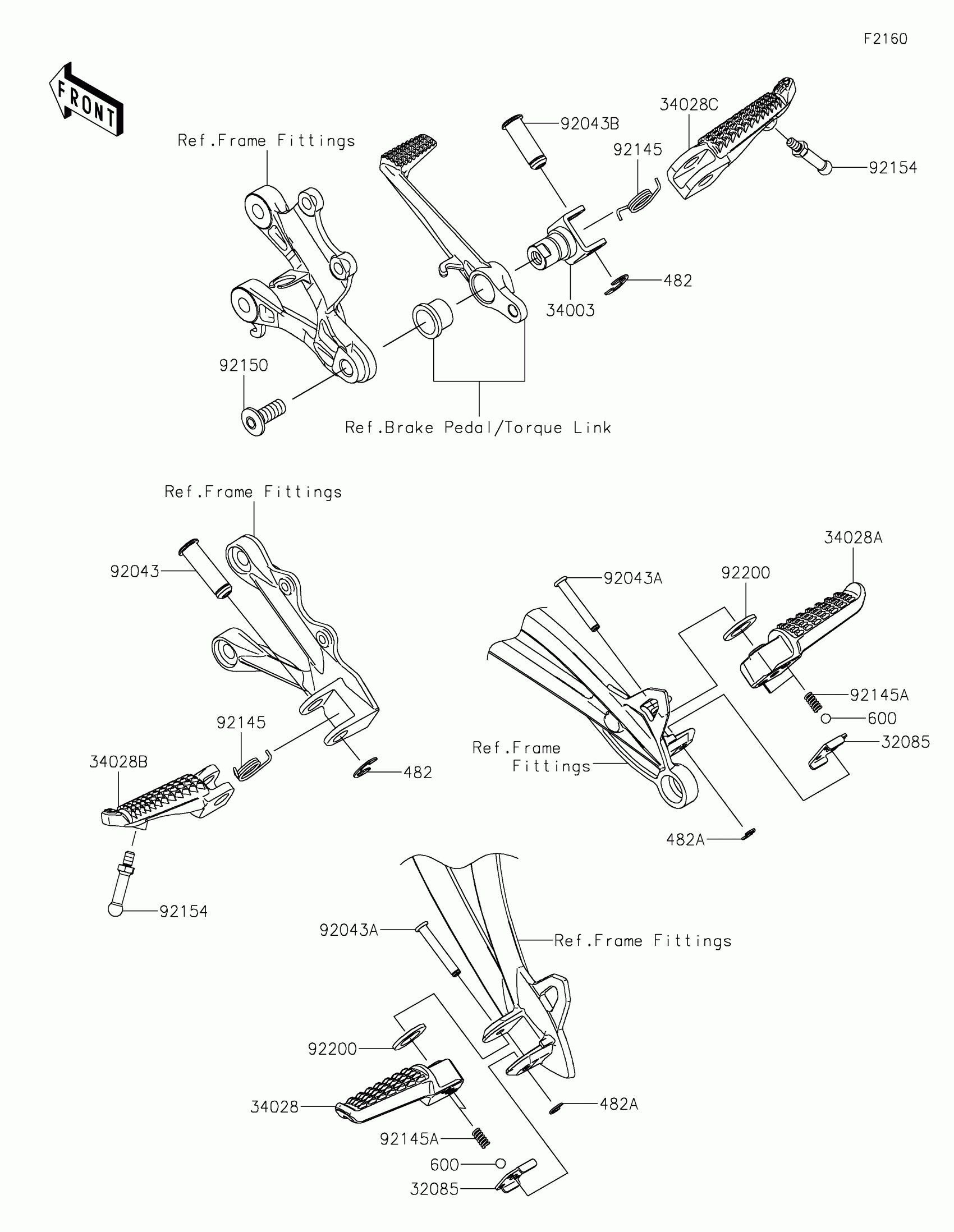

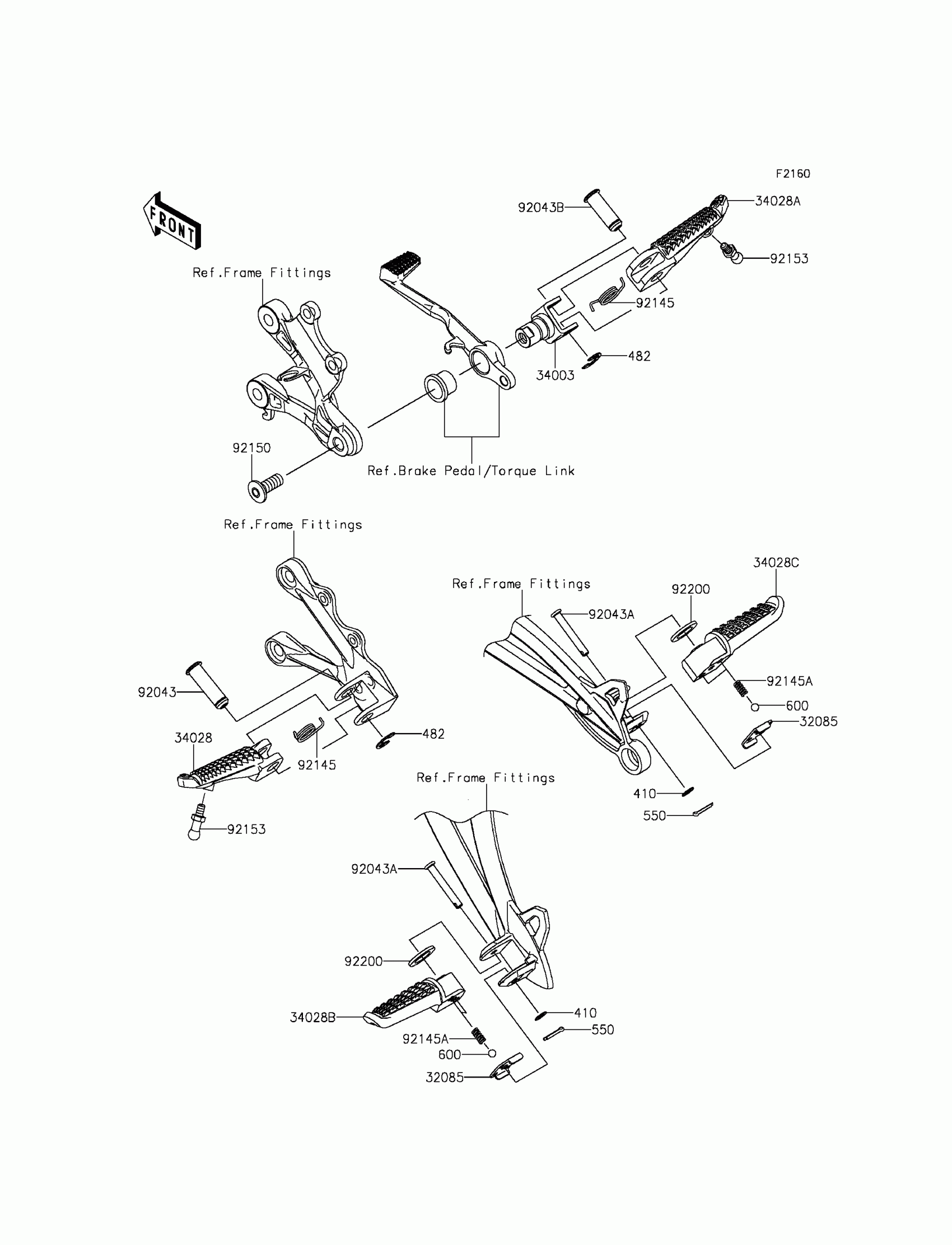

Kawasaki NINJA® ZX™-6R ABS Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34003

HOLDER-STEP,FR,RH

34003-0097

$40.25

34028

STEP,RR,LH

34028-0380

$79.46

34028A

STEP,RR,RH

34028-0381

$79.46

34028B

STEP,FR,LH

34028-0406

$88.64

34028C

STEP,FR,RH

34028-0407

$88.64

92043

PIN,12X36.5

92043-0028

$8.86

92043A

PIN,6X40

92043-1595

$2.34

92043B

PIN,12X35.5

92043-1701

$9.07

92145

SPRING,STEP RETURN

92145-0376

$3.87

92145A

SPRING

92145-1319

$1.81

92150

BOLT,SOCKET,10X25

92150-1268

$6.22

92154

BOLT,BANK SENSOR

92154-1186

$6.72

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62
