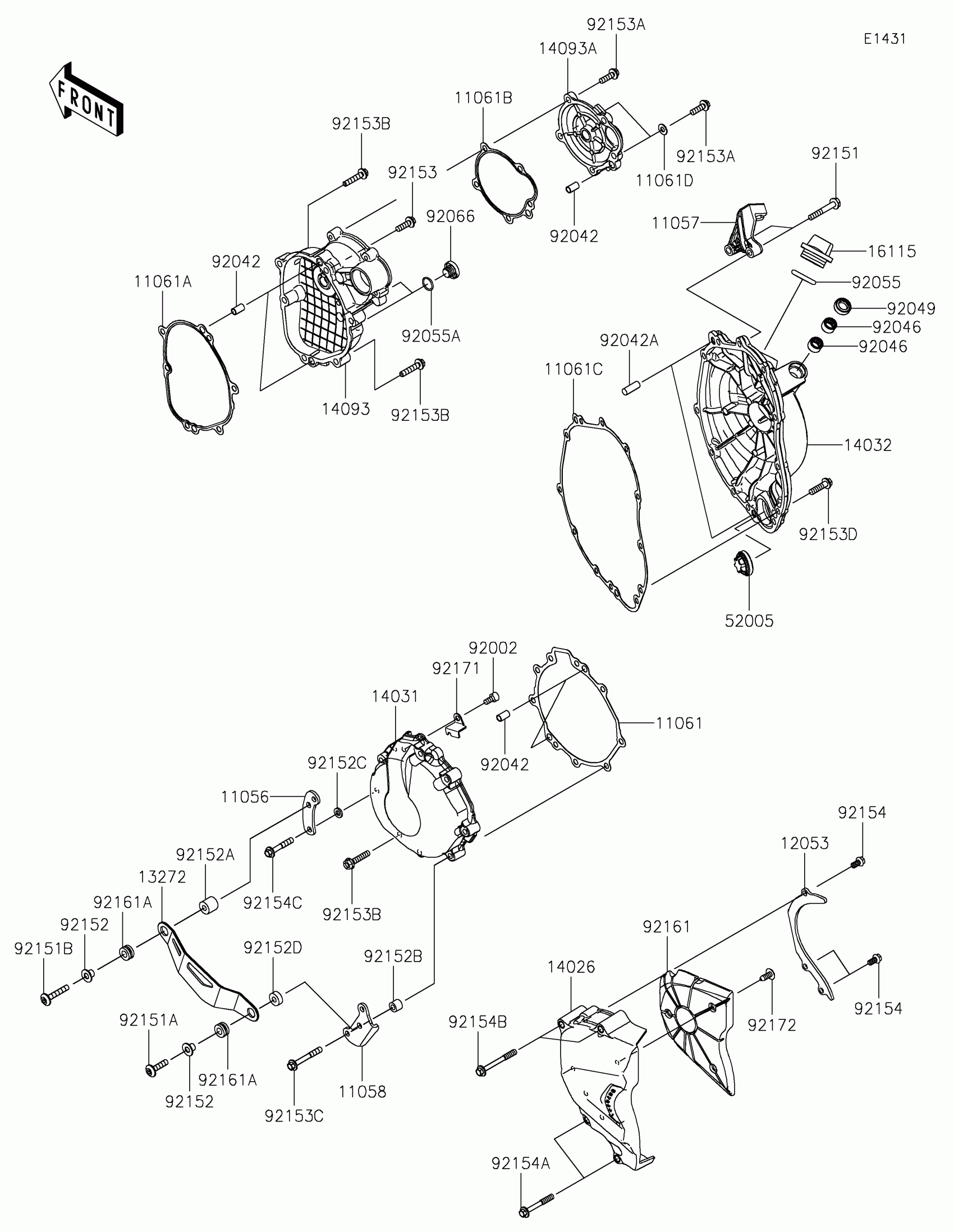

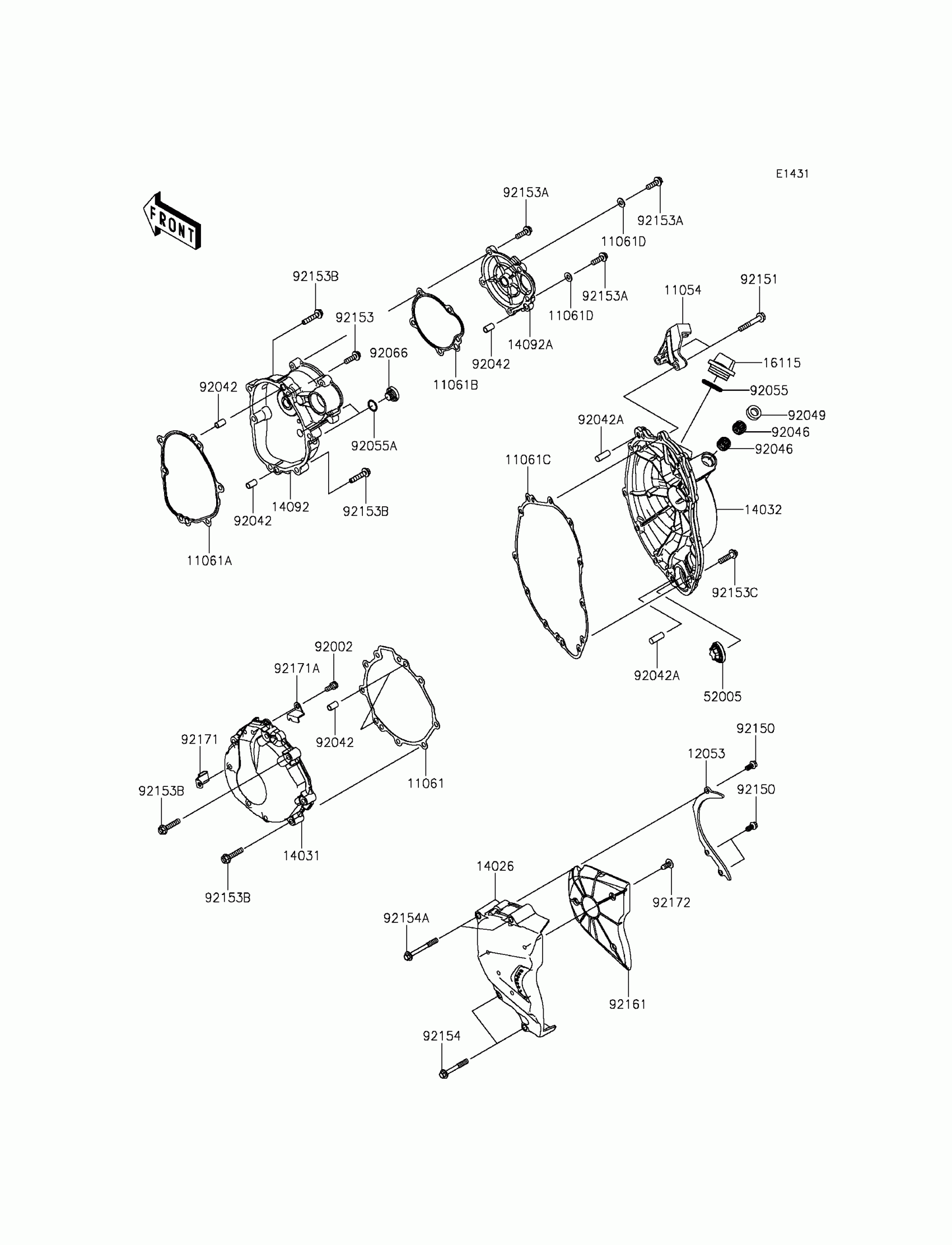

Kawasaki Ninja® ZX™-6R ABS Engine Cover(s) Diagram

#

Description
Price

11054

BRACKET,CLUTCH CABLE HOLDER

11054-1212

$55.77

11061

GASKET,GENERATOR COVER

11061-0249

$13.48

11061A

GASKET,LARGE COVER

11061-0250

$16.72

11061B

GASKET,SMALL COVER

11061-0251

$13.48

11061C

GASKET,CLUTCH COVER

11061-0252

$26.91

11061D

GASKET,6.2X13.5X1.0

11061-0262

$2.13

12053

GUIDE-CHAIN

12053-0109

$13.48

14026

COVER-CHAIN

14026-0104

$81.31

14031

COVER-GENERATOR

14031-0571

$186.30

14032

COVER-CLUTCH

14032-0572

$280.77

14092

COVER,STARTER,LARGE

14092-0998

$264.68

14092A

COVER,STARTER,SMALL

14092-0999

$213.60

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE

52005-1120

$22.80

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92042A

PIN,DOWEL,8X22

92042-044

$5.52

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,ID=13.8

92055-1141

$3.92

92066

PLUG,TIMING HOLE

92066-0067

$13.48

92150

BOLT,FLANGED-SMALL,6X12

92150-1841

$4.31

92151

BOLT,FLANGED,6X40

92151-1583

$2.75

92153

BOLT,FLANGED,6X20

92153-1010

$2.15

92153A

BOLT,FLANGED,6X20

92153-1572

$1.78

92153B

BOLT,FLANGED,6X30

92153-1574

$2.15

92153C

BOLT,FLANGED,6X25

92153-1716

$1.78

92154

BOLT,FLANGED,6X45

92154-0102

$2.12

92154A

BOLT,FLANGED,6X55

92154-0103

$2.12

92161

DAMPER,CHAIN COVER

92161-1474

$24.59

92171

CLAMP

92171-0761

$8.68

92171A

CLAMP

92171-0938

$3.90

92172

SCREW,6X16

92172-0284

$1.34
