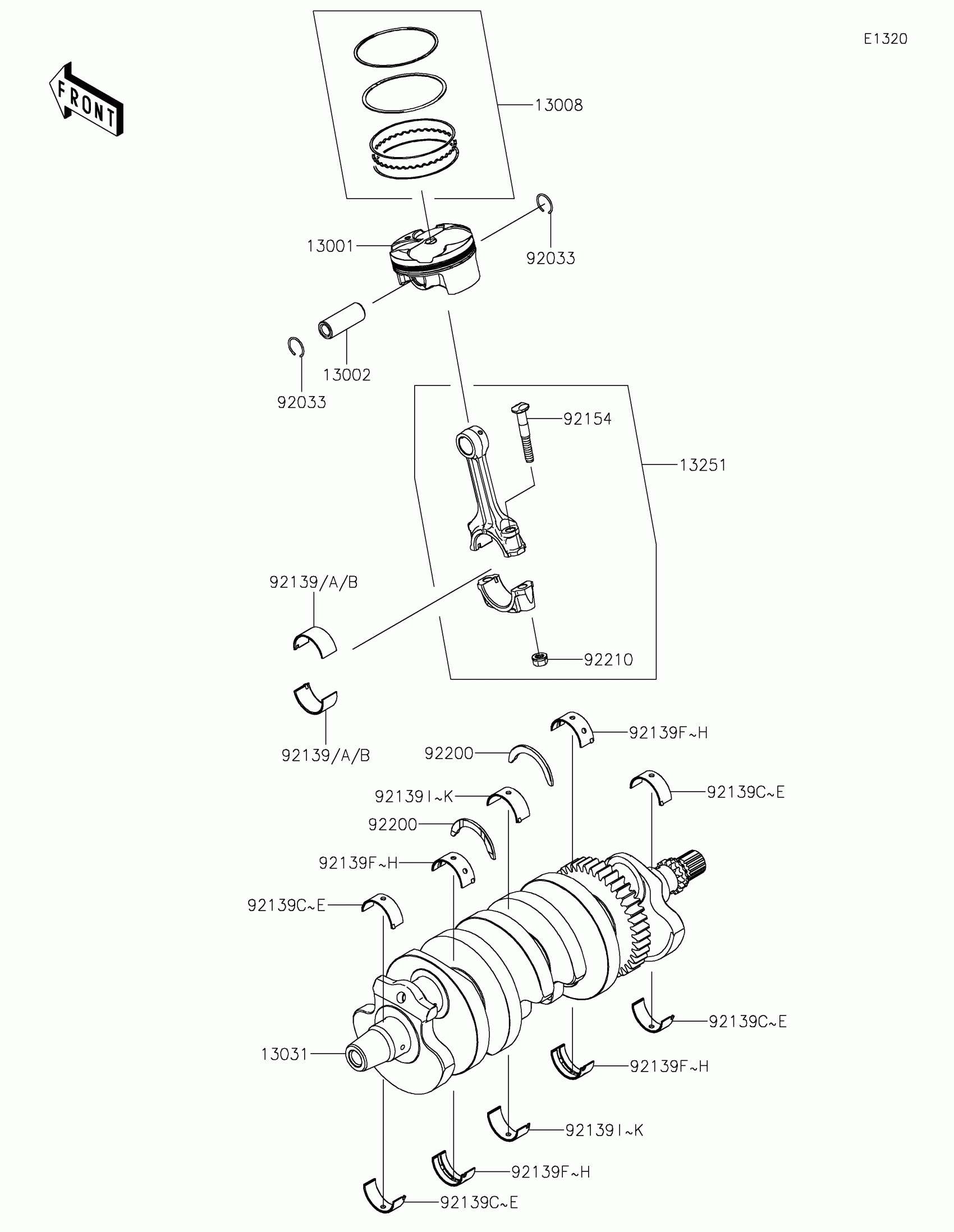

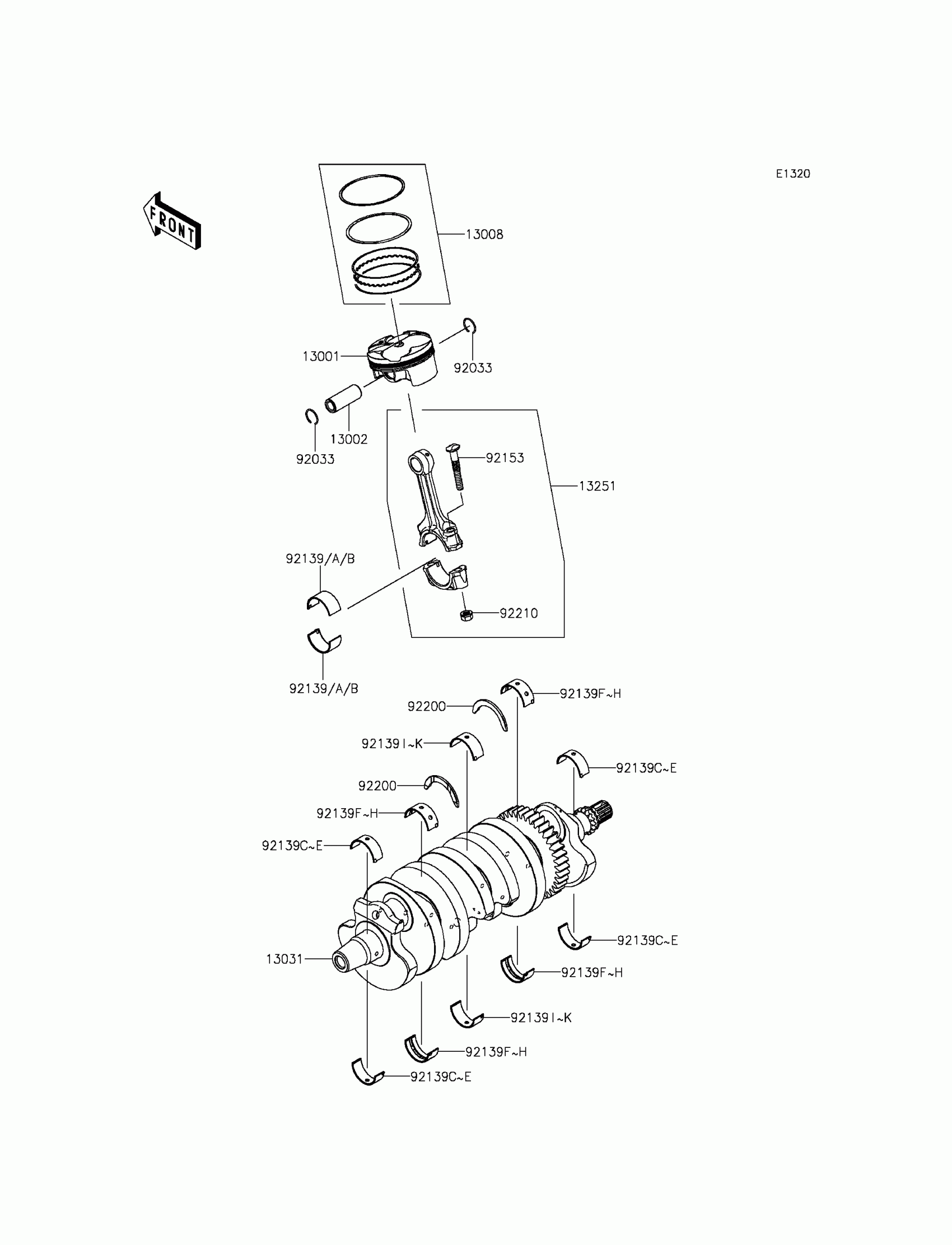

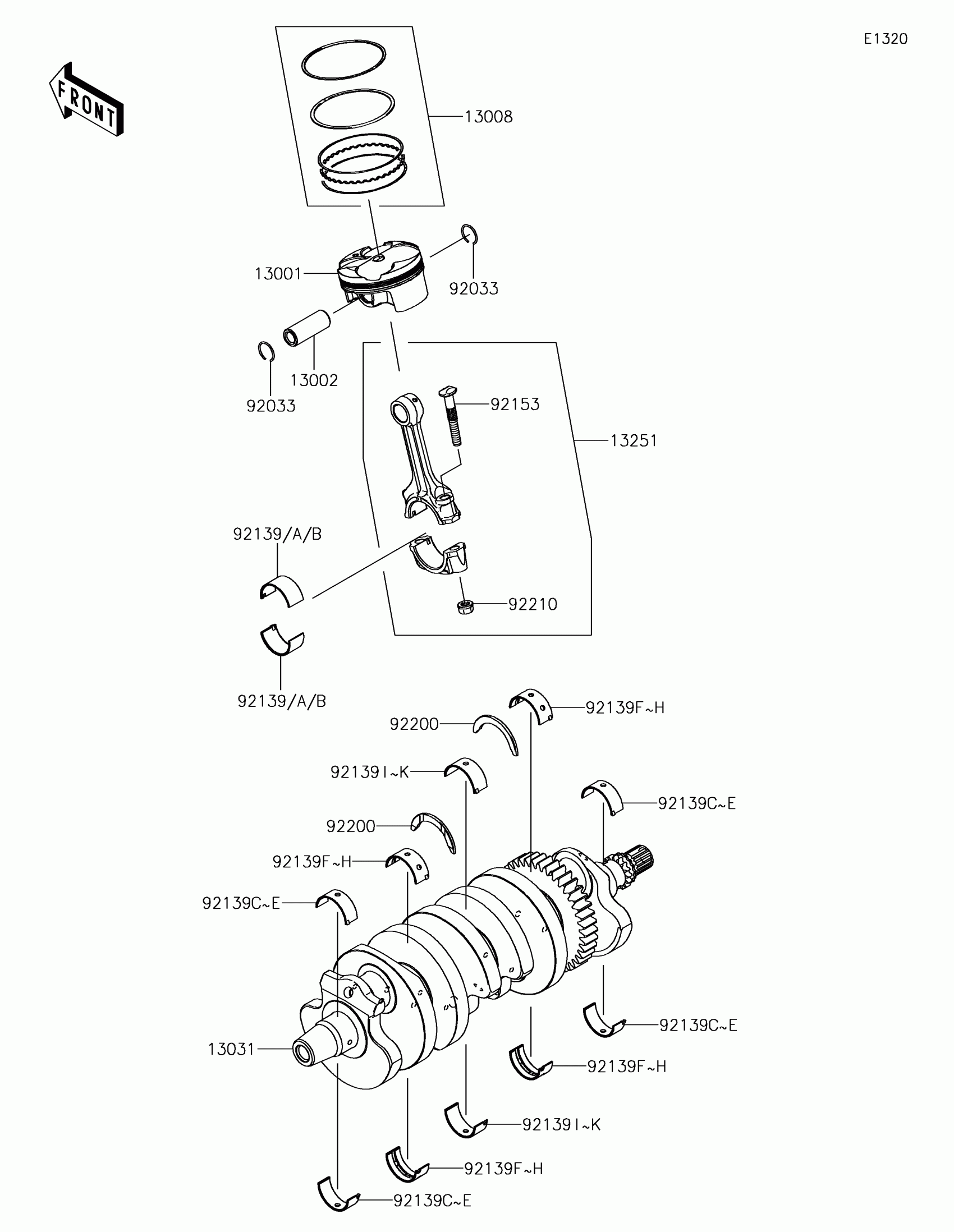

Kawasaki NINJA® ZX™-6R ABS Crankshaft/Piston(s) Diagram

#

Description
Price

13001

PISTON-ENGINE

13001-0735

$132.84

13002

PIN-PISTON

13002-0037

$33.85

13008

RING-SET-PISTON

13008-0035

$56.24

13031

CRANKSHAFT-COMP

13031-0957

$1,180.15

13251

ROD-ASSY-CONNECTING,I

13251-0717-II

$195.91

92033

RING-SNAP,PISTON PIN

92033-1151

$3.89

92139

BUSHING,CRANK PIN,BLUE

92139-0165

Unavailable

92139A

BUSHING,CRANK PIN,BLACK

92139-0166

$16.38

92139B

BUSHING,CRANK PIN,BROWN

92139-0167

Unavailable

92139C

BUSHING,CRANK #1,BLUE

92139-0245

Unavailable

92139D

BUSHING,CRANK #1,BLACK

92139-0246

$28.46

92139E

BUSHING,CRANK #1,BROWN

92139-0247

Unavailable

92139F

BUSHING,CRANK #2,BLUE

92139-0248

Unavailable

92139G

BUSHING,CRANK #2,BLACK

92139-0249

$28.46

92139H

BUSHING,CRANK #2,BROWN

92139-0250

Unavailable

92139I

BUSHING,CRANK #3,PURPLE

92139-0251

Unavailable

92139J

BUSHING,CRANK #3,GREEN

92139-0252

$28.46

92139K

BUSHING,CRANK #3,YELLOW

92139-0253

Unavailable

92154

BOLT,7MM

92154-7075

$2.78

92200

WASHER,T=2.5

92200-0383

$10.30

92210

NUT,CONNECTING ROD,7MM

92210-0384

$6.75
