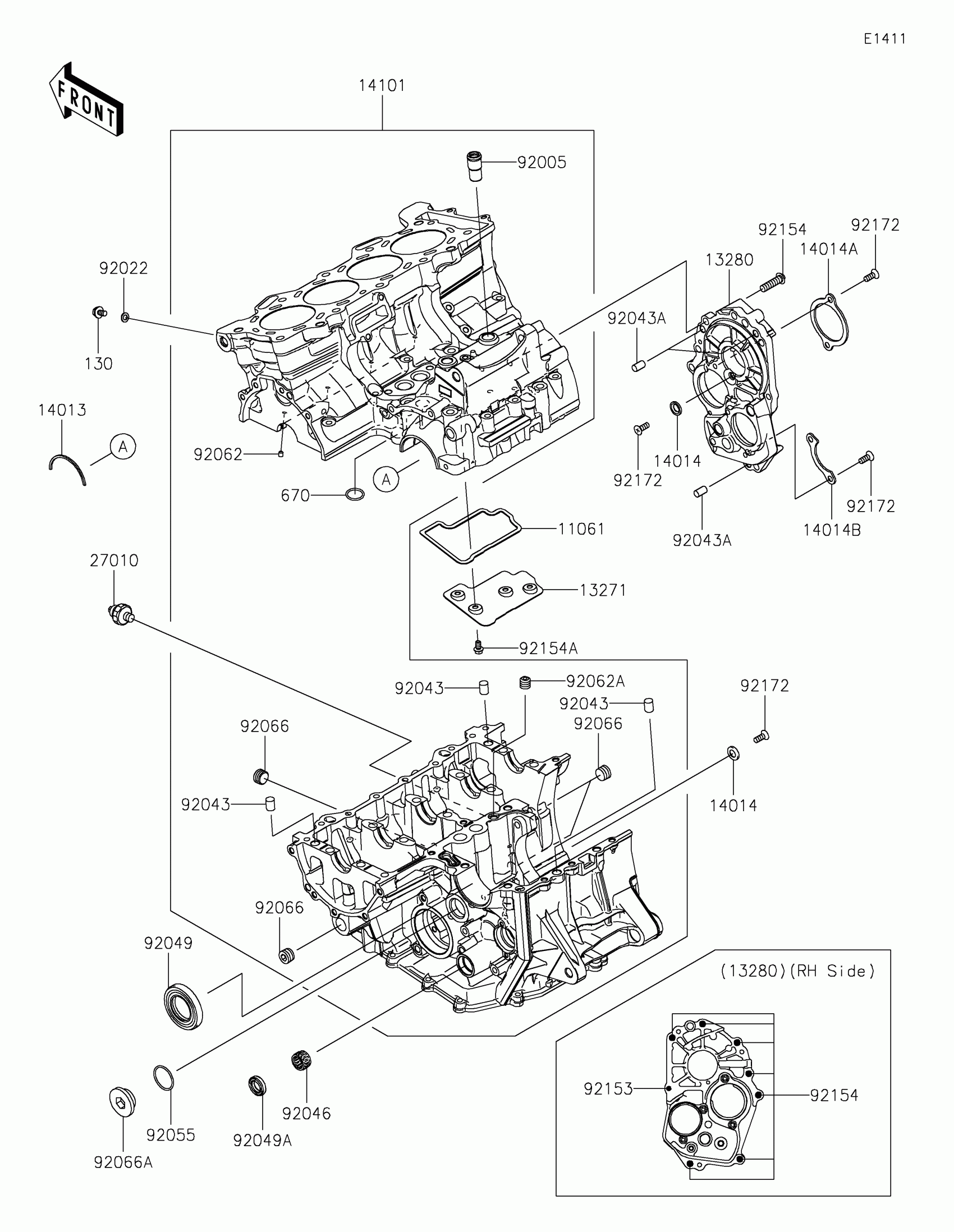

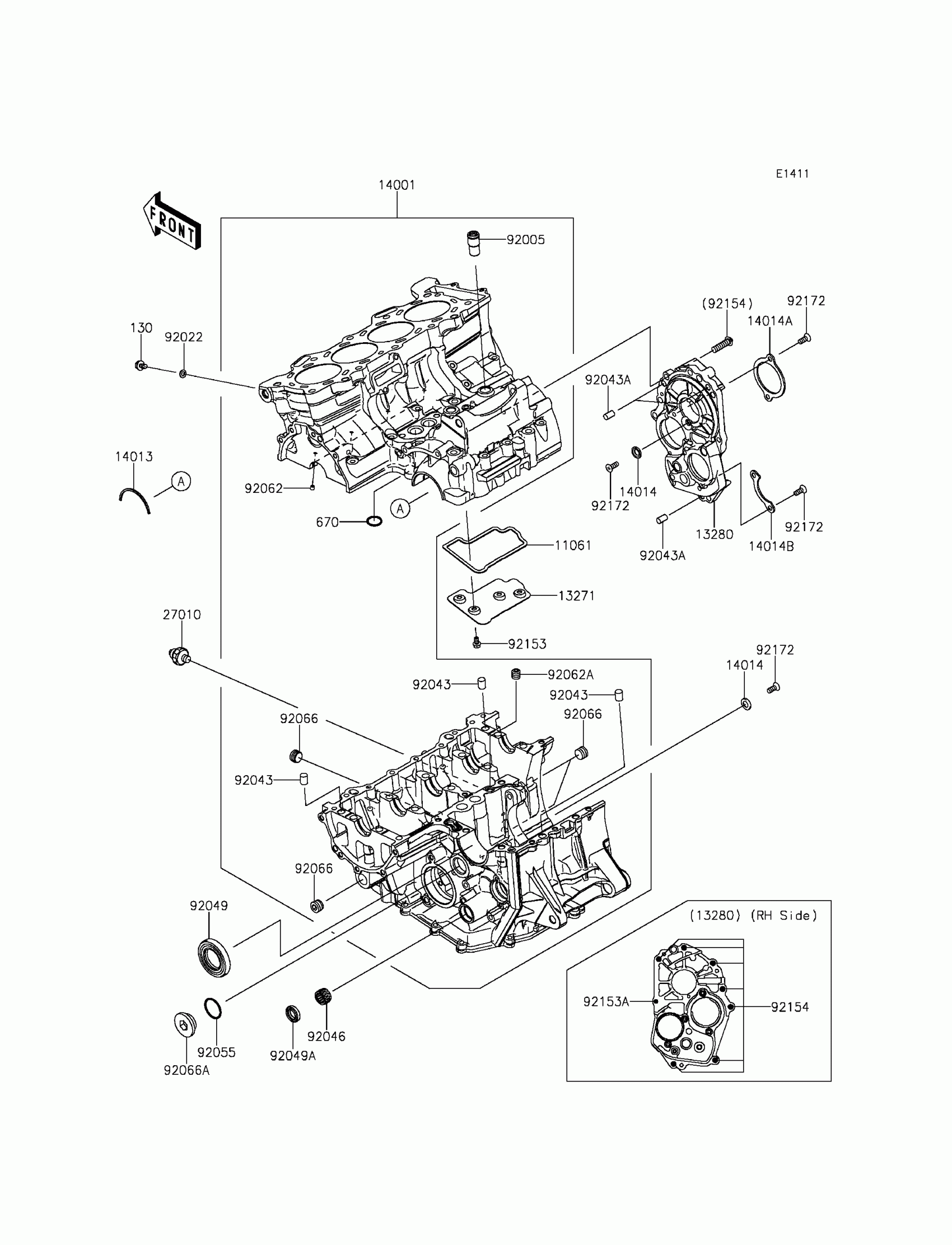

Kawasaki Ninja® ZX™-6R ABS Crankcase Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130BD0610

$3.67

670

O RING,18MM

670D2018

$1.91

11061

GASKET,BREATHER ROOM

11061-0291

$10.21

13271

PLATE,BREATHER ROOM

13271-0795

$5.65

13280

HOLDER,TRANSMISSION

13280-0305

$224.54

14001

SET-CRANKCASE

14001-0611

$1,804.22

14013

RING-POSITION

14013-1051

$3.96

14014

PLATE-POSITION,9.5X17X2.3

14014-0019

$3.90

14014A

PLATE-POSITION

14014-0029

$8.68

14014B

PLATE-POSITION

14014-0030

$5.65

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

92005

FITTING,BREATHER

92005-1238

$11.29

92022

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,10X14

92043-1506

$3.32

92043A

PIN,8X14

92043-1567

$2.26

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$17.22

92049

SEAL-OIL,TC32578

92049-1474

$18.44

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92055

RING-O,27.7X2.4

92055-091

$6.22

92062

NOZZLE

92062-0019

$5.15

92062A

NOZZLE

92062-1056

$5.00

92066

PLUG,PT3/8X10

92066-0003

$3.31

92066A

PLUG,25X8

92066-1161

$10.56

92153

BOLT,6X10

92153-0381

$2.80

92153A

BOLT,TORX,6X25

92153-1640

$2.61

92154

BOLT,TORX,8X28

92154-0415

$2.67

92172

SCREW,6X16

92172-0090

$2.80
